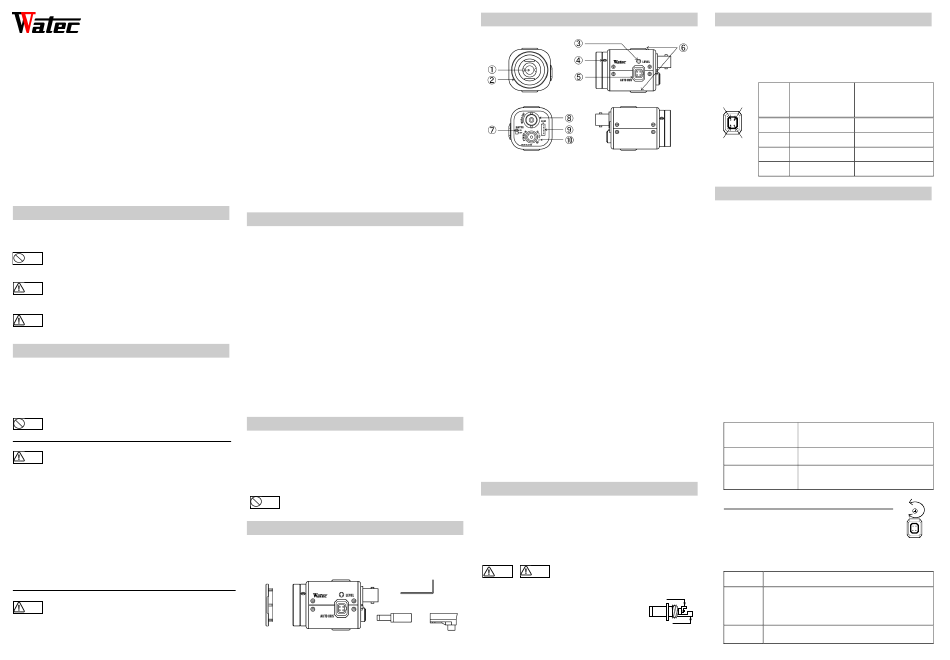

Color CCD Camera
WAT-241
Operation Manual
This Operation Manual covers safety, camera functions, installation
and the correct operating procedure for the WAT-241. First, we ask
you to read this Operation Manual thoroughly, then install and operate
the WAT-241 as advised. In addition, for future reference, we also
advise safekeeping of this manual.
Please contact the distributor or dealer from which the WAT-241 was
purchased, if you do not understand the installation, operation or
safety instructions laid out in this manual. Not understanding the
contents of the Operation Manual sufficiently may cause damage to
the camera.
Guide to the Safety Symbols
The definitions of the symbols used in this operation manual are:
When you do not adhere to or take notice of the "Danger"
Danger
sign, it may lead to a serious accident such as death or
injury caused by fire or electric shock.
When you do not adhere to or take notice of the "Warning"
Warning
sign, it may cause severe damage such as a physical
injury.
When you do not adhere to or take notice of the "Caution"
Caution
sign, it may incur injury and cause damage to peripheral
objects in the immediate surroundings.
Cautions for Safety
The WAT-241 is designed to be used safely; however, it may lead to a
physical accident caused by fire and electric shock if not used
correctly. Therefore, please keep and read the "Cautions for safety"
for protection against accidents.
Do not disassemble and/or modify the WAT-241.
•
Danger
Do not operate the WAT-241 with wet hands.
•
Use only the AD901-120/230 or equivalent power
•
Warning
adaptor for the WAT-241
The recommended voltage is DC+12V±10%.
Do not expose the WAT-241 to wetness or high
•
moisture conditions.
The WAT-241 is designed and approved for indoor use
only. The WAT-241 is not water-resistant or waterproof. If
the location of the camera is outdoors or in an outdoor
like environment, we recommend that you use an
outdoor camera housing.
Protect the WAT-241 from condensation.
•
Keep the WAT-241 dry at all times during storage and
operation.
Should the camera not work properly, switch off the
•
power immediately. Then check the camera according to
the "Problems and Trouble shooting" section.
Avoid the striking of hard objects or dropping the
•
Caution
WAT-241.
The WAT-241 uses high quality electrical parts and
precision components.
Do not connect any power supply directly to the
•
video out terminal of the unit.
Do not connect the WAT-241 with any monitor using a
video/power single transmission terminal. The WAT-241
is not designed for use with this type of equipment. We
also advise you to read the operation manual of the
monitor you plan to use before any connections are
made.
Do not install the WAT-241 in a position subject to
•
direct sunlight.
Sunlight shinning directly onto the WAT-241 lens can
cause damage to the CCD.
Select a stable place for installation of the WAT-241.
•
Use a support of durable strength around an installation
position on a ceiling or wall when a camera stand or
tripod is used.
Do not move the WAT-241 with the cables connected.
•
Before moving the WAT-241, always remove the video
cable and power cable from the rear of the camera first.
Avoid using the WAT-241 near any strong electro-
•
magnetic field.
After installing into main equipment, if the WAT-241 is
exposed to electromagnetic waves causing the
monitored image to become distorted, we recommend
the camera be shielded by appropriate protective casing.
Problems and Trouble Shooting
If any of the following problems occur when using the WAT-241,
An optimal picture cannot be obtained, after checking that all the
•
cables and connections are correctly in place
Smoke or any unusual odor emerges from the WAT-241
•
An object becomes embedded or a quantity of liquid seeps into the
•
camera housing
More than the recommended voltage or/and amperage has been
•
applied to the WAT-241 by mistake
Anything unusual occurring to any equipment connected to the
•
WAT-241
Disconnect the camera immediately according to the following
procedures:
①Switch off the main power supply to the camera.
②Remove the power and video cables connected to the WAT-241.
③Contact the distributor or dealer from which the WAT-241 was
purchased.
About EMC
The WAT-241 is in conformity with EMC test standards carried out by
authorized organizations in Japan.
NTSC
FCC Part15 class B
P A L
EN61000-6-3 / EN50130-4
Do not modify the WAT-241. A modified camera may not
Danger
conform to EMC test standards.
Contents
Using the contents figures below, check to make sure all parts are
present before use.
Hex. Wrench
Lens Mount Cap
WAT-241
DC Plug
Iris Connector
Description of Parts
①CCD FRONT FACE
・The light receiving face of the CCD camera
(Dirt, water or oil deposits on the CCD will cause an unclear picture
on the monitor. Attach the lens cap to protect the lens and the CCD
from contamination and damage.)
②LENS MOUNT
・Mount for the lens (CS-mount)
③IRIS LEVEL VOLUME
・By controlling the volume, the iris level of the DC iris lens can be
adjusted.
④FOCUSING ADJUSTMENT SCREWS
・There are 3 hex. adjustment screws each placed at intervals of
120゜for fine focusing of the lens.
⑤AUTO-IRIS SOCKET
・This socket is for the video/DC auto-iris lens cable connector.
(Video/DC: Auto selected by the camera)
⑥TRIPOD MOUNTING SCREW HOLES
・Mounting holes for stands. The size of these threads are 1/4", 20
threads, 4.5±0.2mm, which is the same as any standard camera
tripod (U1/4").
⑦AE MODE CONTROL
・The switch for the electronic shutter mode control.
⑧VIDEO OUT (BNC)
・The terminal for composite video signal output
⑨AVM CONNECTION TERMINAL
・Terminal for the connection of the Active Visual Mate.(See Options)
⑩POWER IN
・The terminal designed for connection with the DC-plug of the power
adaptor.
Power Supply
If any other power adaptor besides the AD901-120/230 is used,
please use a stabilized power adaptor designed for DC+12V±10%,
with a current capacity of more than 250mA.
Use the optional DC plug if the shape or polarity of the DC plug of the
power adaptor to be used is not compatible with the camera (See the
drawing on the right below).
Warning
Caution
The wiring on the connector must be exact.
Be careful no to touch the other terminal while
wiring. Protect the wiring portion by using
insulation tape after wiring. If the above care and
attention is not adhered to, damage to the
WAT-241 and power adaptor may occur and may
also cause fire.
Auto-iris Lens
Before connecting the auto-iris lens, please make sure that the pin
configuration is correct by checking with the following table. If the
configuration of your iris connector is different from the following, the
plug and pins will need to be rewired.
EIAJ Video
Pin
Auto-iris Lens
②
No.
④
Arrangement
①
Power
②
Not used
③
①
③
Iris signals
④
Common (GND)
Set-up and Operation
1)
Ensure that the power to the WAT-241 and the peripheral
ii
equipment is turned off before making any connections.
2) Remove the lens mount cap from the WAT-241 and attach the CS-
mount lens. Use the optional C-mount adaptor(30CMA-R)
when a C-mount lens is used.
3) Connect the iris control cable to ⑤AUTO-IRIS SOCKET on the
WAT-241 when an auto-iris lens is being used.
4) Connect ⑧VIDEO OUT on the WAT-241 with the monitor, using a
coaxial cable with 75Ω impedance, such as an RG-58/U or an
RG-6/U. Select a monitor with the same television system as the
WAT-241: NTSC or PAL. A monitor with more than 500TV lines is
recommended.
5) Insert the power plug of the power adaptor to ⑩POWER IN on the
back panel of the WAT-241. Confirm that the power adaptor is not
connected to the power supply before insertion of the power plug
into ⑩POWER IN.
6)
Turn on the power to the WAT-241, monitor and all other allied
equipment. When a picture cannot be obtained on the monitor, or a
problem occurs, check and follow the procedure mentioned in the
【Problems and Trouble Shooting】section.
7) After following the procedure below and the picture is still out of
focus, open the iris fully and loosen ④FOCUSING ADJUSTMENT
SCREWS with the hex. wrench and move the lens forwards until a
clear picture is obtained
.
Adjust the focus and iris to the best
Manual Lens
position on the lens.
Video Auto-iris Lens
Adjust the focus on the lens.
Adjust the iris level on the camera, then
DC Auto-iris Lens
adjust the focus on the lens. See below.
Iris Level Adjustment (for DC auto-iris lenses only)
Adjust ③IRIS LEVEL VOLUME placed on the side
of the unit until an acceptable light level is attained.
No change will occur if a video iris lens or manual
iris lens is fitted.
8)iSelect the required shutter speed mode by the ⑦ AE MODE
CONTROL.
AE Mode
Effect
DC+12V
Automatically selects the shutter speed in the
ON
range between NTSC1/60-1/100000, PAL1/50
(EI)
-1/100000 according to the lighting condition.
COMMON(GND)
OFF
Fixes the shutter speed to NTSC1/60, PAL1/50.
EIAJ DC
Auto-iris Lens
Arrangement
Control -
Control +
Drive +
Drive -
CLOSED
LEVEL
OPEN
