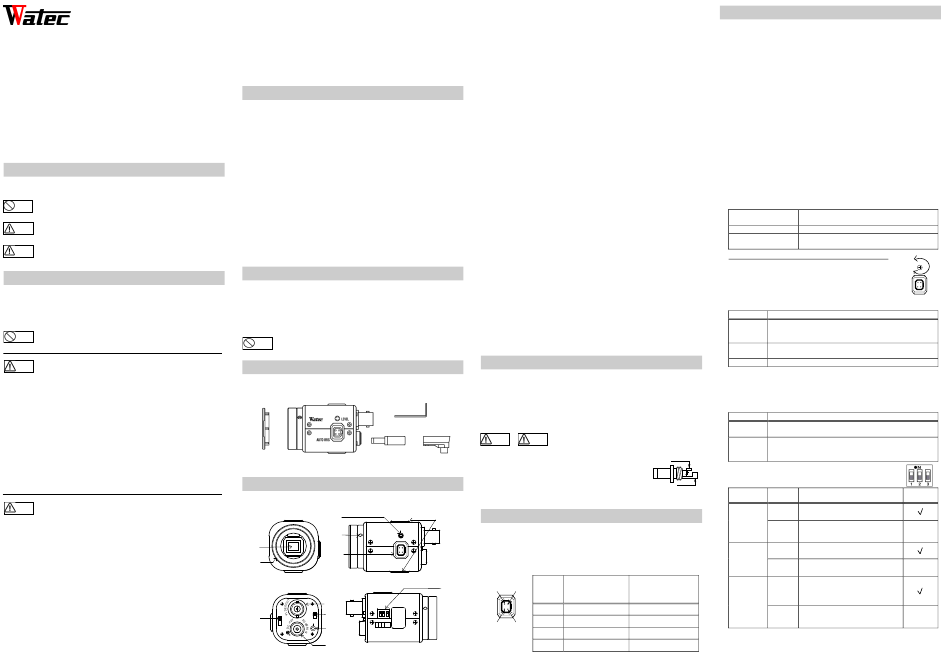

Watec WAT-250D Operation Manual

Color CCD Camera
WAT-250D
Operation Manual
This Operation Manual covers safety, camera functions, installation and the
correct operating procedure for the WAT-250D. First, we ask you to read
this Operation Manual thoroughly, then install and operate the WAT-250D
as advised. In addition, for future reference, we also advise safekeeping of
this manual.
Please contact the distributor or dealer from which the WAT-250D was
purchased, if you do not understand the installation, operation or safety
instructions laid out in this manual. Not understanding the contents of the
Operation Manual sufficiently may cause damage to the camera.
Guide to the Safety Symbols
The definitions of the symbols used in this operation manual are:
When you do not adhere to or take notice of the "Danger" sign,
Danger
it may lead to a serious accident such as death or injury caused
by fire or electric shock.
When you do not adhere to or take notice of the "Warning" sign,
Warning
it may cause severe damage such as a physical injury.
When you do not adhere to or take notice of the "Caution" sign,
it may incur injury and cause damage to peripheral objects in
Caution
the immediate surroundings.
Cautions for Safety
The WAT-250D is designed to be used safely; however, it may lead to a
physical accident caused by fire and electric shock if not used correctly.
Therefore, please keep and read the "Cautions for safety" below for
protection against accidents.
Do not disassemble and/or modify the WAT-250D.
•
Danger
Do not operate the WAT-250D with wet hands.
•
Use only the AD901-120/230 or equivalent power adaptor
•
Warning
for the WAT-250D
The recommended voltage is DC+12V±10%.
Do not expose the WAT-250D to wetness or high moisture
•
conditions.
The WAT-250D is designed and approved for indoor use only.
The WAT-250D is not water-resistant or waterproof. If the
location of the camera is outdoors or in an outdoor like
environment, we recommend that you use an outdoor camera
housing.
Protect the WAT-250D from condensation.
•
Keep the WAT-250D dry at all times during storage and
operation.
Should the camera not work properly, switch off the power
•
immediately. Then check the camera according to the
"Problems and Trouble shooting" section.
Avoid the striking of hard objects or dropping the WAT-
•
Caution
250D.
The WAT-250D uses high quality electrical parts and precision
components.
Do not connect any power supply directly to the video out
•
terminal of the unit.
Do not connect the WAT-250D with any monitor using a
video/power single transmission terminal. The WAT-250D is
not designed for use with this type of equipment. We also
advise you to read the operation manual of the monitor you
plan to use before any connections are made.
Do not install the WAT-250D in a position subject to direct
•
sunlight.
Sunlight shinning directly onto the WAT-250D lens can cause
damage to the CCD.
Select a stable place for installation of the WAT-250D.
•
Use a support of durable strength around an installation
position on a ceiling or wall when a camera stand or tripod is
used.
Do not move the WAT-250D with the cables connected.
•
Before moving the WAT-250D, always remove the video cable
and power cable from the rear of the camera first.
Avoid using the WAT-250D near any strong
•
electromagnetic field.
After installing into main equipment, if the WAT-250D is
exposed to electromagnetic waves causing the monitored
image to become distorted, we recommend the camera be
shielded by appropriate protective casing
Problems and Trouble Shooting
If any of the following problems occur when using the WAT-250D,
An optimal picture cannot be obtained, after checking that all the cables
•
and connections are correctly in place
Smoke or any unusual odor emerges from the WAT-250D
•
An object becomes embedded or a quantity of liquid seeps into the
•
camera housing
More than the recommended voltage or/and amperage has been applied
•
to the WAT-250D by mistake
Anything unusual occurring to any equipment connected to the WAT-250D
•
Disconnect the camera immediately according to the following
procedures:
①Switch off the main power supply to the camera.
②Remove the power and video cables connected to the WAT-250D.
③Contact the distributor or dealer from which the WAT-250D was
purchased.
About EMC
The WAT-250D is in conformity with EMC test standards carried out by
authorized organizations in Japan.
NTSC FCC Part15 class B
P A L EN61000-6-3/EN50130-4
Do not modify the WAT-250D. A modified camera may not
Danger
conform to EMC test standards.
Contents
Using the contents figures below, check to make sure all parts are present
before use.
Hex. Wrench
Lens Mount Cap WAT-250D DC Plug Iris Connector
Description of Parts
③
④
LEVEL
①
⑤
AUTO IRIS
②
⑧
E . I A.T.W 1:
O N AGC
⑨ (O N /O FF )
⑦ 2 3 2: GAMM A
F . L 1
(O N /O FF )
P.W.B
3: B . L . C
NTSC (O N /O FF )
⑩
OFF
MADE IN JAPAN
⑪
①CCD FRONT FACE
・ ・ ・ ・ The light receiving face of the CCD camera
(Dirt, water or oil deposits on the CCD will cause an unclear picture on
the monitor. Attach the lens cap to protect the lens and the CCD from
contamination and damage.)
②LENS MOUNT
・ ・ ・ ・ Mount for the lens (CS-mount)
③IRIS LEVEL VOLUME
・ ・ ・ ・ By controlling the volume, the iris level of the DC iris lens can be
adjusted.
④FOCUSING ADJUSTMENT SCREWS
・ ・ ・ ・ There are 3 hex. adjustment screws each placed at intervals of 120゜for
fine focusing of the lens.
⑤AUTO-IRIS SOCKET
・ ・ ・ ・ This socket is for the video/DC auto-iris lens cable connector.
(Video/DC: Auto selected by the camera)
⑥TRIPOD MOUNTING SCREW HOLES
・ ・ ・ ・ Mounting holes for stands. The size of these threads are 1/4", 20 threads,
4.5±0.2mm, which is the same as any standard camera tripod (U1/4").
⑦AE MODE CONTROL
・ ・ ・ ・ The switch for the shutter speed mode control according to the object
being monitored.
⑧VIDEO OUT (BNC)
・ ・ ・ ・ The terminal for composite video signal output
⑨WHITE BALANCE
・ ・ ・ ・ The switch for selecting white balance mode.
⑩PUSH-LOCK WHITE BALANCE
・ ・ ・ ・ The button for manual setting of the white balance if the white balance
mode is set to P.W.B.
⑪POWER IN
・ ・ ・ ・ The terminal designed for connection with the DC-plug of the power
adaptor.
⑫FUNCTION SWITCHES
・ ・ ・ ・ Functional switches for setting AGC, gamma control and B.L.C (Back
light compensation).
Power Supply
If any other power adaptor besides the AD901-120/230 is used, please use
a stabilized power adaptor designed for DC+12V±10%, with a current
capacity of more than 250mA.
Use the optional DC plug if the shape or polarity of the DC plug of the power
adaptor to be used is not compatible with the camera (See the drawing on
the right).
Warning Caution
The wiring on the connector must be exact.
Be careful no to touch the other terminal while wiring.
Protect the wiring portion by using insulation tape after
wiring. If the above care and attention is not adhered to,
damage to the WAT-250D and power adaptor may
occur and may also cause fire.
Auto-iris Lens
⑥
Before connecting the auto-iris lens, please make sure that the pin
configuration is correct by confirming with the following table. If the
configuration of your iris connector is different from the following, the plug
and pins will need to be rewired.
EIAJ Video
⑫ ④ ②
Pin No. Auto-iris Lens
Arrangement
① Power
②
Not used
③ ①
③
Iris signals
④
Common (GND)
Set-up and Operation
1) Ensure that the power to the WAT-250D and the peripheral equipment
is turned off before making any connections.
2) Remove the lens mount cap from the WAT-250D and attach the
CS-mount lens. Use the optional C-mount adaptor(30CMA-R) when a
C-mount lens is used.
3) Connect the iris control cable to ⑤AUTO-IRIS SOCKET on the WAT-
250D when an auto-iris lens is being used.
4) Connect ⑧VIDEO OUT on the WAT-250D with the monitor, using a
coaxial cable with 75Ω impedance, such as an RG-58/U or an RG-6/U.
Select a monitor with the same television system as the WAT-250D:
NTSC or PAL. A monitor with more than 500TV lines is recommended.
5) Insert the power plug of the power adaptor to ⑪POWER IN on the back
panel of the WAT-250D. Confirm that the power adaptor is not connected
to the power supply before insertion of the power plug into ⑪POWER
IN.
6) Turn on the power to the WAT-250D, monitor and all other allied
equipment. When a picture cannot be obtained on the monitor, check
and follow the procedure mentioned in the【Problems and Trouble
Shooting】section.
7) After following the procedure below and the picture is still out of focus,
open the iris fully and loosen ④FOCUSING ADJUSTMENT SCREWS
with the hex. wrench and move the lens forwards until a clear picture is
obtained.
Adjust the focus and iris to the best position
Manual Lens
on the lens.
Video Auto-iris Lens Adjust the focus on the lens.
Adjust the iris level on the camera, then
DC Auto-iris Lens
adjust the focus on the lens. See below.
Iris Level Adjustment (for DC auto-iris lenses only)
Adjust ③IRIS LEVEL VOLUME placed on the side
of the unit until an acceptable light level is attained.
No change will occur if a video iris lens or manual
iris lens is fitted.
8) Select any required shutter speed mode by the ⑦AE MODE
CONTROL.
AE Mode
Automatically selects the shutter speed in the range
EI between NTSC1/60-1/100000, PAL1/50-1/100000
according to the lighting condition.
Reduces the flickering phenomena occurring on the
FL
monitor screen caused by fluorescent or mercury lamps.
OFF Fixes the shutter speed to NTSC1/60, PAL1/50.
※In EI mode, intense light may leave a trail on the screen longitude.
This smearing is a natural phenomenon and is not due to equipment
failure or fault.
9) Adjust the required white balance settings by the ⑨WHITE BALANCE
or ⑩PUSH-LOCK WHITE BALANCE.
Mode
Automatically adjusts to the changing color
A.T.W
temperature of the illumination.
Manually adjusted according to your requirement
⑩PUSH-LOCK WHITE BALANCE keep pressed until
P.W.B
the required color temperature is acquired.
DC+12V
10) Set the ⑫FUNCTION SWITCHES according to your
iirequirements.
COMMON(GND)
Switch Setting
･ When sensitivity is more
1. ON
important than the SN ratio
･ When SN ratio is more important
AGC
OFF than sensitivity, or when a stable
lighting condition is present.
･ Applicable to a general
2.
ON
surveillance monitoring system
Gamma
Correction ･
When gamma correction is not
OFF
required for image processing
･ When the picture of the
EIAJ DC
monitored object is silhouetted
Auto-iris Lens
3. ON
due to strong lighting from
Arrangement
above or behind
B.L.C
Control － ･
When the illumination
OFF differences between a monitored
Control ＋
object is narrow.
Drive ＋
※ Back light compensation is available when EI of ⑦ AE MODE
CONTROL or AGC of ⑫FUNCTION SWITCHES is set to ON. Use
Drive －
an auto-iris lens if the above setting cannot be obtained.
CLOSED
LEVEL
OPEN
Effect
Effect
Factory
Effective Condition
Settings
