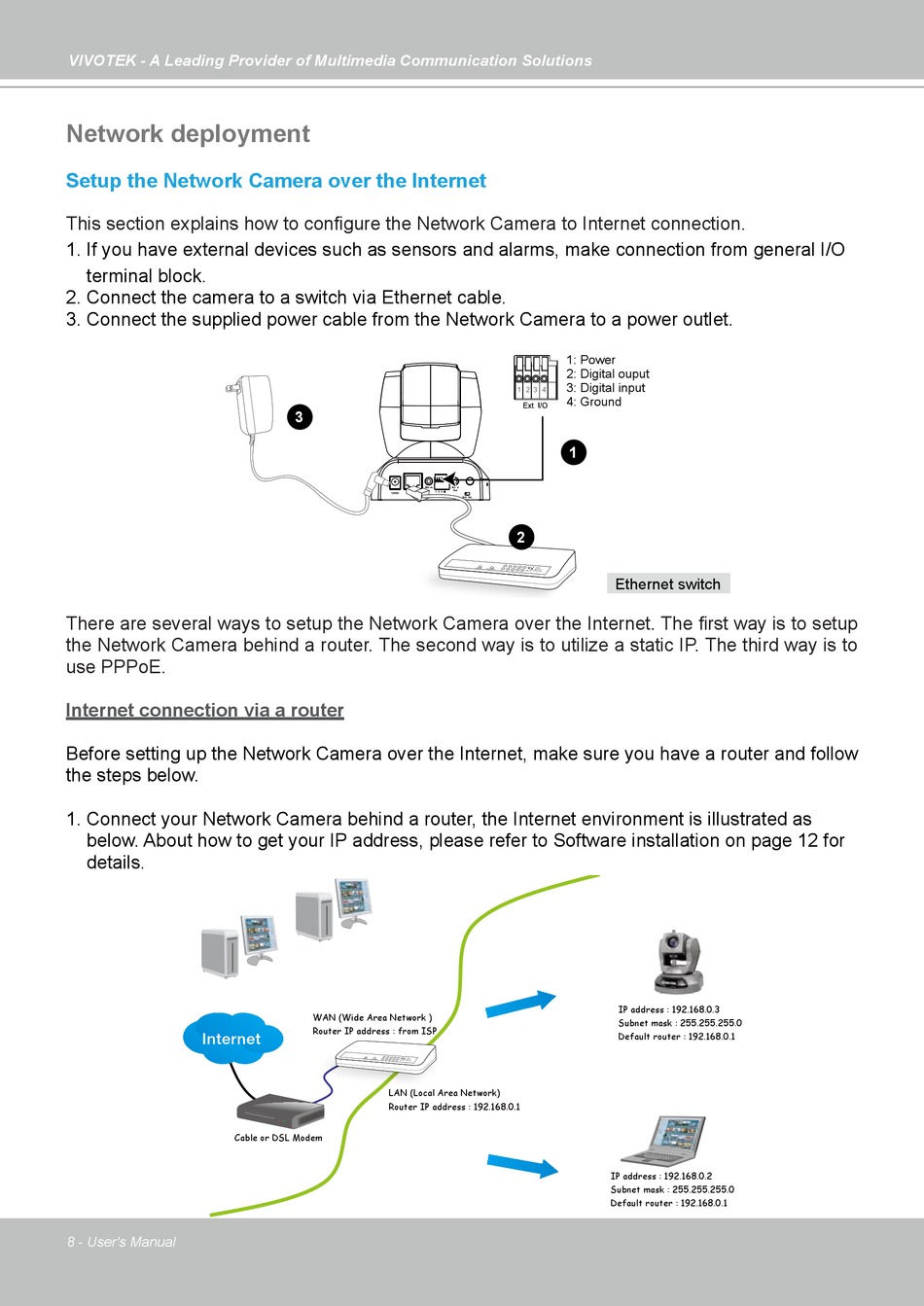

Network deployment

Setup the Network Camera over the Internet
This section explains how to configure the Network Camera to Internet
1� If you have external devices such as sensors and alarms, make connection from general I/O
terminal block�
2� Connect the camera to a switch via Ethernet cable�
3� Connect the supplied power cable from the Network Camera to a power outlet�
There are several ways to setup the Network Camera over the
the Network Camera behind a
use PPPoE�
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below�
1� Connect your Network Camera behind a router, the Internet environment is illustrated as
below� About how to get your IP address, please refer to Software installation on page 12 for
details�
Internet
Cable or DSL Modem
8 - User's Manual
3
Audio
e e
router� The second way is to utilize a static
WAN (Wide Area Network )
Router IP address : from ISP
LAN (Local Area Network)
Router IP address : 192.168.0.1
connection�
1: Power
2: Digital ouput
3: Digital input
4: Ground
1
2
Ethernet switch
Internet� The first way is to setup
IP�
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
The third way is to
