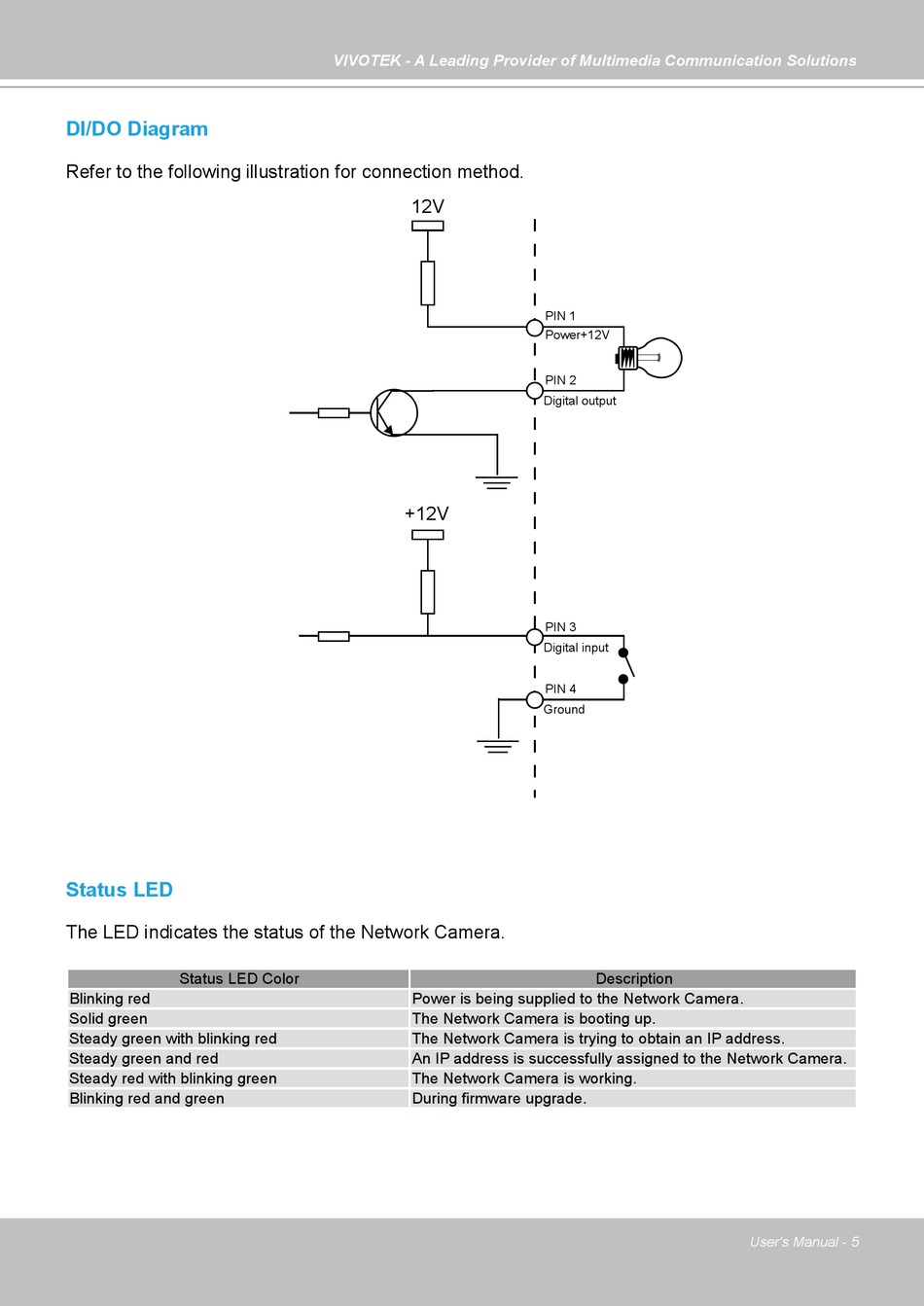

DI/DO Diagram
Refer to the following illustration for connection method�
Status LED
The LED indicates the status of the Network Camera�
Status LED Color
Blinking red
Solid green
Steady green with blinking red
Steady green and red
Steady red with blinking green
Blinking red and green
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
12V
+12V
Power is being supplied to the Network Camera�
The Network Camera is booting up�
The Network Camera is trying to obtain an IP address�
An IP address is successfully assigned to the Network Camera�
The Network Camera is working�
During firmware upgrade�
PIN 1
Power+12V
PIN 2
Digital output
PIN 3
Digital input
PIN 4
Ground
Description
User's Manual - 5
