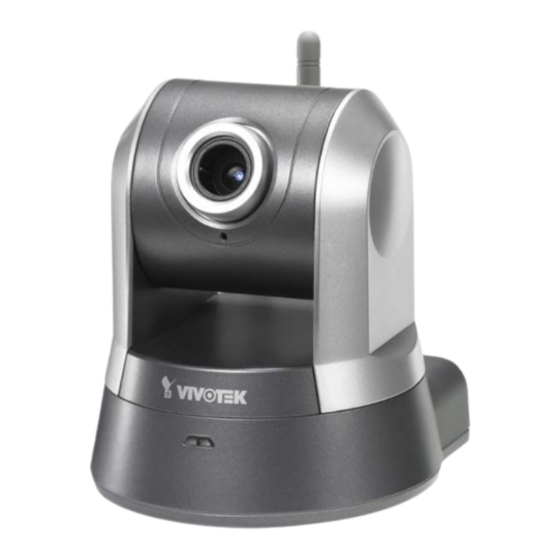

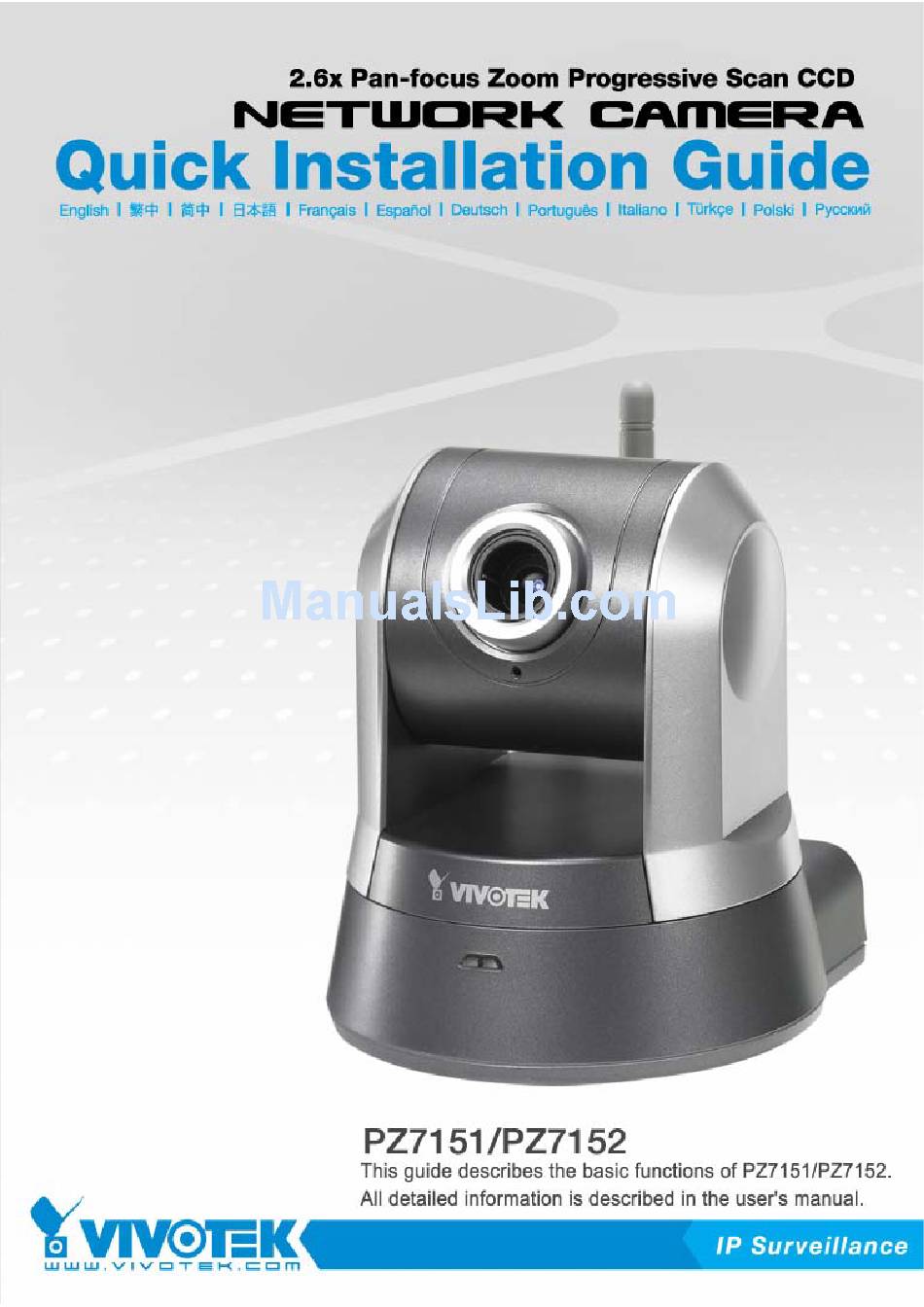

Vivotek PZ7151 Quick Installation Manual

2.6x pan-focus zoom progressive scan ccd
Hide thumbs Also See for PZ7151:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PZ7151 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek PZ7151

Summary of Contents for Vivotek PZ7151

  • Page 2: Warning Before Install

    Warning Before Install Power off the Network Camera Keep the Network Camera away as soon as it is found smoking or from water. If the Network Camera smelt unusual. is wet, power off immediately. Contact your distributor when such Contact your distributor when such cases happen.
  • Page 3 Do not place the Network Camera Do not touch the Network Camera on unsteady surfaces. when it's lightening. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert any object into the Do not manually pan and tilt the Network Camera, such as needles.
  • Page 4 Package Contents Power adapter PZ7151 / PZ7152 Screws Antenna (PZ7152 only) Software CD Quick installation guide Ceiling mount brackets Warranty card EN - 3...

  • Page 5: Physical Description

    Physical Description Front panel Lens Built-in Microphone Status LED Back panel Antenna (PZ7152 only) Microphone in Ethernet 10/100 Audio out RJ45 socket Power cord socket Indented reset button Mic. In Audio Ext. Int. 12VDC Ethernet Ext. I/O General I/O External/Internal terminal block Microphone switch EN - 4...

  • Page 6: Hardware Installation

    Hardware Installation Mounting the Network Camera 1. Attach ceiling mount bracket A to the Network Camera and secure it with two small screws. 2. Drill three pilot holes into the ceiling; hammer the plastic anchors into the holes. 3. Fasten ceiling mount bracket B to the ceiling with three screws. 4.

  • Page 7: Network Deployment

    Network Deployment General Connection (without PoE) 1. If you have external devices such as sensors and alarms, make connection from general I/O terminal block. 2. Connect the camera to a switch via Ethernet cable. 3. Connect the supplied power cable from the Network Camera to a power outlet. 1: Power 2: Digital ouput 3: Digital input...
  • Page 8 Power over Ethernet (PoE) (PZ7151 only) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via single Ethernet cable. See the following illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable.

  • Page 9: Assigning Ip Address

    "Next" button to continue the program. Installation Wizard 2 3. The program will search the VIVOTEK Video Receivers, Video Servers or Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect the Internet Explorer to the Network Camera.

  • Page 10: Retrieving Images

    Retrieving Images For further setup, please refer to user's manual on the software CD. EN - 9...
  • Page 11 Confi gure the Wireless Connection (PZ7152 only) 1. Check the SSID currently set on your wireless access point (AP). 2. Go to PZ7152's Confi guration > Wireless LAN. 3. Type in the SSID consistent with the setting on your AP. 4.

This manual is also suitable for:

Pz7152
