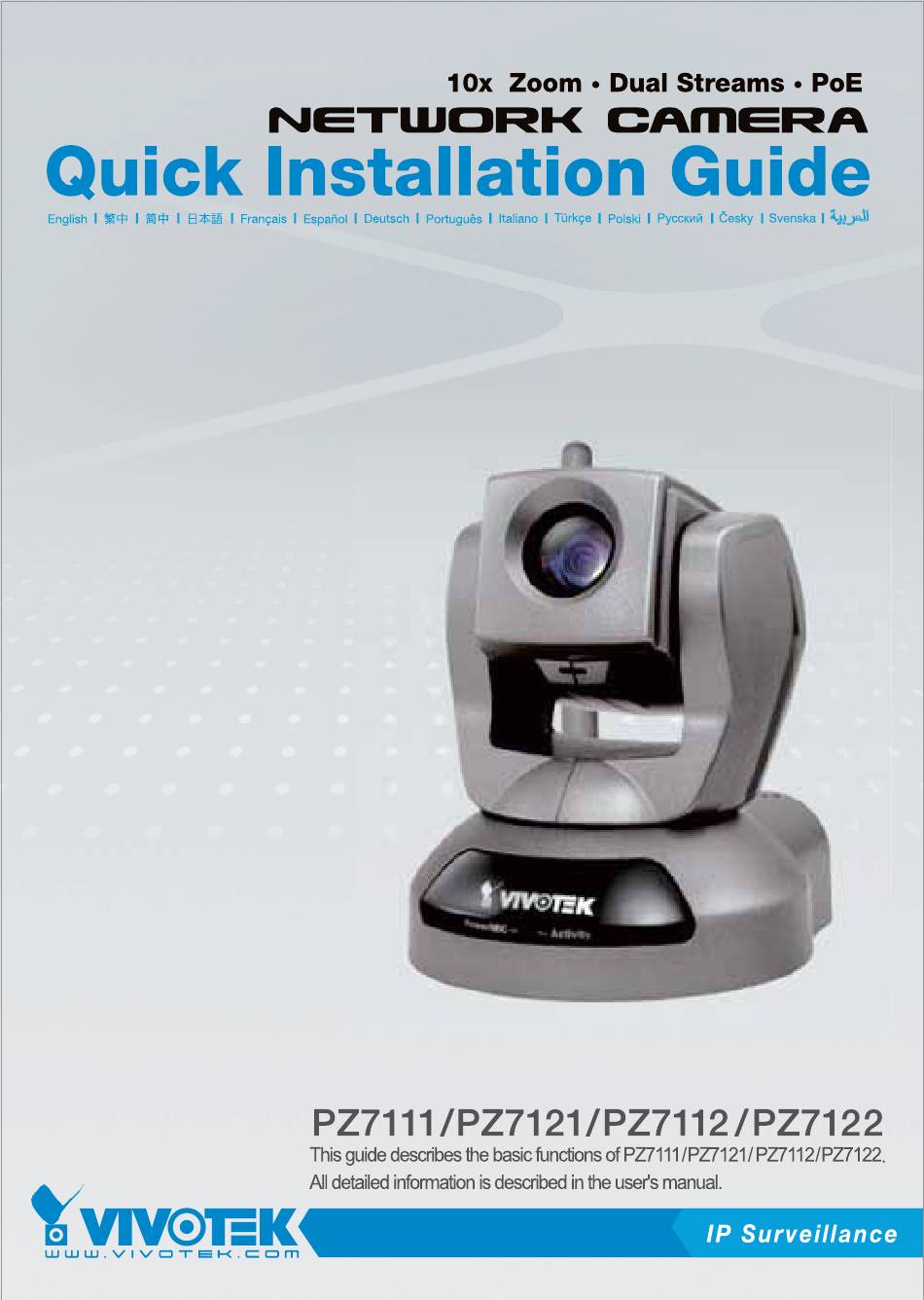

Vivotek PZ7111 Quick Installation Manual
10x zoom dual streams poe
Hide thumbs
Also See for PZ7111:
- Quick installation manual (13 pages) ,
- Specifications (2 pages) ,
- User manual (126 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivotek PZ7111
Summary of Contents for Vivotek PZ7111
-
Page 2: Warning Before Install
Warning Before Install Power off the Network Camera Keep the Network Camera away as soon as it is found smoking or from water. If the Network Camera smelt unusual. is wet, power off immediately. Contact your distributor when such Contact your distributor when such cases happen. - Page 3 Do not place the Network Camera Do not touch the Network Camera on unsteady surfaces. when it's lightening. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert any object into the Do not manually pan and tilt the Network Camera, such as needles.
-
Page 4: Package Contents
Package Contents PZ7111 / PZ7121/ Power adapter PZ7112 / PZ7122 Antenna Screws (PZ7112 / PZ7122 only) Quick installation guide / Software CD Warranty card A/V cable Ceiling mount brackets EN - 3... -
Page 5: Physical Description
Physical Description Front panel Lens Built-in microphone Status LED Power/MIC Activity Back panel Antenna (PZ7112 / PZ7122 only) Microphone in Ethernet 10/100 AV out RJ45 socket Power cord socket Indented reset button General I/O External/Internal terminal block microphone switch EN - 4... -
Page 6: Hardware Installation
Hardware Installation Mounting the Network Camera 1. Attach ceiling mount bracket A to the Network Camera and secure it with two small screws. 2. Drill three pilot holes into the ceiling; hammer the plastic anchors into the holes. 3. Fasten ceiling mount bracket B to the ceiling with three screws. 4. -
Page 7: Network Deployment
Network Deployment General Connection (without PoE) 1. If you have external devices such as sensors and alarms, make connections from gen- eral I/O terminal block. 2. Connect the camera to a switch via a Ethernet cable. 3. Connect the supplied power cable from the camera to a power outlet. 1: Power 2: Digital output 3: Digital input... - Page 8 Power over Ethernet (PoE) When using a PoE-enabled switch The camera is PoE-compliant, allowing transmission of power and data via single Ether- net cable. See the following illustration to connect the camera to a PoE-enabled switch via Ethernet cable. PoE switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the camera and a non-PoE switch.
-
Page 9: Assigning Ip Address
Installation Wizard 2 3. The program will search the VIVOTEK Network Devices in the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect the Internet Explorer to the Network Camera. -
Page 10: Ready To Use
Ready to Use 1. Access to the Network Camera from the Internet. 2. Retrieve live video through web browsers or recording software. For further setup, please refer to user's manual on the software CD. EN - 9... - Page 11 Configure the Wireless Connection (PZ7112 / PZ7122 only) 1. Check the SSID currently set on your wireless access point (AP). 2. Go to PZ7112 / PZ7122's Configuration > Advanced mode > Wireless. 3. Type in the SSID consistent with the setting on your AP. 4.
- Page 12 P/N: 625006701G Ver.1.1...
