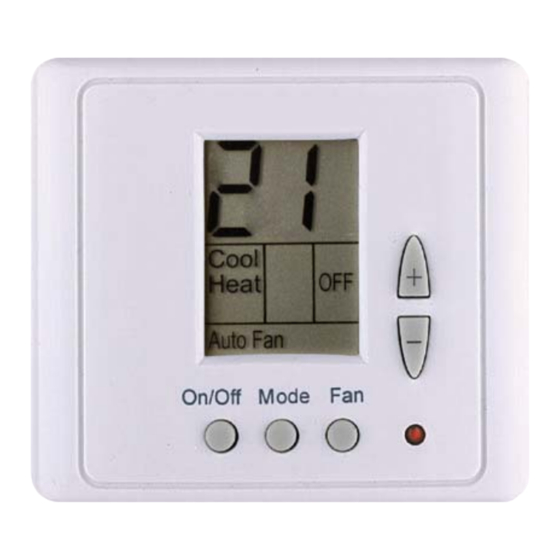

meitav-tec ETN-P Series Owner's Manual Installation And Operating Instructions

Meitav-tec Ltd (Contel group)

Tel: +972 (3) 962 6462 Fax: +972 (3) 962 6620

www.meitavtec.com - support@meitavtec.com

ETN-24-P-1S-IR

Owner's Manual – Installation and Operating Instructions

Please read this manual carefully before installation and use.

Index

Options & Accessories

1. Options and Accessories

Remote sensor option:

• TS01: Temperature Sensor with 80cm cable.

• RS01: for remote temperature sensing (1 required); for averaging

temperature at 4 locations (4 required) – the thermostat will control on the

average temperature of all 4 locations

• RS02: for averaging temperature at 2 locations (2 required) – the thermostat

will control on the average temperature of both locations

For details on where to purchase accessories, please contact Meitav-tec or

visit our web site at www.meitavtec.com

etn-24p-1s-ir.doc

rev.1

26/12/2006

Table of Contents

Need help?

Do you have a question about the ETN-P Series and is the answer not in the manual?

Page 1 • RS02: for averaging temperature at 2 locations (2 required) – the thermostat will control on the average temperature of both locations For details on where to purchase accessories, please contact Meitav-tec or visit our web site at www.meitavtec.com etn-24p-1s-ir.doc rev.1...
Page 2 (the designated terminals on the printed circuit board are for internal (factory) use only). “T”-“T0” Terminals can be used in any system configuration when Meitav-tec external sensor is connected and the DIP switch is correctly configured.
Page 3 Internal temp. sensor (Default) external temp. sensor DIP switch S2 (4 switches) is not in use – all switches OFF 5. External sensor connection The sensor must be MEITAV-TEC type. N.TC. Sensor; Temperature ~ Resistance Characteristics Temp °C 10.0 12.8 15.6...
Page 4 6. Technician Settings 6.1 Set differential for 0÷10Vdc. The temperature Differential defines the ratio between the opening level of the damper and the temperature demand. The damper will be fully opened when the demand (demand = ambient temp Mode Mode –...
Page 5 7. Operating manual 7.1 Turn the thermostat on Press the ON button to activate the thermostat - The • word "ON" will appear on the display. Mode 7.2 Turn the thermostat off Press the OFF button to deactivate the thermostat - •...
