JL Audio Stealthbox SB-F-ESCP/10W1V3 Installation Manual page 3

Page 5• JL Audio, Inc 2016

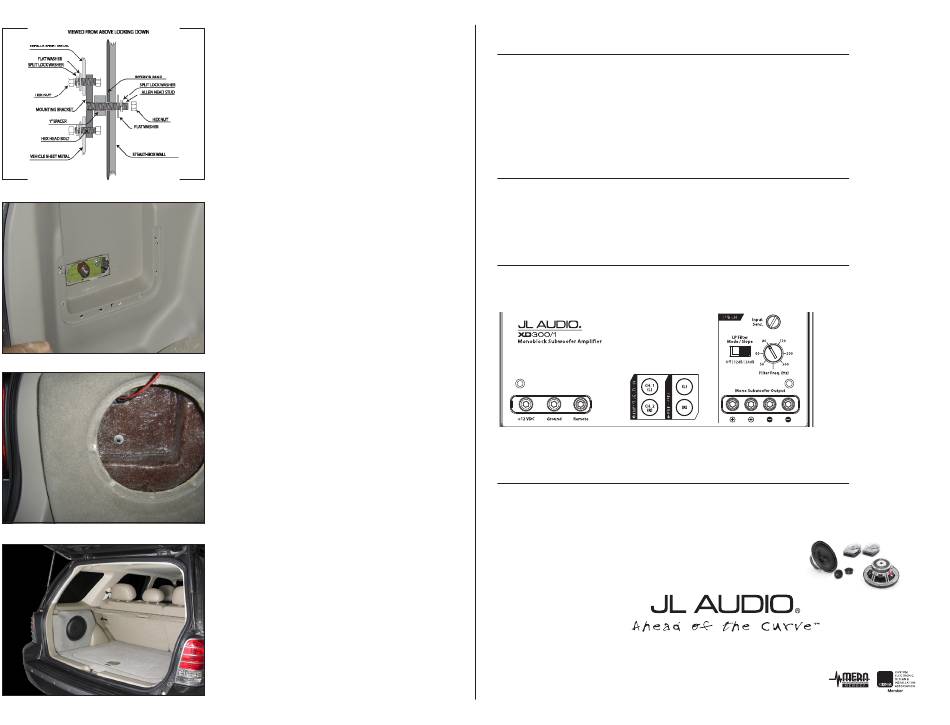

S T E P 1 0 D E T A I L ( 2 )
This is how the hardware should be configured for the
bracket and, the Stealthbox®.
S T E P 1 1
Expand the round hole in the interior panel from STEP 4 as
shown, re-install all of the interior panels that were removed
earlier, place the 1" Spacer (included) over the Stud as shown.
S T E P 1 2
Put the box in the panel and line it up with the bolt. Make
sure to run speaker wire from the enclosure to the location of
the amp before securing it to the vehicle.
S T E P 1 3
Mount woofer to the box . place grill over the speaker, secure
the woofer and you are done.
C O N G R A T U L A T I O N S !
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
I N C L U D E D H A R D W A R E
2) 1/4-20 x 1 1/4" Hex Head Bolt
2) 1/4" Split Lock Washer
1) 3/8" Split Lock Washer
1) 3/8-16 x 2 1/4" Allen Head Stud
1) Custom Mount bracket
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W1v3-2
Nominal Impedance: 2 ohms
Continuous Power Handling: 300watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2. The diagram below shows
the recommended crossover settings for the XD300/1v2 when being used to power your Stealthbox
The JL Audio XD300/1v2is a very versatile audio component. Please consult the owner's manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 5"x 7" / 6"x 8"- Front Doors
Fits JL Audio Models: TR570-CXi, C5-570, C5-570x & ZR570-CSi
Rear Speaker Size / Location: 5"x 7" / 6"x 8"- Rear Door
Fits JL Audio Models: TR570-CXi, C5-570x
(954) 443-1100
All specifications are subject to change without notice. "JL Audio®" and the JL Audio logo, "Stealthbox" and the Stealthbox logo are registered
trademarks of JL Audio, Inc. "Ahead of the Curve" and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011286 09.20.2016 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y
SB-F-ESCP/10W1V3 INSTR_SKU# 011286
2) 1/4-20 Hex Head Nut
2) 1/4" Flat Washer
1) 3/8" Flat Washer
1) 1" Spacer
