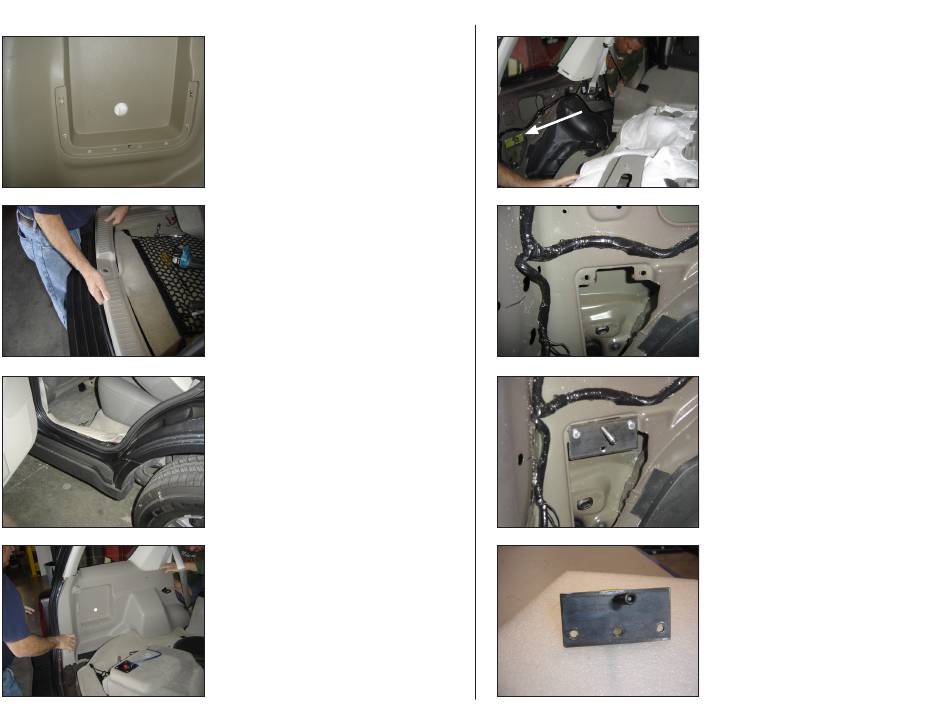

S T E P 4
Drill a 1" hole in the interior panel where marked as STEP 3
as shown.
Note: Before drilling, make sure that you are not
going to be drilling into any gas lines, brake lines,
transmission lines, electrical wiring, transfer case (4x4
vehicles) or anything else that might cause a reduc-
tion in your weekly pay. Always wear eye protection
when drilling!
S T E P 5
Remove bottom trunk plastic trim panel as
shown.
S T E P 6
Remove bottom plastic trim piece from rear left door
opening.
S T E P 7
Remove side panel as shown.
SB-F-ESCP/10W1V3 INSTR_SKU# 011286
S T E P 8
The interior with the side panel removed. Note where the
bracket had been previously installed
S T E P 9
This shows the holes where the bracket mounts.
S T E P 1 0
Mount the bracket.
The bracket will be oriented as shown with all three bolts in a
straight line in the newer vehicles.
For the older models, the bracket will be mounted upside
down to the photo at left with the stud threaded into the
"triangular" hole and, above the two mounting bolts as
shown below
Please refer to the detail pictures for
further clarification.
S T E P 1 0 D E T A I L ( 1 )
The bracket will be mounted as shown at left in the older
model vehicles.
