Figure 6 Grid Support Function Screen - Alpha OutBack Power Radian Series Operator's Manual

Operation
The settings for each item will vary depending on the standards being applied. Not all functions
are enabled. When a particular standard is applied, the settings will be pre-loaded accordingly.
The screen in Figure 6 shows which functions are enabled.
When Grid Support functions require the inverter to export power to help sustain grid voltage or
frequency, the inverter will do so with respect to the following limits:
An inverter in Grid Tied mode will observe the Sell Current limit and the Sell Voltage limit.
An inverter in GridZero mode will observe the DoD Amps and the DoD Volts limits.
38

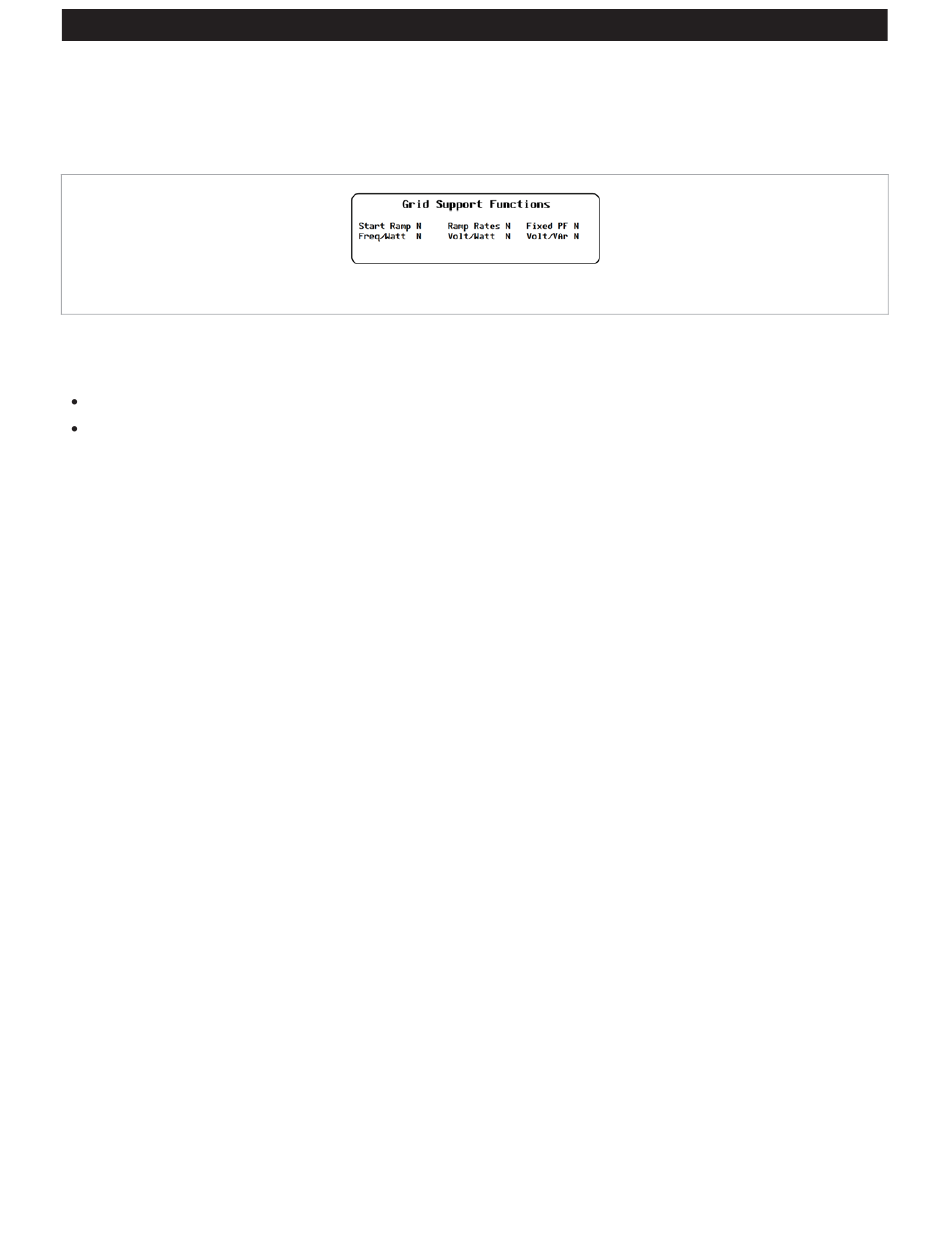

Figure 6 Grid Support Function Screen
