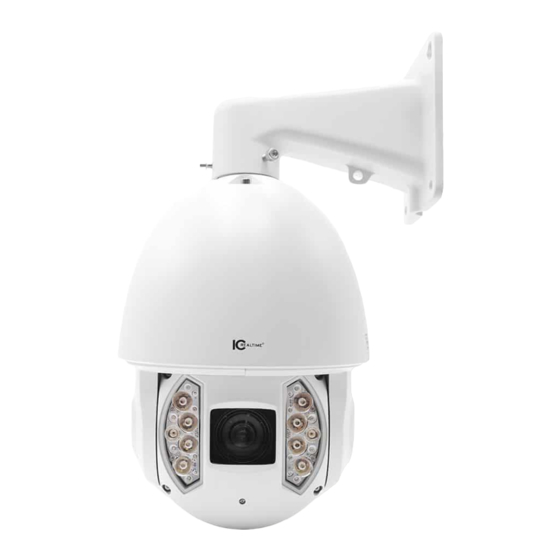

ICRealtime ICIP-P2300Y-IR User Manual

Hd ir speed dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HD IR Speed Dome User's Manual
Version 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICIP-P2300Y-IR and is the answer not in the manual?

Questions and answers

Related Manuals for ICRealtime ICIP-P2300Y-IR

Summary of Contents for ICRealtime ICIP-P2300Y-IR

  • Page 1 HD IR Speed Dome User’s Manual Version 1.0.0...
  • Page 2 Table of Contents FEATURES AND FUNCTIONS................... 1 General Introduction ..............................1 Features ..................................1 1.2.1 On-Screen Menu ..............................1 1.2.2 Zoom Speed Limit ..............................1 1.2.3 OSD ..................................1 1.2.4 Preset Setup and Call ............................1 1.2.5 Auto Scan ................................1 1.2.6 Auto Touring ................................

  • Page 3: Table Of Contents

    MENU ..........................9 Screen Menu Index ..............................9 Self-diagnosis System Information ........................10 Main Menu ................................. 10 Menu Operation ..............................11 4.4.1 System Information .............................. 11 4.4.2 Display Setting ..............................12 4.4.3 Camera Setting ..............................12 4.4.4 Function Setting ..............................18 4.4.5 IR Light Setting ..............................
  • Page 4 Welcome Thank you for purchasing our product! This user’s manual is designed to be a reference tool for the operation of your system. Here you can find information about this speed dome features and functions, as well as a detailed menu tree. Please keep it well for future reference! Before installation and operation, please read the following safeguards and warnings carefully!
  • Page 5 Important Safeguards and Warnings 1．Electrical safety  All installation and operation here should conform to your local electrical safety codes.  We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. ...
  • Page 6  Do not touch CCD (CMOS) component. You can use the blower to clean the dust on the surface of the device. You can use the dry cloth with some alcohol or mild detergent to clear if necessary.  Do not use the volatility solvent such as the benzene or thinner, or detergent with strong abradibility. It may result in lens damage or it may adversely affect the device performance.
  • Page 7 1 Features and Functions 1.1 General Introduction This series HD IR speed dome product is an integrated high intelligent speed dome. It adopts new configuration design and is easy for the project construction. This is a digital and intelligent product of vivid video.
  • Page 8 There is a self diagnosis procedure when dome boots up.  Tilt and vertical engine check  Camera diagnostics (mainly zoom function diagnosis)  Display dome information. 1.2.11 Day/Night Mode (B/W & Color Mode) Auto/manual switches in low illumination. There are several modes such as photoresistor, auto, manual and etc.
  • Page 9 2 Quick Configuration Tool 2.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. 2.2 Operation Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 2-1.
  • Page 10 Figure 2-2 Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 2-3. Figure 2-3 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set.
  • Page 11 Figure 2-4 After you logged in, the configuration tool main interface is shown as below. See Figure 2-5. Figure 2-5 For detailed information and operation instruction of the quick configuration tool, please refer to the Quick Configuration Tool User’s Manual included in the resources CD.
  • Page 12 3 Web Operation This series speed dome product supports the Web access and management via PC. Web includes several modules: live view, PTZ, setup, alarm, logout and etc. Speed dome factory default setup:  IP address: 192.168.1.108.  User name: admin ...
  • Page 13 Figure 3-2 After installation, the interface is shown as below. See Figure 3-3. Please input your user name and password. Default factory name is admin and password is admin. Select the network connection type. Note: For security reasons, please modify your password after you first login. Figure 3-3 After you logged in, you can see the main window.
  • Page 14 Figure 3-4 Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction.

  • Page 15: Menu

    4 Menu 4.1 Screen Menu Index Note: ERR means current setup is invalid; you need to restores speed dome factory default setup. Slight difference may be found due to different series. SYSTEM INFORMATION… SYSTEM ADDR INFORMATION… INFORMATION SET NORTH LANGUAGE FACTORY DEFAULT RESTART BACK...

  • Page 16: Self-Diagnosis System Information

    ： 1-S Address ： 9600 Baud rate ： None Parity MODEL : SD6A8 Software Version ： 2.02.63. R BACK EXIT The above diagram illustrates the overall structure of the speed dome setup menu. Note:  ERR means current setup is invalid. ...

  • Page 17: Menu Operation

     IR LIGHT SETTING: Set IR sensitivity, IR control rule, near light brightness, far light brightness, IR light compensation and etc.  EXIT: Log out the system menu. 4.4 Menu Operation In the speed dome main menu, you can use the left/right button on the keyboard or in the speed dome terminal menu to configure the system menu.

  • Page 18: Display Setting

    Move the cursor to SYSTEM INFORMATION and then click confirm button, you can see the above interface. Here you can view dome basic information. 4.4.1.2 Address Information ： SOFT ADDR TYPE ：1 ADDR-SOFT BACK EXIT Move the cursor to SITE INFORMATION and then click confirm button. ...
  • Page 19 WB SETTING APERTURE SETTING EXPOSURE SETTING APERTURE RESTRAIN LEVEL DAY/NIGHT SETTING DIGITAL ZOOM FOCUS SETING PICTURE FLIP IMAGE ADJUST FREEZE FUNC DEFOG SETTING STABLE ZOOM SPEED CAMERA FACTORY DEFAULT NEXT PAGE CAMERA RESTART BACK EXIT BACK EXIT Move the cursor to CAMERA SETTING and then click confirm button, you can go to the submenu. ...
  • Page 20 Move the cursor to WHITE BALANCE MODE and then click confirm button, you can go to the submenu.  WHITE BALANCE MODE: Set white balance adjustment mode. There are several modes such as auto, auto trace white balance, indoor, outdoor, and manual and etc. Please use the left/right button on the keyboard or in the speed dome terminal menu to set.
  • Page 21 Move the cursor to the item, click “OK” button to display other exposure setting items.  SLOW SHUTTER: In lower illumination environment, you can lower the cameras auto exposure time to capture the image and enhance the definition. Please use the left/right button on the keyboard or in the speed dome terminal menu to set.
  • Page 22  DAY/NIGHT: It is to set camera day/night switch mode. It includes: Photosensor/auto/schedule/color/B&W. Please use the left/right button on the keyboard or in the speed dome terminal menu to set.  DAY/NIGHT TYPE: It is to set the camera day/night type, it includes: mechanical, electronic. Click ‘left”, “right”...
  • Page 23  : It is to set picture hue. Please use the left/right button on the keyboard or in the speed dome terminal menu to set.  BRIGHTNESS: it is to set the image brightness. Please click the left/right button on the keyboard or in the speed dome terminal menu to set.

  • Page 24: Function Setting

     DIGITAL ZOOM: You can use the left/right button to enable/disable the digital zoom function.  PICTURE FLIP: There are two options: on/off. Please use the left/right button on the keyboard or in the speed dome terminal menu to set. ...
  • Page 25  MENU PASSWORD: It is to set the speed dome menu password, click “OK” to go to next menu to set. MENU IDLE TIME: The menu is on and the setting of the item is not “OFF”, then it will exit menu ...
  • Page 26 Move the cursor to PAN button and then click confirm button to go to setup interface.  PAN SPEED: Set dome rotation speed. Please use the left/right button on the keyboard or in the speed dome terminal menu to set. ...
  • Page 27 PRESET DWELL SPEED BACK EXIT Move the cursor to highlight TOUR item and then click confirm button to go to set interface.  TOUR NO ：Here is to ser tour number. Please use the left/right button on the keyboard or in the speed dome terminal menu to set.
  • Page 28 Move the cursor to PATTERN and click confirm button.  PATTERN NO： Here is to set pattern number. Please click left/right key to configure.  SETTING: Here is to memorize pattern starting point. An icon OK pops up in screen to prompt you system begins memory pattern.
  • Page 29  TIME TASK: The schedule task allows the speed dome to implement corresponding setup during the specified time. There are two options: on/off. Please use the left/right button on the keyboard or in the speed dome terminal menu to set. ...
  • Page 30 TIME ACTION ALL 00：00－00：00 SCAN 1 ALL 00：00－00：00 SCAN 1 ALL 00：00－00：00 SCAN 1 ALL 00：00－00：00 SCAN 1 ALL 00：00－00：00 SCAN 1 ALL 00：00－00：00 SCAN 1 ALL 00：00－00：00 SCAN 1 8 全星期 00：00－00：00 线扫 1 关 4.4.4.8 Next Page Move the cursor to the NEXT PAGE and then click the confirm button, you can go to the third menu to set the PTZ SPEED, SET ZERO, POWER UP and etc.
  • Page 31 ↑ ： 1 PRIVACY ： SIZE ：OFF PRIVACY MASKING SAVE SETTING BACK EXIT BACK EXIT Note:  For security reasons, please set privacy zone a little bit larger than the privacy object size.  Each time, after modifications you need to move the cursor to SAVE button and then click confirm button to get all setup activated.

  • Page 32: Ir Light Setting

    Menu Password Move the cursor to the MENU PASSWORD and the click the confirm button to go to the fourth menu. ：OFF PASSWORD PASSWORD： ： SETTING BACK EXIT → SAVE BACK  PASSWORD: Enable this function here so that you set password is valid. This function is on by default after you set password.

  • Page 33: Cable Connection

    5 Cable Connection 5.1 Combination Cable Connection The speed dome combination cable includes network cable, audio/video cable connection port, RS485 connection port, alarm input and output port. Please refer to the label for detailed information.  Please note the IE6 does not support alarm upload function. Please use IE7 or higher version. ...

  • Page 34: System Layout

    Two alarm output channels. When there is an alarm from current  channel, system activates relay or not. ALARM Alarm output relay default setup is NO.  Note: The default setup: 1-channel alarm output, 2-channel alarm output optional. 5.2 System Layout 5.2.1 System Connection Please refer to Figure 5-1 for system connection information.

  • Page 35: Faq

    6 FAQ 6.1 Daily Maintenance Please clean dome cover regularly to get vivid image. Handle the cover with care. Use water to wash. Don’t use cloth to clean. Note: The sweat from your hand may erode plating surface, your nail may scrape dome cover resulting in blur image.

  • Page 36: Appendix Ⅰ Lightning Proof And Surge Protection

    7 Appendix Ⅰ Lightning Proof and Surge Protection This series speed dome adopts TVS lightning protection technology. It can effectively prevent damages from various pulse signals below 1500W, such as sudden lighting and surge. While maintaining your local electrical safety code, you still need to take necessary precaution measures when installing the speed dome in the outdoor environment.

  • Page 37: Appendix 2 Toxic Or Hazardous Materials Or Elements

    8 Appendix 2 Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE ○ ○ ○ ○ ○ ○ Sheet Metal ○ ○ ○ ○ ○ ○ Plastic Parts ○ ○ ○ ○ ○...
  • Page 38 Note  This manual is for reference only. Slight difference may be found in the user interface.  All the designs and software here are subject to change without prior written notice.  All trademarks and registered trademarks are the properties of their respective owners. ...
