Troubleshooting

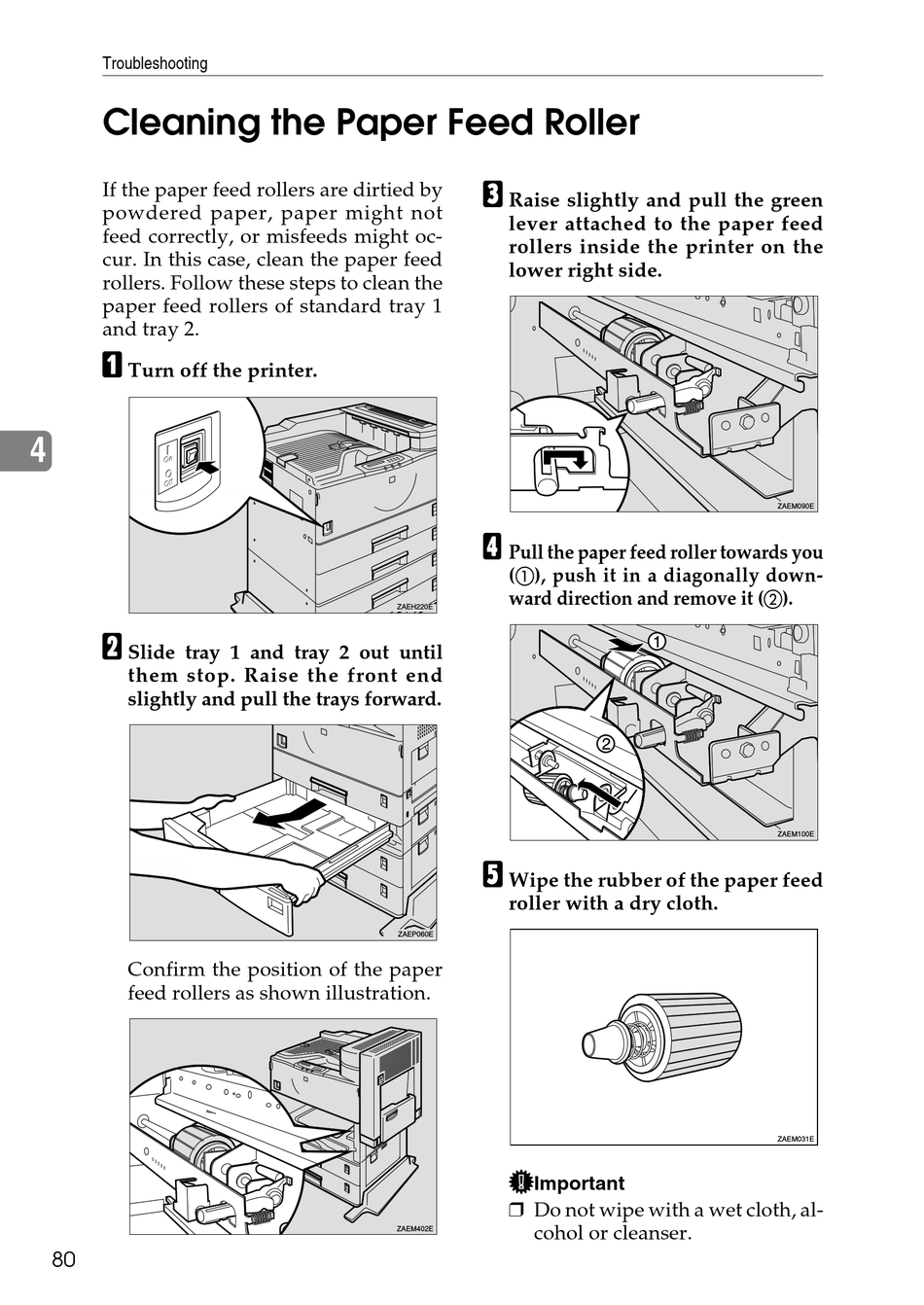

Cleaning the Paper Feed Roller

If the paper feed rollers are dirtied by
powdered paper, paper might not
feed correctly, or misfeeds might oc-
cur. In this case, clean the paper feed
rollers. Follow these steps to clean the
paper feed rollers of standard tray 1
and tray 2.
A
Turn off the printer.
4
B
Slide tray 1 and tray 2 out until
them stop. Raise the front end
slightly and pull the trays forward.
Confirm the position of the paper
feed rollers as shown illustration.
80
C
Raise slightly and pull the green
lever attached to the paper feed
rollers inside the printer on the
lower right side.
D
Pull the paper feed roller towards you
(A), push it in a diagonally down-
ward direction and remove it (B).
ZAEH220E
E
Wipe the rubber of the paper feed
roller with a dry cloth.
ZAEP060E
Important
❒ Do not wipe with a wet cloth, al-
cohol or cleanser.
ZAEM402E
ZAEM090E
ZAEM100E
ZAEM031E
