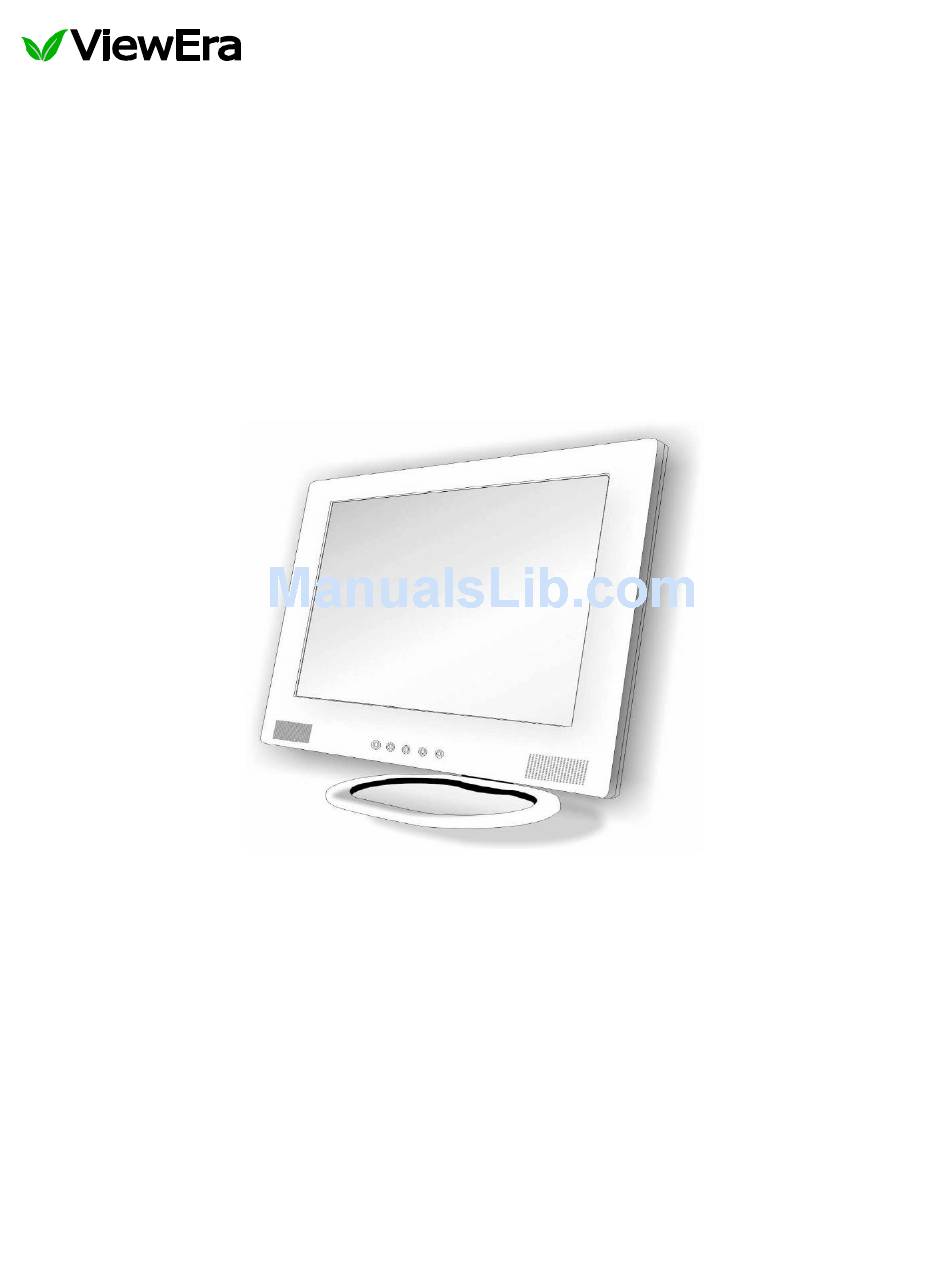

Page 1: User Manual
TFT-LCD SECURITY MONITOR USER MANUAL V151, V172, V191 BN Series www.viewera.com Rev 1.0... -
Page 2: Table Of Contents
Table of Contents EMC Compliance …………………..……………………………………………………….……...2 Important Precautions ...3 1. Introduction 1.1 General …………………………………………………………………………………………..4 1.2 Features …………………………………………..……………………………………………..4 1.3 Package contents .……………………………………………………………………..……….4 2. Installation 2.1 Connecting the signal cable ...5 2.2 Connecting the power adapter and power cord ...5 2.3 Connecting the audio cable ...5 2.4 Installing the monitor base ...5 2.5 Power on ...6 2.6 Choosing the optimal resolution ...6... -
Page 3: Emc Compliance
EMC COMPLIANCE This device has been tested and found to comply with the standards for a class B digital device, pursuant to Part 15 of FCC Rules. Those standards are designed to provide reasonable protection against harmful interference in a residential installation. This device generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Important Precautions
IMPORTANT PRECAUTIONS 1. Before using this device, please read all the instructions in this manual carefully. 2. Please keep the manual carefully for future reference. 3. Unplug this device from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp or wet cloth to clean. -
Page 5: Introduction
Introduction 1.1 General Thank you for purchasing ViewEra’ s LCD security monitor which incorporates high quality display, multiple video inputs, and power-saving energy management into a light-weighted LCD monitor. The LCD video monitor uses color active matrix thin-film-transistor (TFT) liquid crystal display to provide superior display performance. -
Page 6: Installation
2. Installation The monitor is equipped with an automatic sensing AC power adapter for a voltage range from 100 to 240 VAC at a frequency of 50 to 60 Hz. Before connecting the cables, please make sure that the monitor and the computer power are both turned off. -
Page 7: Power On
2.5 Power on Turn on your monitor and computer. The LED indicator will light green when the screen is under normal condition. If the LED indicator lights amber, please check if the signal cable is securely connected between the computer and the monitor. 2.6 Choosing the optimal resolution 1) Double click the Display icon in the Control Panel. -
Page 8: User Controls
3. User Controls 3.1 Control buttons (3) (4) (5) (6) (1), (2) 1) Power button It is used to turn on or off monitor. 2) Power indicator When the monitor is under normal working condition, the indicator will light green; if the monitor is under power saving mode or has no signal input, the indicator will light amber. -
Page 9: Osd Menu In Vga Mode
3.2 OSD menu in VGA mode Press “ 1” button to enter the OSD main menu. See the Figure as below. Press “ 1” then press “ ” or △ “ “ to move the highlight to the desired item and then press “ 1” button to enter. Press “ ”... - Page 10 b. Press “ ” or “ “ to increase or decrease the contrast of the display. Then press “ 1” to confirm the △ ▽ adjustment and back to OSD main menu. 2) Brightness a. Press “ ” or “ “...
- Page 11 3) Sharpness a. Press “ ” or “ “ to move the highlight to Sharpness and press “ 1” to enter. △ ▽ b. Press “ ” or “ “ to increase or decrease the sharpness of the display. Press “ 1” to confirm the △...
- Page 12 4) Color Temperature a. Press “ ” or “ “ to move the highlight to Color Temperature and press “ 1” to enter. △ ▽ b. Press “ 1” to select preset color temperature settings, like Cool, Natural, Warm, or select User to adjust Red, Green, Blue independently.
- Page 13 5) User RGB If User is selected, press “ ” or “ “ to move the highlight to Red, and then press “ 1” to enter the △ ▽ adjustment of Red,which is done by pressing “ ” or “ “...
- Page 14 6) Image Press “ 1” to get the OSD, press “ 1” then “ “ 1” to enter Image sub-menu. Then press “ Position, Phase or Clocks. 6.1) Auto Tune: Press “ ” or “ △ image position, pixel clock and phase to optimum, and then press “ “...
- Page 15 b. Press “ ” or “ “ to adjust the horizontal position. Then press “ 1” to confirm the adjustment and back to △ ▽ Image menu. 6.3) V Position a. Press “ ” or “ “ to move the highlight to V Position and press “ 1” to enter. △...
- Page 16 b. Press “ ” or “ “ to move the vertical position of OSD . Then press “ 1” to confirm the adjustment and △ ▽ back to Image menu. 6.4) Phase a. Press “ ” or “ “ to move the highlight to Phase and press “ 1” to enter. △...
- Page 17 b. Press “ ” or “ “ to adjust the phase of signal. Then press “ 1” to confirm the adjustment and back to △ ▽ Image menu. 6.5) Clocks a. Press “ ” or “ “ to move the highlight to Clocks and press “ 1” to enter. △...
- Page 18 b. Press “ ” or “ “ to adjust the clock of signal. Then press “ 1” to confirm the adjustment and back to △ ▽ Image menu.
- Page 19 3.2.1 Audio menu Press “ 1” to get the OSD, press “ enter Audio adjustment,which is done by pressing “ 1) Volume a. Press “ ” or “ “ to increase or decrease the volume of the built-in speakers. Then press “ 1” to confirm △...
- Page 20 3.2.2 Feature Controls Press “ 1” to get the OSD, press “ Feature Controls sub-menu. Then press “ OSD Controls, or Factory Recall. 1) Sleep Timer a. Press “ ” or “ “ to move the highlight to Sleep Timer and press “ 1” to enter. △...
- Page 21 Press “ ” or “ “ to move the highlight to OSD Controls and press “ 1” to enter. There are three options △ ▽ under OSD Controls: OSD H Position, OSD V Position, OSD Rotation, and OSD Timer. 3.1) OSD H Position a.
- Page 22 b. Press “ ” or “ “ to adjust the horizontal position of OSD menu. Then press “ 1” to confirm the △ ▽ adjustment and back to OSD Controls sub-menu. 3.2) OSD V Position a. Press “ ” or “ “...
- Page 23 b. Press “ ” or “ “ to adjust the vertical position of OSD menu. Then press “ 1” to confirm the adjustment △ ▽ and back to OSD Control sub-menu. 3.3) OSD Rotate OSD menu can be displayed in different directions. The options of OSD rotation can be Normal, Down, Mirror, Left or Right by pressing “...
- Page 24 3.4) OSD Timer a. Press “ ” or “ “ to move the highlight to OSD Timer and press “ 1” to enter. △ ▽ b. Press “ 1” to adjust the length of time in seconds for which OSD menu appears on the screen. Then press “...
-
Page 25: Osd Menu In Video Mode
3.3 OSD menu in AV mode When OSD menu is not present on the screen, you can press “ 2” to switch the signal source to AV mode. Press “ 1” to get OSD menu in AV mode and press “ Audio, or Feature Controls. -
Page 26: Dead Pixel Policy
8 pixels within the first year of purchase. 5. Warranty & Customer Service Warranty ViewEra warrants the V151, V172, and V191 BN series TFT-LCD monitors for 1 year on LCD panel, 2 years on parts and labor. For detail information, please refer to our website. (http:// www.viewera.com/warranty.htm) Customer Service Contact your ViewEra retailer or ViewEra for customer services. -
Page 27: Troubleshooting
If the LED light on the power adapter is off, then it is required to replace the power adapter. If the LED light on the monitor power and the power adapter both come on, please contact support@viewera.com for assistance. 2) “ No Input Signal” appears. -
Page 28: Specifications
Specifications are subject to change without notice. The following specification sheet may not be updated with specification or design changes. For the latest specification information, please refer to ViewEra’ s product page on the website. a. 15” security monitor Model... - Page 29 b. 17” security monitor Model Features Panel Type: Screen Size: Pixel Pitch: Brightness: Contrast Ratio: Response Time: Viewing Angle(H / V) Max. Resolution: Display Color Video Input Video Output Power Supply Input voltage: Output rating: Power Consumption Audio Frequency Dimensions(set size) Safety &...
- Page 30 Audio Frequency Dimensions(set size) Safety & EMI Weight Operating Conditions Storage Conditions: Wall mount V191 BN Series Active TFT-LCD 19” diagonal 0.294 (W) ×0.294 (H) mm Typical: 270 cd/㎡ Typical: 700:1 Typical: 8 ms Typical: 150°/135° 1280 (W) x 1024 (H) 16.2M...
