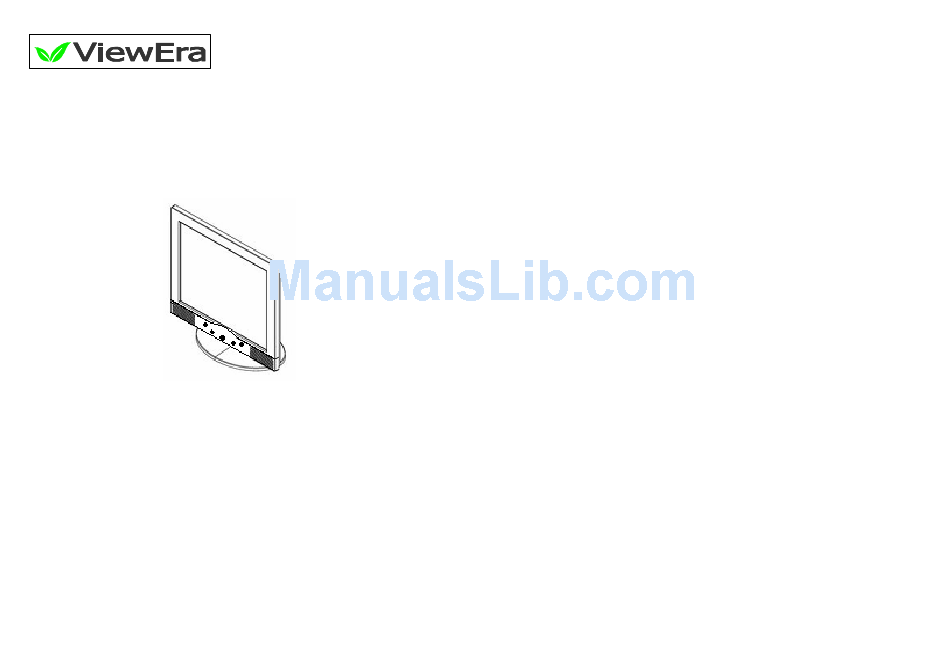

- Page 1 17” TFT-LCD TV MONITOR V171HT USER’ S MANUAL Rev. 1.0 www.viewera.com...
-
Page 2: Table Of Contents
10. Trouble Shooting 1. Introduction Product Description Congratulations on your purchasing ViewEra LCD TV monitor. It incorporates high quality display into a small light weighted module. It has power-saving capabilities and emits no radiation. You will certainly benefit from this monitor in lots of ways; to name some of them: comfort safety, and environmental protection. -
Page 3: Product Features
Product Features High contrast ratio TFT LCD display supports resolution up to SXGA 1280 × 1024. @75Hz. Wall mountable with. Built-in speakers provide sound performance. Power management system conforms to VESA DPMS standard. Support Plug & Play, no need for driver installation. ... -
Page 4: Control Functions
Power and extension cords ♦ Do not allow anything to rest on the power cord. ♦ Do not locate this product where persons will walk on the cord. ♦ Use the proper power cord with correct attachment plug type. If the power source is 120V AC, use a power cord that has UL and C-UL approvals. - Page 5 OSD Controls Monitor Function Selection Menu： AUTO ADJUST Select this function to obtain the best display quality and adjust the image position . BRIGHTNESS Adjust the brightness by using ＋ and － buttons. Adjust the contrast by using ＋ and － buttons. CONTRAST Adjust the clock by using ＋...
- Page 6 Color Temperature and RGB Adjusting Menu： Color temperature selection --6500K, 7500K and COLOR TEMP. 9300K. Red pixel brightness adjustment. GREEN Green pixel brightness adjustment. BLUE Blue pixel brightness adjustment. Page 8 OSD Function Selection Menu： EXIT OSD Exit the OSD menu. Press ＋...
- Page 7 【AV,TV】 Control Button Front View ﹝5﹞ ﹝4﹞ ﹝1﹞ ﹝2﹞ ﹝3﹞ 1. Power Switch Power switch and remote sensor 2. Decrease (－) Volume decrease, OSD menu selection downward and channel down (－) in TV mode. 3. Increase (＋) Volume increase, OSD menu selection upward and channel up (＋) in TV mode.
-
Page 8: Ch Fine Tune
Tools Menu： Adjust the volume by using ＋ and － buttons. VOLUME MUTE Speakers are mute. RESET Reset function. INPUT Select input signal (PC→AV→S-Video→TV). Page 12 ** TV Mode only ** TV Function Selection Menu： CH SEARCHING TV channel auto searching CH EDIT Add or delete channel. -
Page 9: Input Diagrams
3. Input Diagrams Inputs 【1】 【2】 【3】 【4】 【5】 【6】 【7】 1. TV TUNER IN TV Tuner or cable signal input 2. DC IN DC power jack. 3. AV IN Composite video signal input. 4. S-VIDEO IN S-Video signal input. 5. -
Page 10: Product Specifications
5. Product Specifications Model V171HT Spec LCD Display 17” Active matrix TFT LCD panel Pixel Pitch 0.264(H) x 0.264(V) mm Max. Resolution 1280(H) x 1024(V), SXGA Contrast Ratio Typical: 500 : 1 (Min: 400:1) Brightness Typical : 300 cd/m2 (Min : 250) -
Page 11: Dead Pixel Policy
5 pixels within the first year from the date of purchase. 7. Warranty and Customer Service Warranty ViewEra warrants the 15” /17” TFT-LCD monitors for one year for parts and labor from the date of purchase. For detail information, please refer to our website. (http:// www.viewera.com/warranty.htm) Customer Service Contact your ViewEra retailer or ViewEra for after sale service. -
Page 12: Remote Control Function
9. Remote Control Function FUNCTION Power Channel Adjustment Volume Adjustment Mute OSD Adjustment Page 20 10. Trouble Shooting 1) Power on but no picture → Make sure the VGA cable is tightly connected from the video output connector on the video card to the video input connector on the monitor. →... - Page 13 6) Residue image → I f a n i m a g e r e m a i n s o n t h e s c r e e n f o r a n e x t e n d e d p e r i o d o f t i m e , i t m a y be imprinted in the screen and leave a residue image.
