ViewEra V202 Series User Manual

20.1" wide screen tft-lcd monitor
Hide thumbs Also See for V202 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

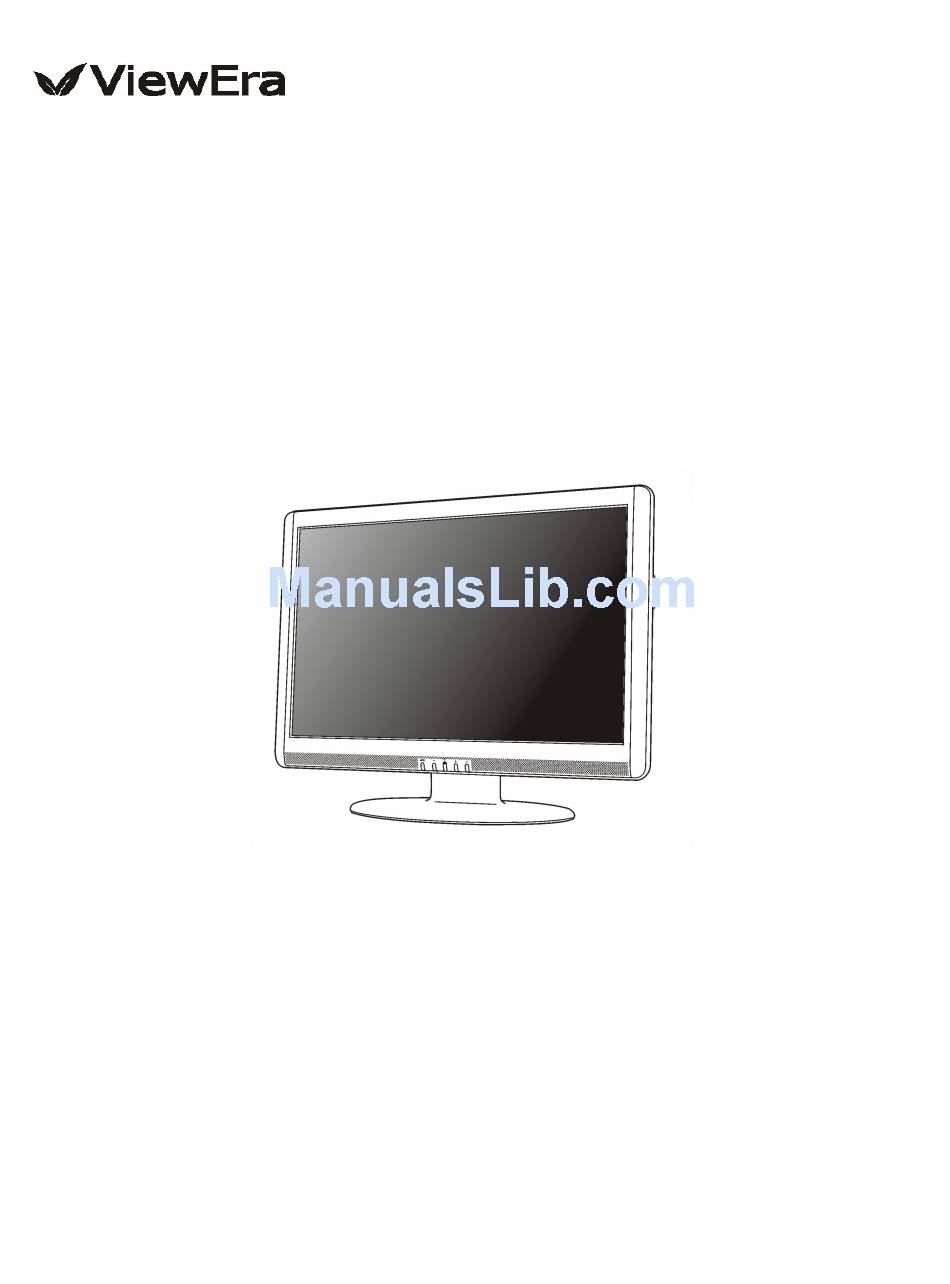

20.1 " WIDE SCREEN
TFT-LCD MONITOR
V202 Series

USER MANUAL

www.viewera.com
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V202 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ViewEra V202 Series

Summary of Contents for ViewEra V202 Series

  • Page 1: User Manual

    20.1 " WIDE SCREEN TFT-LCD MONITOR V202 Series USER MANUAL www.viewera.com Rev. 1.0...

  • Page 2: Table Of Contents

    Table of Contents EMC Compliance …………………..……………………………………………………….……...1 Important Precautions ...2 1. Package contents .……………………………………………………………………..……….3 2. Installation……………………………………………………………………………………….3 2.1 Rear panel……………………...3 2.2 Installation……………………………………………...4 2.3 Resolution setup………...5 3. Controls functions……………………………………………………………………………..6 3.1 User controls…...6 3.2 OSD menu…...6 4. Specifications ...8 5. Dead Pixel Policy ………………………………………………………………………….…..9 6.

  • Page 3: Emc Compliance

    EMC COMPLIANCE This device has been tested and found to comply with the standards for a class B digital device, pursuant to Part 15 of FCC Rules. Those standards are designed to provide reasonable protection against harmful interference in a residential installation. This device generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Important Precautions

    IMPORTANT PRECAUTIONS 1. Before using this device, please read all the instructions in this manual carefully. 2. Please keep the manual carefully for future reference. 3. Unplug this device from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp or wet cloth to clean.

  • Page 5: Package Contents

    1. Package Contents Unpack the package and check you have the following items.  20.1"TFT-LCD monitor  VGA signal cable  Power cord  User manual  DVI signal cable  Audio cable If any of the items is missing, please contact with your dealer at which you purchased the monitor.

  • Page 6: Installation

    2.2 Installation The monitor is equipped with an automatic sensing AC power adapter for a voltage range from 100 to 240 VAC at a frequency of 50 to 60 Hz. Before connecting the cables, please make sure that the monitor and the computer power are both turned off. Please follow the steps to install your monitor. 2.2.1 Connecting the signal cable Plug one end of the VGA cable or DVI cable to the computer and the other end to the video signal connector on the monitor, and then tighten the two screws on the cable connector.

  • Page 7: Resolution Setup

    Control Panel > Display > Settings > Advanced > List All Modes For V202 series, please set to “ 1680 × 1050 @ 60Hz” . Note: If your video/ graphic card does not support the resolution of 1680 x 1050, then you can try to...

  • Page 8: Controls Functions

    3. Control Functions 3.1 User Controls The monitor digital control functions are located on the front panel. They are shown in the figure below and described in the following paragraphs. 1. Power switch with LED indicator key: It is used to turn on or off the monitor. When the monitor is turned on, the LED is lit up in green (or blue).
  • Page 9 8. Signal Source: Change the signal mode between VGA and DVI on OSD. 9. Color: Adjust the color temperature of the picture. 9300K - Select the color temperature of 9300K. 7800K - Select the color temperature of 7800K. 6500K - Select the color temperature of 6500K. User mode: Adjust R.

  • Page 10: Specifications

    Power Consumption Audio Frequency Dimensions (pack size) Safety & EMI Weight Operating Conditions Storage Conditions: Wall mount V202 Series Active TFT-LCD 20.1"diagonal 0.258 (W) × 0.258 (H) mm 270 cd/m (min), 300 cd/ m (typical) 500:1 (min,),800:1 (typical) 5 ms (typical) 160°/160°...

  • Page 11: Dead Pixel Policy

    Please refer to the product specification on ViewEra’ s website. 6. Warranty & Customer Service a. Warranty ViewEra warrants the V202 series TFT-LCD monitors for 1 year on LCD panel, parts and labor. For detailed information, please refer to our website. (http:// www.viewera.com/warranty.htm) b.

  • Page 12: Troubleshooting

    1) No image  Check if the power cord、the monitor and the power plug are well connected.  Check if the monitor is off, please contact support@viewera.com for assistance. 2) “ No Input Signal” appears.  Check if the VGA cable is tightly connected between the video output connector on the video card and the video input connector on the monitor.
