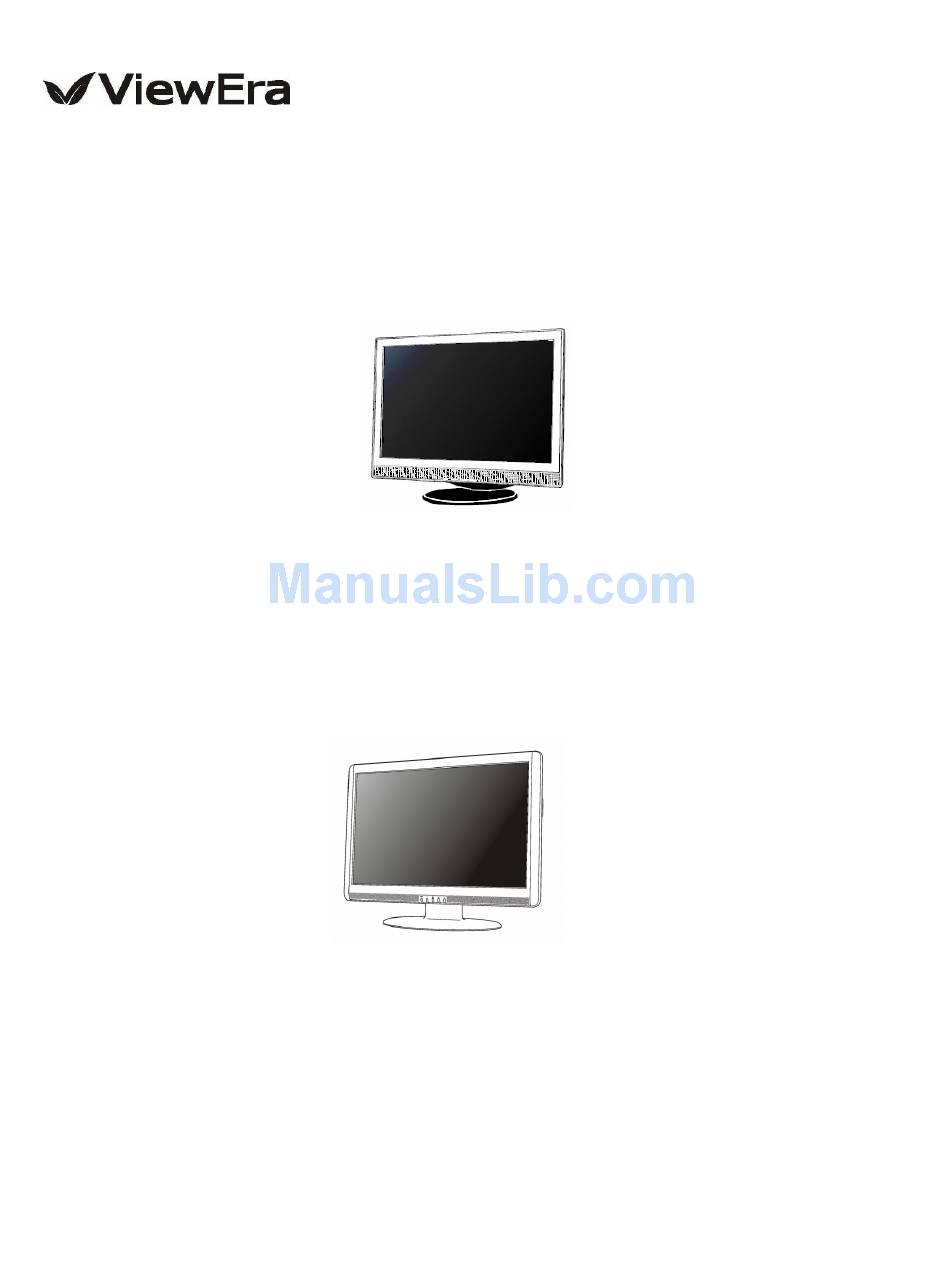

- Page 1 19” / 20.1” / 22” WIDE SCREEN TFT-LCD MONITOR V193/ V220 Series V202 Series USER MANUAL www.viewera.com Rev. 2.0...
-
Page 2: Table Of Contents
Table of Contents EMC Compliance …………………..……………………………………………………….……...1 Important Precautions ...2 1. Package contents .……………………………………………………………………..……….3 2. Installation……………………………………………………………………………………….3 2.1 Rear panel……………………...3 2.2 Installation……………………………………………...4 2.3 Resolution setup………...6 3. Controls functions……………………………………………………………………………..7 3.1 User controls…...7 3.2 OSD menu…...8 4. Specifications ...9 5. Dead Pixel Policy ………………………………………………………………………….…..12 6. -
Page 3: Emc Compliance
EMC COMPLIANCE This device has been tested and found to comply with the standards for a class B digital device, pursuant to Part 15 of FCC Rules. Those standards are designed to provide reasonable protection against harmful interference in a residential installation. This device generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 4: Important Precautions
IMPORTANT PRECAUTIONS 1. Before using this device, please read all the instructions in this manual carefully. 2. Please keep the manual carefully for future reference. 3. Unplug this device from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp or wet cloth to clean. -
Page 5: Package Contents
1. Package Contents Unpack the package and check you have the following items. TFT-LCD monitor (19 inch for V193 series, 20.1 inch for V202 series, 22 inch for V220 series) VGA signal cable Power cord User manual ... -
Page 6: Installation
Please follow the steps to install your monitor. Before connecting cables to the V193 or V220 monitor, you need to remove the plastic cover on the back of the monitor at first. - Page 7 1. Take the monitor and the base out of the box and place its side on the table. 2. 1 For V193 and V220 series, align the three bolt holes on the monitor base with the three bolt hoes on the monitor arm, and then screw the threes bolts with a screwdriver.
-
Page 8: Resolution Setup
Control Panel > Display > Settings > Advanced > List All Modes (a) For V193 series, please set resolution to “ 1440 x 900 @ 60 Hz” . (b) For V202 and V220 series, please set resolution to “ 1680 × 1050 @ 60 Hz” . -
Page 9: Controls Functions
3.1 User Controls The monitor digital control functions are located on the front panel. They are shown in the figure below and described in the following paragraphs. (a) V193 and V220 series (b) V202 series 5 4 1 3 2 1. -
Page 10: Osd Menu
3.2 OSD menu a. OSD menu with VGA connection 1. Auto Adjustment: Adjust geometry of the picture automatically. (for VGA mode only) 2. Brightness: Adjust the brightness level of the picture. 3. Contrast: Adjust the difference in luminance between light and dark areas of the picture. 4. -
Page 11: Specifications
4. Specifications Specifications are subject to change without notice. For the latest specification information, please refer to ViewEra’ s product page on the website. Model Features Panel Type: Size: Pixel Pitch: Brightness: Contrast Ratio: Response Time: Viewing Angle(H / V) Max. - Page 12 Model Features Panel Type: Size: Pixel Pitch: Brightness: Contrast Ratio: Response Time: Viewing Angle(H / V) Max. Resolution: Display Color Supported resolution Video Input Display Area Power Supply Input voltage: Power Consumption Audio Frequency Dimensions (pack size) Safety & EMI Weight Operating Conditions Storage Conditions:...
- Page 13 Model Features Panel Type: Size: Pixel Pitch: Brightness: Contrast Ratio: Response Time: Viewing Angle(H / V) Max. Resolution: Display Color Supported resolution Video Input Display Area Power Supply Input voltage: Power Consumption Audio Frequency Dimensions (pack size) Safety & EMI Weight Operating Conditions Storage Conditions:...
-
Page 14: Dead Pixel Policy
Please refer to the product specification on ViewEra’ s website. 6. Warranty & Customer Service a. Warranty ViewEra warrants the V193, V202 and V220 series TFT-LCD monitors for 1 year on LCD panel, parts and labor. For detailed information, please refer to our website. (http:// www.viewera.com/warranty.htm) b. -
Page 15: Troubleshooting
1) No image Check if the power cord、the monitor and the power plug are well connected. Check if the monitor is off, please contact support@viewera.com for assistance. 2) “ No Input Signal” appears. Check if the VGA cable is tightly connected between the video output connector on the video card and the video input connector on the monitor.
