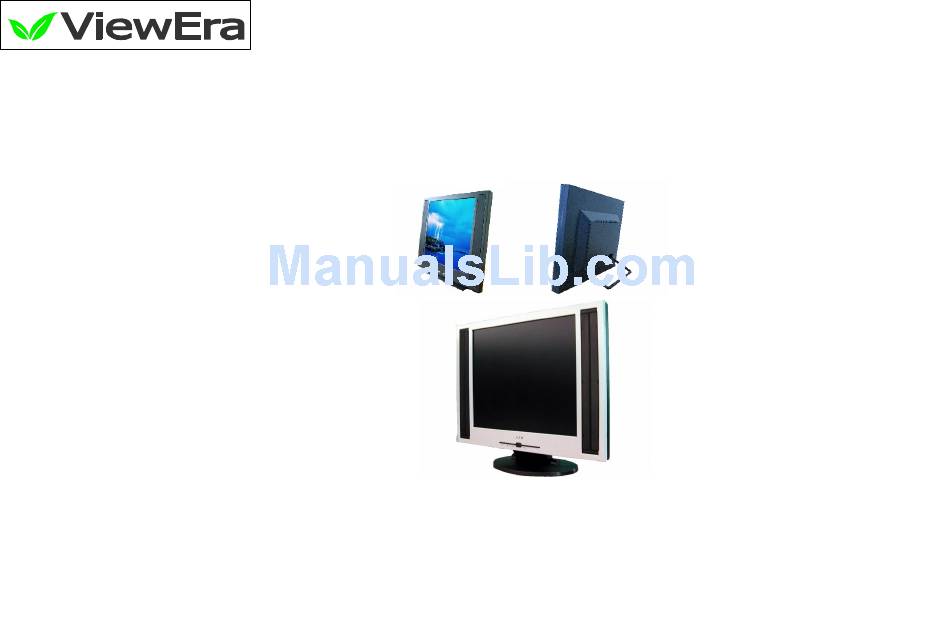

Page 1: User Manual
TFT-LCD TV MONITOR V180/ V180T / V190T Series USER MANUAL www.viewera.com Rev 1.1... -
Page 2: Table Of Contents
MENU ： 1. Introduction ………………...… Product Description Package Contents……………………...… Product Features…………………………………………………………………………..… Screen Cleaning Techniques ………………………………………………………….…… Additional ………………………………………………………………………………… 2. Control Functions Front Panel Controls ………………………………………………………………….…… OSD Controls ……………………………………………………..………………………... 3. Input Diagrams 4. Installation ……………………………………………….…………………………….….…… 5. Tilting Angles……………………………………………………………………………….…… 6. Product Specifications………………………………………………………………………..… 7. Display Modes………………………………………………………………………………..… 8. -
Page 3: Product Description
Product Description Congratulations on your purchase of the ViewEra 18” / 19” LCD TV monitor. It incorporates high quality display into a small light weighted module. It has power-saving capabilities and emits no radiation. You will certainly benefit from this monitor in lots of ways;... -
Page 4: Product Features
Product Features High contrast color TFT LCD display support resolution up to SXGA 1280 x 1024. @75Hz Compatible with IBM VGA, IBM SXGA, and Macintosh standards. Imbedded audio system provides sound performance. AV-In and S-video, TV Tuner（Optional） ... -
Page 5: Additional
Additional Read all of these instructions and save them for later use. Follow all warnings and instructions on the product. Product Do not cover or block the vent holes in the case. Do not insert sharp objects or spill liquid into the LCD monitor through cabinet slots. They may cause accident fire, electric shock or failure. - Page 6 Power and extension cords Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. Use the proper power cord with correct attachment plug type. If the power source is 120V AC, use a power cord that has UL and C-UL approvals.
-
Page 7: Front Panel Controls
2. Control Functions a. Front Panel Controls 【PC, Audio】 1) Power Switch：Power switch LED & Remote sensor (Optional). 2) Channel Up (▲) & Auto Adjust: On TV mode, it can adjust channel up. On PC mode, it can adjust signal clock, phase and image position automatically. 3) Channel Down (▼) : On TV mode, it can adjust channel down. - Page 8 Monitor Function Selection Menu： Auto Adjust：Select this function to obtain the best display quality. Brightness：Adjust the brightness by using ＋/ － button. Contrast：Adjust the contrast by using ＋/ － buttons. Clock：Adjust the clock by using ＋/ － buttons. Phase：Adjust the phase by using ＋/ － buttons. Horizontal Position：Press ＋/－, the image moves to right/ left ;...
- Page 9 Tools Menu：. Volume：Adjust the volume by using ＋/ － buttons Mute：Turn off speakers Reset：Recall factory settings IN INPUT：PC→AV→S-Video→TV function selection Page 7...
- Page 10 Color Temperature and RGB Adjustment Menu ： Color Temperature：Color temperature selection Red：Red light brightness adjustment Green：Green light brightness adjustment Blue：Blue light brightness adjustment Page 8...
- Page 11 OSD Function Selection Menu： Exit OSD：Exit the OSD function selection menu. OSD – H- Position：Press ＋/ － to move the OSD to right/ left. OSD – V- Position：Press ＋/ － to move the OSD menu upward/ downward. OSD DURATION：Set the OSD display time. LANGUAGE：Set the OSD display language.
- Page 12 b. Front Panel Controls【AV】 Power switch & Remote sensor 2. Menu 3.,(-), 4. (+) 5. Source 1. Power Switch：Power switch LED & Remote sensor(Optional) 2. Menu: Press this button and the OSD menu pops up on the screen. It can be used to select the OSD control options on the screen.
- Page 13 OSD Control【AV】 Monitor Function Selection Menu： Brightness：Adjust the brightness by using ＋/ － button. Contrast：Adjust the contrast by using ＋/ － buttons. Saturation：Adjust the Saturation by using ＋/ － buttons. TINT：Adjust the Tint by using ＋/ － buttons. Sharpness：Adjust the Sharpness by using ＋/ － buttons. Page 11...
- Page 14 Tools Menu：. Volume：Adjust the volume by using ＋/ － buttons Mute：Turn off speakers Reset：Recall factory settings INPUT：PC→AV→S-Video→TV mode selection Page 12...
- Page 15 OSD Function Selection Menu： Exit OSD：Exit the OSD function selection menu. OSD – H- Position：Pressing ＋/ － to move the OSD to right/ left. OSD – V- Position：Pressing ＋/－ moves the OSD menu upward/ downward OSD DURATION：Set the OSD display time LANGUAGE：Set the OSD display language Page 13...
- Page 16 【TV】 Front Panel Controls 1. Power switch LED& Remote sensor 5.Source select 4. OSD Menu (select) 7. Channel down▼ 6. Channel up▲ 2. Adjust (decrease－) 1. Power switch：Power switch LED & Remote sensor 2. “ －” : This button is used to decrease the value of selected. 3.
- Page 17 Monitor Function Selection Menu： BRIGHTNESS：Adjust the brightness by using ＋/ － button. CONTAST：Adjust the contrast by using ＋/ － buttons. SATURATION：Adjust the contrast by using ＋/－ buttons. TINT：Adjust the contrast by using ＋/ － buttons. SHARPNESS：Adjust the contrast by using ＋/ － buttons. Page 15...
- Page 18 Tools Menu：. Volume：Adjust the volume by using ＋/ － buttons. Mute：Turn off speakers. Reset：Recall factory settings. INPUT：PC→AV→S-Video→TV function select. Page 16...
- Page 19 TV Function Selection Menu： CH Searching： TV channel auto searching and auto save channels CH EDIT：Add or delete the channel by pressing ＋/ －. CH Fine tune： Adjust the TV signal reception to get better image quality by pressing ＋/ －. AIR -Cable：Select the TV signal input by air (TV) or cable (CATV) by pressing ＋/ －.
- Page 20 OSD Function Selection Menu： Exit OSD：Exit the OSD function selection menu. OSD – H- Position：Press ＋/ － to move the OSD menu to right/ left. OSD – V- Position：Press ＋/ － to move the OSD menu upward/ downward. OSD DURATION：Set the OSD display time. LANGUAGE：Set the OSD display language.
-
Page 21: Input Diagrams
3. Inputs Diagrams Inputs 【PC】 【AV】 【TV】 【1】 【2】 【3】 【4】 【5】 【6】 【7】 【1】TV TUNER IN：TV tuner Air or Cable signal input.（Option） 【2】DC IN：DC power 12V/3A input from adapter. 【3】AV IN：RCA jack AV signal input.（Option） 【4】S-VIDEO IN：S-Video signal input. （Option） 【5】LINE OUT：Sound signal output(Stereo Phone Jacket). -
Page 22: Installation
4. Installation Electrical Connection Please follow the instruction below to properly connect the LCD monitor to external electrical source 1. Connect the female-end of the power cable to the transformer. Connect the male-end of the power cable to the wall outlet or extension cable. -
Page 23: Tilting Angles
4. Tilting Angles For viewing clarity, you can tilt the LCD forward (up to 10 degrees) or backward (up to 30 degrees) Down：10 Up：30 Page.21... -
Page 24: Product Specifications
6. Product Specifications Type Spec (Video) LCD Display 19” Active matrix TFT LCD panel Pixel Pitch 0.294(H) x 0.294(V) mm Max. Resolution 1280(H) x 1024 (V) SXGA Set Size 580(H) x 450(W) x 175(D) mm Pack Size 690(H) x 535(W) x 275(D) mm Contrast Ratio Brightness Response Time... -
Page 25: Display Modes
7. Display Modes Mode Resolution H Freq (kHz) 640 x 350 31.469 640 x 480 31.469 640 x 480 37.861 640 x 480 37.500 720 x 400 31.469 800 x 600 35.156 800 x 600 37.879 800 x 600 48.077 800 x 600 46.875 1024 x 768... -
Page 26: Service Information
LCD TV monitors are warranted for one the date of purchase. Dead pixels are not within the warranty. Service Please contact your ViewEra dealer for warranty service. For out-of-warranty service, you may contact either ViewEra dealers or ViewEra. year for all parts and... -
Page 27: Windows Setup
10. Windows setup For the best display performance, please set the monitor type in Windows. Please select as follows: Control Panel > Monitor > Settings > Advancde > Monitor > Change > List all modes For 1280 x 1024, please set to “ SXGA 1280*1024 @60/ 75Hz “ (Option Tuner setup@60Hz) Page 25... - Page 28 (For 1024 x 768, please set to “ SVGA 1024 x 768 @75Hz / @70Hz / @60Hz” (Option tuner setup@60Hz) Page 26...
-
Page 29: Remote Control Functions
11. Remote Control Functions... - Page 30 Page 27...
