ViewEra V140 User Manual

14" tft-lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ViewEra
14" TFT-LCD MONITOR
V140
USER' S MANUAL
www.viewera.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V140 and is the answer not in the manual?

Questions and answers

Related Manuals for ViewEra V140

Summary of Contents for ViewEra V140

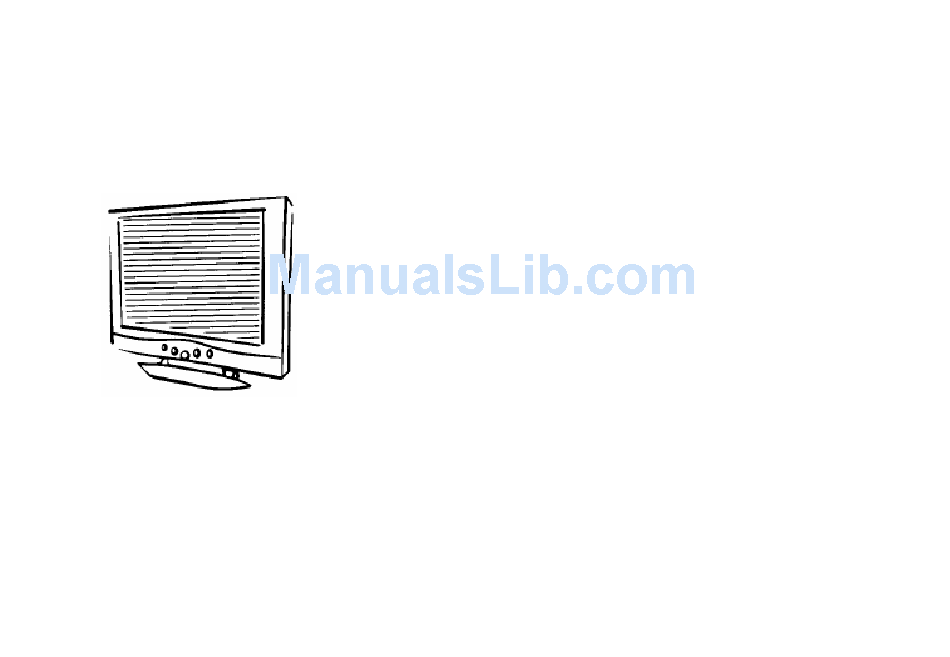

  • Page 1 ViewEra 14” TFT-LCD MONITOR V140 USER’ S MANUAL www.viewera.com...
  • Page 2 15 pin D-sub signal cable Page. 5  Sound Card Cable Page. 6~10  AC power cable  Adaptor Page. 11  User’ s manual Page. 12 Page. 13 Page. 14 Page. 14 Page. 15~16 Page. 17 the ViewEra V140 LCD Page 1...
  • Page 3 Product Features  High contrast color TFT LCD display support resolution up to XGA 1024×768. @75Hz.  Compatible VESA standards.  Imbedded audio system provides sound performance.  Power management system conforms to VESA DPMS standard.  Support DDC 1/2B for Plug & Play compatibility. ...

  • Page 4: Control Function

     Power and extension cords ♦ Do not allow anything to rest on the power cord. ♦ Do not locate this product where persons will walk on the cord. ♦ Use the proper power cord with correct attachment plug type. If the power source is 120V AC, use a power cord that has UL and C-UL approvals, If the power source is a 240V AC supply, use the tandem (T blade) type attachment plug with ground conductor power cord that...

  • Page 5: Osd Controls

    OSD Controls Monitor Function Selection Menu： ：Select this function to Picture sub menu. PICTURE ADVANCED PIC ：Select this function to Advanced Picture sub menu. ：Select this function to Sound sub menu. SOUND ：Select this function to Utility sub menu. UTILITY ：Select this function to exit OSD menu.
  • Page 6 Advanced Picture Menu ： ：Pressing＋moves the display image to right ; Pressing H Position －moves the display image to left. ：Pressing＋moves the display image upward ; Pressing V Position －moves the display image downward. ：Adjust the phase using＋and－buttons. Phase ：Adjust the clock using＋and－buttons. Clock Auto Color ：Select this function to obtain the best display color.
  • Page 7 OS Language Menu： English I ：Select Small Letter Font. ENGLISH II ：Select Capitalize Letter Font. ：Return to Utility Menu. Exit OSD Control Menu ： ：Pressing＋moves the OSD menu to downward ; V Position Pressing－moves the OSD menu to upward. ：Pressing＋moves the display image right ; Pressing H Position －moves the display image left.

  • Page 8: Viewing Angles

    4. Setup Electrical Connection Please follow the instruction below to properly connect the LCD monitor to external electrical source. 1. Connect the female-end of the power cable to the transformer. Connect the male-end of the power cable to the wall outlet or extension cable. 2.

  • Page 9: Troubleshooting

    (2)Check the 15-pin video cable connectors on both ends have exactly 15 pins. If the problem is still there, please contact your ViewEra dealer or ViewEra. 7.Service Information Warranty The ViewEra V140 TFT-LCD monitors are warranted for three(3) years for all parts and one(1) year for LCD panels from the date of purchase.

  • Page 10: Windows Setup

    Show all List …> Stand > For 1024 ×768, please set to “ XGA 1024 × 768@75Hz” V Freq (Hz) 70.070 59.940 72.809 75.000 70.087 56.250 60.317 72.188 75.000 60.004 70.069 75.029 CWM8UMB50011 ViewEra V140 Rev. 1.1 CWS4UMB50031 Page 17...
