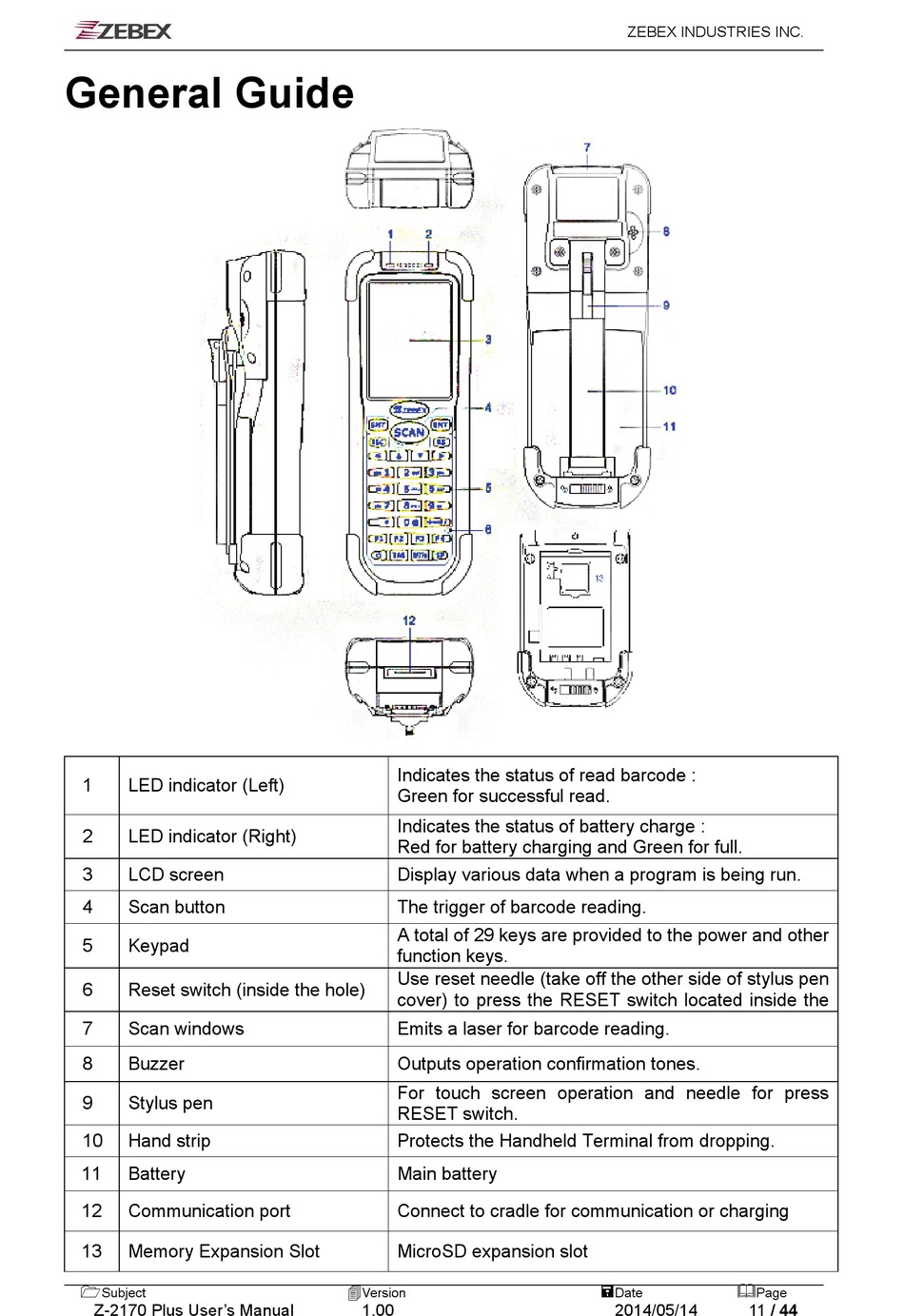

General Guide

1 LED indicator (Left)
2 LED indicator (Right)
3 LCD screen
4 Scan button
5 Keypad
6 Reset switch (inside the hole)
7 Scan windows
8 Buzzer
9 Stylus pen
10 Hand strip
11 Battery
12 Communication port
13 Memory Expansion Slot

Subject
Z-2170 Plus User's Manual
Indicates the status of read barcode :
Green for successful read.
Indicates the status of battery charge :
Red for battery charging and Green for full.
Display various data when a program is being run.
The trigger of barcode reading.
A total of 29 keys are provided to the power and other
function keys.
Use reset needle (take off the other side of stylus pen
cover) to press the RESET switch located inside the
Emits a laser for barcode reading.
Outputs operation confirmation tones.
For touch screen operation and needle for press
RESET switch.
Protects the Handheld Terminal from dropping.
Main battery
Connect to cradle for communication or charging
MicroSD expansion slot

