Table of Contents Important Notice..................iii Introduction.....................1 Scan Angles ...................2 Scan Zone ....................3 Installation....................4 Mounting....................4 External Front Window Angle and Distance .........8 Design Reference ..................9 Case 1: Reading QR code on Phone Screen...........9 Case 2: Large Window for ID cards Reading........10 Z‐5132 Image Scan Module ... -
Page 5: Introduction

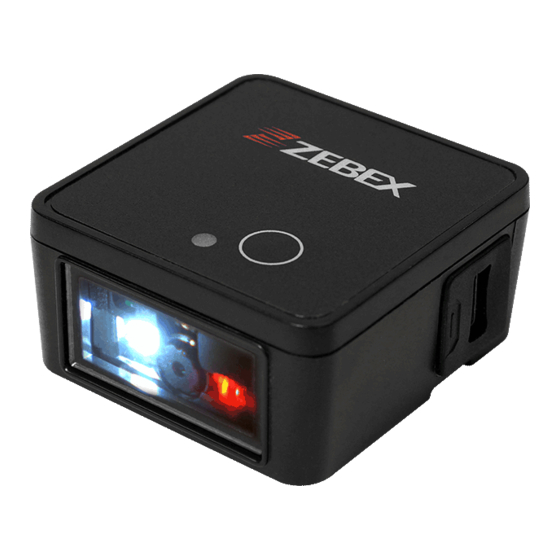

NSTALLATION UIDE Introduction High scanning speed without compromising performance, the device is a powerful 2D image scan engine that easily decodes most 1D and 2D barcodes with intuitive aiming accuracy. It also supports standard serial, USB interface that can be easily integrated with most hardware platform. The compact dimension makes installation effortless even in the most space‐constrained products, including mobile computers, kiosks, lottery machine and more. The device is the perfect solution for many industries. • Ultra small size • No separate decoder board required • Flexible interface communications • Outstanding 1D and 2D scanning performance • Captures barcodes on mobile phone, tablet, or computer screens Z‐5132 Image Scan Module 1 ... -
Page 6: Scan Angles
NSTALLATION UIDE Scan Angles See the following illustrations for the effective barcode reading angles. Z‐5132 Image Scan Module ... -
Page 7: Scan Zone
NSTALLATION UIDE Scan Zone The effective reading distance for the scanner is illustrated as below. Different quality and density of a barcode could effect it’s decode depth of field. Usually when a barcode has poor printing quality or high density, the depth of field would be shorter. It is highly suggested not place the barcode label at the extremes of depth of field as it is often easy to move out from the reading range. Z‐5132 Image Scan Module 3 ... -
Page 8: Installation
NSTALLATION UIDE Installation Mounting In this section, we will introduce how to mount the scan engine into your design. At the back of scan engine, there are two screw holes reserved for mounting, the scan engine can be fixed in any position and any angle without any degradation in performance. And to ensure the scanner reaches its best performance, the following points need to be noticed when mounting the scanner: To avoid direct sunlight or any other bright light source illuminating. When placing the barcode label, one must be careful not to over tilt, skew and/or pitch the barcode. To avoid putting the scanner in specula reflection position, the CMOS sensor will not sense the reading of any barcodes if the LED light reflects straight back. The barcode must be placed within the effective depth of field (D.O.F.) area, the effective reading distance for the barcode from the scanner. Its theory is like a camera, if the object is placed within the focal range, and the image appears clearly. But if the object is outside the focal range, the image then is blurred. And different quality and density of barcodes could affect its D.O.F.; usually a lower piece or high density of barcode, its depth of field is shorter. It is suggested to avoid using depth of field extremes range, barcode is easily moved away from the reading range. ... - Page 9 NSTALLATION UIDE For best placing position, please refer to the Decode Depth of Field drawing. Thermal Considerations Electronic components in the Z‐5132 will generate heat during the course of their operation. Operating the Z‐5132 in continuous mode for an extended period may cause temperatures to rise on MPU and decoder chip. Overheating can degrade image quality and affect scanning performance. Given that, the following precautions should be taken into consideration when integrating the Z‐5132. 1. Reserve sufficient space for good air circulation in the design. 2. Avoid wrapping the Z‐5132 with thermal insulation materials such as rubber. ...
- Page 10 NSTALLATION UIDE Dimensions: Z‐5132 Image Scan Module ...
- Page 11 NSTALLATION UIDE Structure Outline: Z‐5132 Image Scan Module 7 ...
-
Page 12: External Front Window Angle And Distance
NSTALLATION UIDE External Front Window Angle and Distance Suggest as below: External Window Spec Min Angle (+C) (-C) Material Thickness Coating (mm) Acrylic Acrylic Acrylic 10mm Glass Acrylic 2 side Z‐5132 Image Scan Module ... -
Page 13: Design Reference
NSTALLATION UIDE Design Reference Case 1: Reading QR code on Phone Screen To read QR code on the mobile phone, place the module downward for scanning. Suggest distance as below: Unit:mm Suggest Parameter: change to Phone mode for optimised results Phone Mode Z‐5132 Image Scan Module 9 ... -
Page 14: Case 2: Large Window For Id Cards Reading
NSTALLATION UIDE Case 2: Large Window for ID cards Reading A reflective mirror can be used to achieve a good reading of the QR code on the ID card and mobile phone. The reference design is as follows and attached files: Z‐5132_refract_module .stp Z‐5132 Image Scan Module ... - Page 15 NSTALLATION UIDE Suggest angle of the reflective mirror: The angle of the reflective mirror of about 33 degrees is recommended, which can reduce the reflection of some lights. Z‐5132 Image Scan Module 11 ...
- Page 16 NSTALLATION UIDE After using reflective mirror, it is recommended to change the parameters as follows: Image: switch to Mirror Mode Enable. Mirror Mode Enable. Mirror Mode Disable (Default) Illumination & Aiming Light control: If reflections exist after using the reflector and the reading performance is poor, it is recommended to change the parameters according to the following steps: Illumination ILLUM: Disable ILLUM: Enable ILLUM: Low ILLUM: Middle ILLUM: High ...
