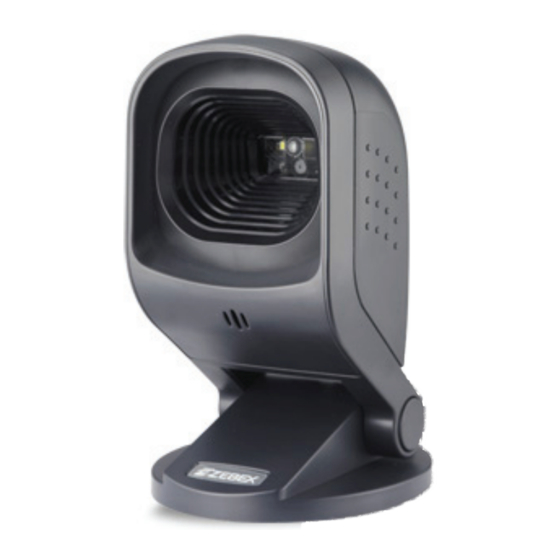

Hands-Free 2D Image Reader
Revision History
Changes to the original manual are listed below:
Version
Date
1.0
April 21, 2015
Z-6172
Service Guide
Description of Version
Initial release

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-6172 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zebex Z-6172

  • Page 1 Z-6172 Hands-Free 2D Image Reader Service Guide Revision History Changes to the original manual are listed below: Version Date Description of Version April 21, 2015 Initial release...
  • Page 2: Table Of Contents

    ERVICE UIDE Table of Contents Table of Contents................................2 Scanner Parts ..................................3 Take Apart ..................................4 Before You Start ..............................4 Important Instructions ..............................4 Tools to Prepare ..................................4 Z-6172 Service Guide 2 / 8...
  • Page 3: Scanner Parts

    ERVICE UIDE Scanner Parts The scanner includes the following parts: Name Quantity 866-617200-203 Z-6172(BK) Front case + Stand assembly (repair) 866-617200-204 Z-6172(BK) Front case cover assembly (repair) 866-617002-313 Z-6170(BK) Back case assembly 830-Z51120-ENZ Scan engine assembly 644-7319X0-000 Mylar tape 564-061720-002...
  • Page 4: Take Apart

    Heed all warnings. Tools to Prepare • Philips screwdriver. Please follow these steps to take apart Z-6172. Remove the screws (521-604000-012) from the back case. Separate the front and back case and remove the speaker connector (red circle). Z-6172 Service Guide...
  • Page 5 Remove the screws from the front case and front case cover (521-003000-6R0) and screws (521-003000- 6R0) from the speaker (red circles). Separate the front case cover, speaker, and the speaker cover. Remove the screws (521-003000-6R0) from phone jack board assembly. Z-6172 Service Guide 5 / 8...
  • Page 6 ERVICE UIDE Disconnect the phone jack board assembly (red circle). Remove the screws from the engine (521-604000-012) then remove the Mylar tape (red circle). Remove the engine and the FFC cable. Z-6172 Service Guide 6 / 8...
  • Page 7 ERVICE UIDE Separate the engine from the back case. 10. Take out the FFC cable for LED. 11. Separate the cable. Z-6172 Service Guide 7 / 8...
  • Page 8 ERVICE UIDE 12. Remove the screws to separate the engine assembly and the holder. Z-6172 Service Guide 8 / 8...
