- Page 1 Z-3220 Handheld Linear Image Scanner Service Guide Revision History Changes to the original manual are listed below: Version Date Description of Version January 31, 2013 Initial release September 9, 2013 Updated top cover and main board parts...
-
Page 2: Preface
This scanner is in conformity with CE standards. Please note that an approved, CE-marked power supply unit should be used in order to maintain CE conformance. This manual is in A4 format. Please check your printer setting before printing it out. Z-3220 Service Guide 2 / 7... -
Page 3: Table Of Contents
Table of Contents Preface..................................2 Important Notice ..................................2 Radio Notice...................................2 Radio and Television Interference............................2 For CE-Countries ...................................2 Table of Contents................................3 Introduction ...................................4 Take Apart ..................................6 Before You Start ..............................6 Important Instructions ..............................6 Tools to Prepare ..................................6 Z-3220 Service Guide 3 / 7... -
Page 4: Introduction

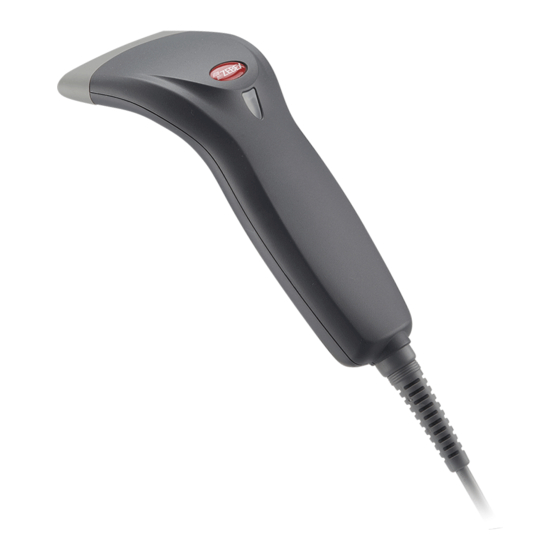

• Proprietary Ultrascan decoding technology • Light and rugged design • Advanced image capture technology • Multi-interface communication • Ideal for beginners Logo Exit Window Plate LED Indicator Trigger Communication Cable Z-3220 Service Guide 4 / 7... - Page 5 562-032200-531 Bottom engine cover 688-100000-101 Condenser 686-110000-151 Plastic lens (F14.9) 562-032200-541 Top engine cover 863-322000-903 Mainboard + CMOS sensor assembly 863-322000-201 Top cover + LED panel (white) 863-322000-202 Top cover + LED panel (black) Z-3220 Service Guide 5 / 7...
-
Page 6: Take Apart
Heed all warnings. Tools to Prepare • Philips screwdriver. Please follow these steps to take apart Z-3220. Remove the screws and the front cover from the scanner. Separate the top and bottom cover and the dust cover. Z-3220 Service Guide... - Page 7 Separate the screws, bottom cover, and main board assembly, and then remove the trigger and the rubber key. Separate the top and bottom engine cover, and then remove the condenser, plastic lens, reflective mirror, and LED board assembly. Z-3220 Service Guide 7 / 7...
