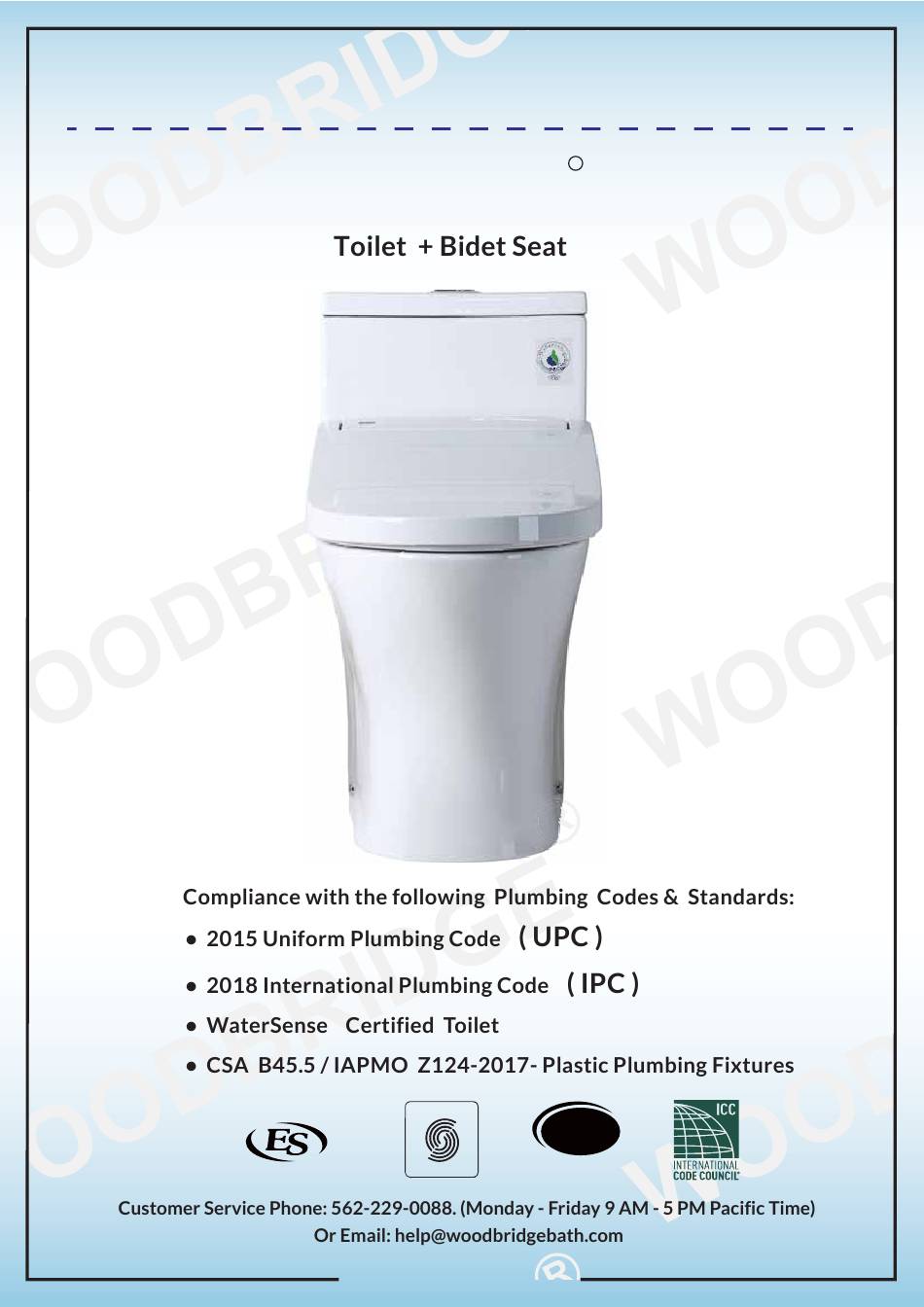

- Page 1 INSTALLATION AND CARE GUIDE WOODBRIDGE ® ® ® SCC Accredited CB-P/S ANSI ACCREDITED LISTED ISO/IEC 17065 OCPS Product Certification Body Accrédité #1000 20200818 REV. 1 www.woodbridgebath.com...
-
Page 2: Tools Required For Installation
WOODBRIDGE READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT THIS This products must be installed by a fully insured and licensed plumber only. Installation of any our product by anyone other than fully insured and licensed plumber shall void limited warranty. We recommends that such licensed plumber have experience in the installation of products. -
Page 3: Dimensions/Technical Data
WOODBRIDGE DIMENSIONS/TECHNICAL DATA IMPORTANT INFORMATION ± www.woodbridgebath.com... - Page 4 WOODBRIDGE WATER SUPPLY LOCATION & TECHNICAL INFORMATION Side View Back View Threaded Side View Tank Top View (Inside) is required. decrease IMPORTANT INFORMATION ± www.woodbridgebath.com...
- Page 5 WOODBRIDGE 1. Shut off water supply line. If you do not have shut-off valve near the toilet shut off main water supply line. 2. Flush the old toilet and make sure that tank is empty. 3. Disconnect and remove water supply line connected to the toilet's tank.
- Page 6 WOODBRIDGE CAUTION! INSTALL NEW TOILET Step 1. Lift and carefully put the toilet over the closet flange so the closet bolts can go through the mounting holes in the toilet's base. Once the bowl is in the position press the bowl down with slight twisting motion in level position towards the floor.
-
Page 7: Base Installation
WOODBRIDGE ADJUSTMENT & MAINTENANCE (DUAL FLUSH VALVE) 1. BASE INSTALLATION Gasket Check the dual flush Install the base with the Install a body of the flush Rotate the valve Install the sealing gasket valve and make sure that rubber gasket in the... - Page 8 WOODBRIDGE ADJUSTMENT & MAINTENACE (FILL VALVE) Instructions: 95mm When valve installed, the critical level mark on fill valve (identified by C.L. mark on valve body) shoud be at least 1" above top of the over flow pipe. Required: C.L. Important:...
- Page 9 WOODBRIDGE CLEANING & TROUBLESHOOTING (FILL VALVE) Shut off water supply line Carefully, take out the filter Use water to wash and clean Re-install the filter and before filter cleaning. from inlet by using pliers. the filter and adapter from any re-connect the water supply debris.
- Page 10 When using electrical products, especially when children are present, basic safety precautions shouldalways be followed, including the following: 1.The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
-
Page 11: Important Safety Instructions
WOODBRIDGE IMPORTANT SAFETY INSTRUCTIONS CAUTION – Indicates that failure to follow the instruction may cause body injury or property damage. 1. Do not install or use the product in wet places as steam room etc.This product must be connected to properly grounded power outlet socket. -
Page 12: Technical Specification
WOODBRIDGE TECHNICAL SPECIFICATION Rating pressure AC 110-120V,50/60Hz Rating power 1050-1250W Main Unit Minimum water pressure 0.07MPa (20L/min. flowing pressure). Water pressure range Maximum water pressure 0.8MPa (Hydrostatic pressure) Electrical wire length is about 1.8m Container capacity 600ml Heating power 1000W... -
Page 13: Base Plate Parts
WOODBRIDGE Remote Control Panel Parts Base plate Base Plate Parts Water Supply Assembly Installtion Installtion Manual Manual Warranty Installtion Warranty Installation Warranty Card Card paperboard Manual Card Installation Installation paperboard paperboard Main Unit www.woodbridgebath.com... - Page 14 WOODBRIDGE MAIN UNIT IDENTIFICATION Water inlet Water connector discharging cover Side receiving Main unit window disassembly button Main unit button Socket Remote control receiving window Power indicator Energy saving indicator Wand Seat Hole for rear cleaning Drying device Base plate Night light Hole for ladies’...
-
Page 15: Installation Dimension
WOODBRIDGE INSTALLATION LNSTRUCTION Installation dimension Note:please check if the installation dimension matching the user’s toilet. 15 1/8" 5 1/8"~6 1/2" Installation of mounting plate Press the expansion nuts into the installation holes in the toilet,then install the base plate, plastic plates,flat washers and bolt as per the drawing and tighten the bolts. - Page 16 WOODBRIDGE Installation and disassembly of main unit Disassembly Installation Press the “removal button” on washlet, Push the washlet back onto the base until a “click” is heard,and pull it out. plate until a “click” is heard. Installation Note: Before pulling out the washlet,release hand from “removal button”.
-
Page 17: Installation Instruction
WOODBRIDGE INSTALLATION INSTRUCTION Checking the power and water supply Connect the water supply hose and turn on the Insert power plug into power socket. angle valve.Check if any leakage. Indicator light Grounded Electric leakage test button outlet Water tank Protection switch... - Page 18 WOODBRIDGE Function illustration of keys in main unit and actuator 1. Long press “Power” button to enter standby mode; and then quick press “Power” button to restore functional mode. 2. When people sit, press “Power” button to stop the function of rear, front cleaning or drying. When no Power one sits, press “Power”...
-
Page 19: Daily Maintenance
WOODBRIDGE DAILY MAINTENANCE Main unit maintenance 1.Shut off power supply at maintenance. 2.Turn the seat upward open,press down the button located on the right side of main unit and pull out the seat.Wipe the stain with a soft damp cloth. - Page 20 WOODBRIDGE Inlet filter cleaning 1.Pull out electrical plug,then shut off water supply valve and remove water supply hose. 2.Remove the filter.Use the brush to clean the filter. 3.Put the filter back into inlet after cleaning.Then connect the water supply pipe.
- Page 21 WOODBRIDGE Problem Cause Solution Water supply hose buckling Solve the buckling causes block No flushing Turn on the fill valve Fill valve is off Connect water supply and Water supply is cut off wait for the water Water supply hose buckling...
