B.E.G. Luxomat PICO-M-1C-FC Installation And Operating Instruction

LUXOMAT

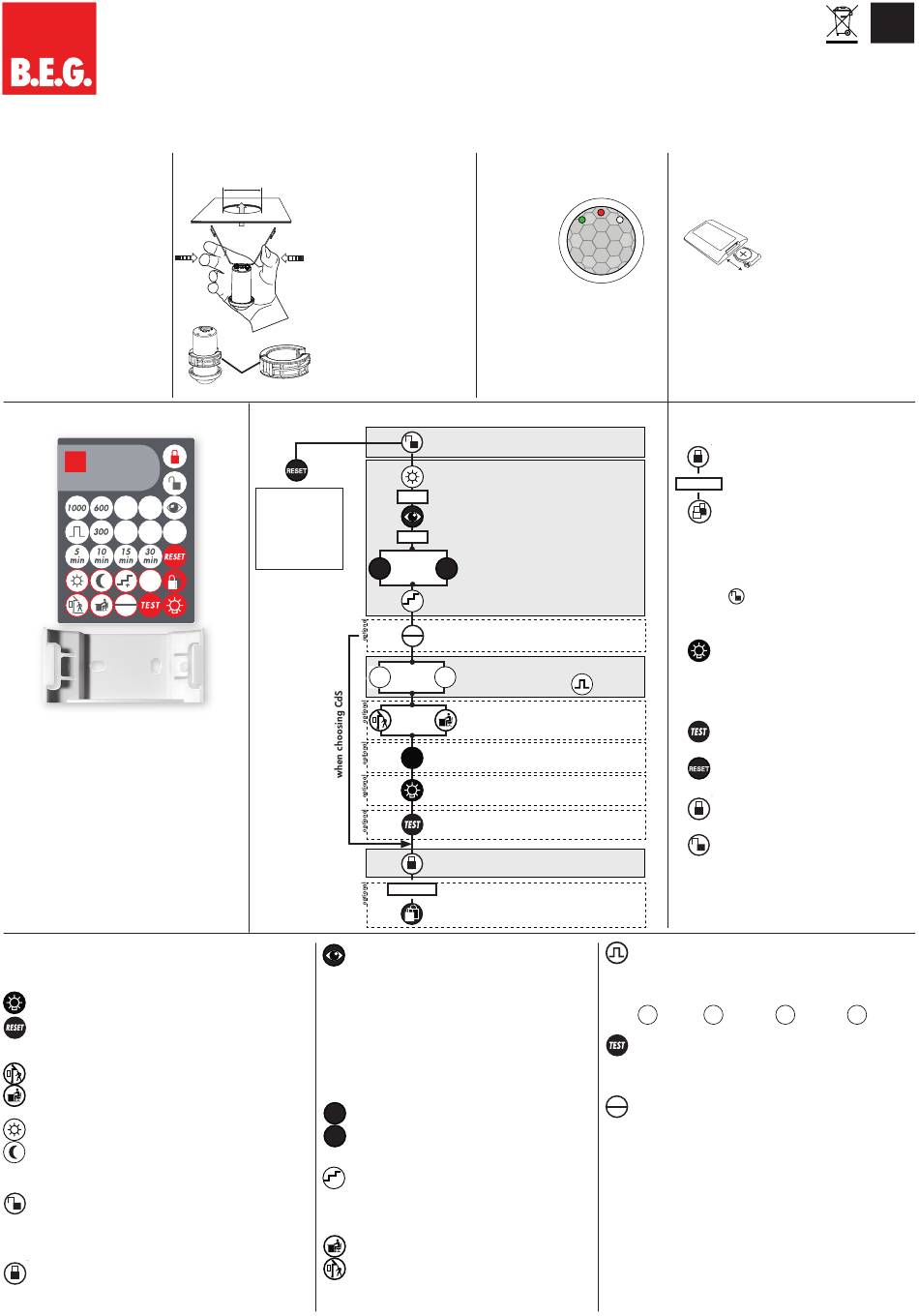

Installation and Operating Instruction for B.E.G. - Mini occupancy detector PICO-M-1C-FC
1. Mounting preparation
Work on the 230 V mains supply
may only be carried out by quali-
fied professionals or by instructed
persons under the direction and
supervision of qualified skilled
electrical personnel in accordance
with electredechnical regulations.
Disconnect supply before installing!
The device is not suited for safe
disconnection of the mains supply.
When in Master/Slave mode of
operation, the Master-appliance
must always be installed at the
location where there is least
daylight.
5. Option: Remote control IR-PD-1C
B.E.G.
LUXOMAT LUXOMAT
B.E.G. B.E.G. ® ®
IR-PD-1C
® PD3
LUXOMAT
500 400
200 100 20
HA
ON/OFF
PIR
CdS
Wall bracket for remote control
IR-PD-1C
An adhesive film for the surface of the IR-PD-1C is
included with the device. If required, this can be used
for any B.E.G. remote control with 27 keys.
8. Explanation of the remote control button functions
8a. In the initialisation period
12 h Light ON/OFF (party function)
Activated by "Light" - push button
Deactivated by "Reset"- push button (default)
Corridor function (see point 10a)
Activated by "outside"- push button
Deactivate by "inside"- push button (default)
Forced shutdown (see point 10c)
Activated by "sun" - push button
Deactivate by "moon"- push button (default)
8b. In opened state
This push button opens the detector and the following
functions can then be programmed.
Attention: The detector is closed automatically:
• after every voltage recovery
• after 3 minutes
The state changes to "closed".
In the first 5 seconds, the white LED flashes every 0.5
seconds. During this time, sabotage protection can be
activated.
®
2. Installation LUXOMAT PICO-M-1C-FC
®
The detector has been designed
25 mm
and developed specifically
for installation in suspended
ceilings.
A circular opening of diameter
min. 25 mm must be produced
in the ceiling.
Having connected the cables
in accordance with the regula-
tions, move the device through
the hole in the ceiling and
mount the sensor according to
the drawing in the ceiling. For
installation in luminaires use the
including clamping ring (a) and
remove the spring clips.
a
6. Settings by remote control
Resetting when
open:
Deletes all values
set with the
remote control,
light OFF.
The device distinguishes between 2 procedures:
• Reading in with lighting switched on:
The switch-on value is determined automatically.
Determining the switch-on value:
1. Press the "eye" push button
2. Switch off the light (2 seconds later)
3. Read in the brightness
4. Switch-on value = Read brightness
• Reading in with lighting switched off:
When the push button is pressed, the current
brightness is specified as the switch-on value. The
switch-off value is determined automatically.
20
If the brightness has been modified, the switch-off
threshold is recalculated.
1000
Each time the push button is pressed, the device
increases the current switch-on value in increments of
+
20 Lux for a current switch-on value of < 100 Lux and
in increments of 50 Lux for a current switch-on value
of > 100 Lux.
Standard sensitivity for most applications
Reduced sensitivity for outdoor applications
PICO-M-1C-FC
3. Hardware configuration
and operation
Position LED's
LED 1 green
LED 2 red
LED 3 white
Self test cycle
After an initial 60-second self-test cycle,
the
LUXOMAT ®
for operation.
see point 19). After that the factory setting
is active (see point 12).
Unlocking device – Activation
of the programming mode
Daytime operation, detector only
activated by motion
or
Automatic reading in the current light
value as new luminance set point
or
Luminance set point for channel 1
to
1000
20
20 - 1000 Lux
Increase the current light level by
+
20 resp 50 Lux
Change between motion detector
PI R
and photo electric switch
CdS
Follow-up time channel 1 (light)
�� 5 ��
to
5 - 30 min. or impuls
min
��� ���
Detection sensitivity reduced
or
or normal
Change between fully automatic
HA
and semi automatic mode (HA)
ON/OFF
Light ON/OFF
LED ON/OFF (by holding
down the push button)
Locking device – Exit programming
mode
t < 5 sec.
white LED flashes
Permanent protection against
sabotage
4. Settings carried out using remote
control (optional)
1 2 3
LUXOMAT
is ready
PICO-M-1C-FC
(see LED function displays
7. Key functions in closed state
t < 5 sec.
50 1500
Lux
max
ON
OFF
��
���
When the pulse function is active, a pulse of 1 sec. is gener-
ated every 9 sec. If the pulse function is activated via remote
control, the pause between 2 pulses can be modified. After
activating the function via the "Pulse" push button, select the
desired time within 5 sec.:
�� 5 = 9 sec., �� 10
min min
��� ���
The "Test" push button can be used to set the LED ON/OFF
function. To do this, hold down the push button for 3 sec.
Please note that in the open state and in test mode, the LED
indicators are always ON.
Twilight switch function (CdS)
PI R
If the CdS function is active, the detector acts as a simple
CdS
twilight switch. Only the brightness can be set in this mode.
Movements are no longer indicated by the red LED.
Push button acknowledgement:
Each push of a button is indicated by lamp acknowledgement
and by the white LED.
"Light ON" status: OFF/ON (approx. 0.5 sec. each)
"Light OFF" status: ON/OFF (approx. 0.5 sec. each)
GB
IR-PD-1C Remote Control
®
Check Battery:
Open battery compartment
by pressing the plastic springs
together and removing the
battery-holder.
Permanent protection against sabotage
This function blocks the unit perma-
nently. This operating mode can only be
activated during the period of 5 seconds
(white LED flash) after pressing the "Lock"
button. The procedure for leaving this
mode is as follows:
1. Switch off the current
2. Apply current for 31 - 59 seconds
3. Switch of the current again
4. Apply current, wait for selftest
Lux
cycle
5. Open detector
Light ON/OFF during the detection of
motion plus follow-up time; Activation
of the 12 h-ON/OFF-function by
holding down the push button
Activation/Deactivation of the test
function
Switches channel off and is immedi-
ately active again, exits all timers,
interruption of light measurement
Confirmation
Changes to "open" state
= 10 sec., �� 15 = 15 sec., 30 �� = 30 sec.
min min
��� ���
