Installation and Operating Instruction for B.E.G. - Occupancy detector PD4-M-2C-C-SM/ FC/ FM
1. Mounting preparation
Work on the 230 V mains supply
may only be carried out by quali-
fied professionals or by instructed
persons under the direction and
supervision of qualified skilled
electrical personnel in accordance
with electrical regulations.
Disconnect supply before installing!
The device is not suited for safe
disconnection of the mains supply.
When in Master / Slave mode of
operation, the Master-appliance must
always be installed at the location
where there is least daylight.
3a. Hardware configuration SM
Position LED's
Potentiometer 3 Time Channel2
Potentiometer 2 Time Channel1
Potentiometer 1 Lux Channel1
1
40
LED 1 green
LED 2 red
LED 3 white
4a. Position potentiometers DIP-Switch SM
1
40
OFF
VA
Surface mounting
LED
DIP 1 Fully automatic/semi automatic mode
DIP 2 LED ON/OFF
DIP 3 Change between corridor mode and standard mode
The DIP switch settings are overriden using the remote control.

5. DIP switch functions

DIP- ON
switch
1 Semi automatic mode
2 LED OFF
3 Corridor mode

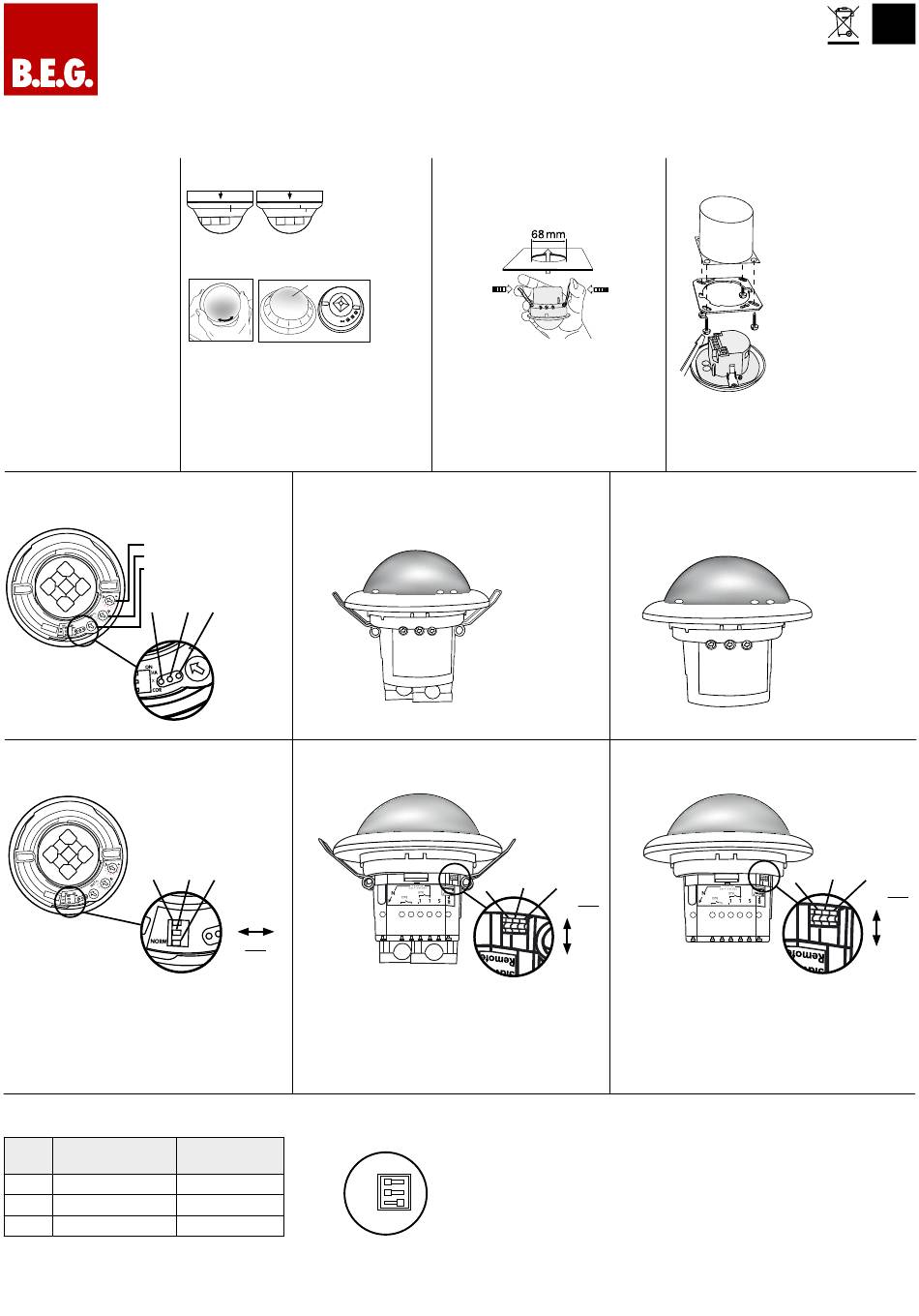

2a. Installation LUXOMAT ®
PD4-M-2C-C-SM
CAUTION:
For maximum
sensitivity the
detector-,lens- and
open closed
corridor-axis must
match
C
open
closed
The detector must be installed on a solid and level
surface. The circular cover ring must be removed
prior to assembly. To do this, twist the lens anti-
clockwise through approximately 5° and lift off.
Having connected up the wires in accordance
with regulations, secure the detector with 2
screws. After installation replace the lens and lock
(turn clockwise). Mains to be connected.
3b. Hardware configuration FC
Position LED's and potentiometers
LED 1 green
LED 2 white
LED 3 red
2 3
40
4b. Position DIP-Switch FC
2 3
ON
OFF ON
HA
DIP
COR
DIP 1 Fully automatic/semi automatic mode
DIP 2 LED ON/OFF
DIP 3 Change between corridor mode and standard mode
The DIP switch settings are overriden using the remote control.
OFF
Fully automatic mode
DIP
LED ON
Standard mode
PD4-M-2C-C
®
2b. Installation LUXOMAT
PD4-M-2C-C-FC
A circular opening of diameter 68 mm must
first of all be produced in the ceilin
Having connected up the cables in accord-
ance with regulations, the detector is inserted
into the opening as shown in the drawing
opposite and fixed into position with the as-
sistance of the spring clip.
1
2 3
1 2 3
Potentiometer 1 Lux Channel1
Potentiometer 2 Time Channel1
Potentiometer 3 Time Channel2
1 2
False ceiling mounting
Corridor function: After deactivation by an external push
button, the detector switches off and returns to automatic
mode after 5 sec.
OFF ON
1
2
3
The DIP settings are enabled again by:
• Adjusting the DIP switches when closed
• Reset with test sun setting at the potentiometers
• Reset when open
® 2c. Installation LUXOMAT
PD4-M-2C-C-FM
3c. Hardware configuration FM
Position LED's and potentiometers
LED 1 green
LED 2 white
LED 3 red
1
1 2
4c. Position DIP-Switch FM
3
DIP
OFF
Flush mounting
ON
DIP 1 Fully automatic/semi automatic mode
DIP 2 LED ON/OFF
DIP 3 Change between corridor mode and standard mode
The DIP switch settings are overriden using the remote control.
GB
®
The detector can be installed
in conventional inlet-sockets
mounted on the ceiling. The
assembly plate enclosed must
be stripped off prior to instal-
lation and secured to the
ceiling using 4 screws.
Having connected up the
cables in accordance with
regulations, the detector can
be placed in position as
shown in the drawing op-
posite and, applying a little
pressure, can then be locked
into position with the assist-
ance of the spring clips.
( For connections please see pt. 21!)
2 3
Potentiometer 1 Lux Channel1
3
Potentiometer 2 Time Channel1
Potentiometer 3 Time Channel2
1 2 3
DIP
OFF
ON
