StarTech.com V933536 Instruction Manual

Instruction manual

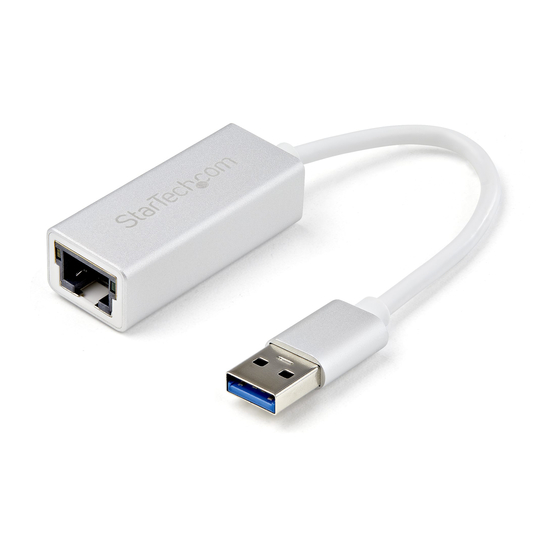

USB 3.0 to Gigabit network adapter for Mac
USB31000SA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging contents
• 1 x USB 3.0 Gigabit NIC (network interface card)
• 1 x instruction manual
System requirements
• USB-enabled computer with an available USB 3.0 port
• Any of the following operating systems:
• Windows® 7 (32-bit or 64-bit)
• Windows 8 (32-bit or 64-bit)
• Windows 8.1 (32-bit or 64-bit)
• Linux® kernel 3.x
• Windows Server® 2003
• Windows Server 2008
• Windows Server 2012
• Windows® XP
• Mac OS 10.7 and later (tested up to Mac OS 10.10)
Operating system requirements are subject to change. For the latest
requirements, please visit www.startech.com/USB31000SA.
Product overview
Green link LED
USB 3.0 type A
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/USB31000SA.
Amber activity
LED
RJ45 Ethernet port
*actual product may vary from photos
Installation
Install the NIC
• Connect the USB 3.0 NIC to an available USB port.
If the driver for the NIC doesn't install automatically, you need to
manually install the driver. For more information, see the instructions
below.
Install drivers on a computer running Windows
1. If the Found New Hardware dialog box appears on your screen,
close the dialog box or click Cancel.
Note: The NIC will load a CD-ROM device that contains an
executable file that you can use to install the driver.
2. After the CD-ROM device finishes loading, run the installation file.
3. Complete the on-screen instructions to complete the installation.
Note: You can find the latest drivers at www.StarTech.com. Enter
USB31000SA in the Search field, and click the Support tab.
Install drivers on a computer running Mac OS
1. To download the latest driver, navigate to
enter USB31000SA in the Search field.
2. Click the Support tab.
3. Download a driver.
4. When the download is complete, extract the contents of the
compressed file that you downloaded.
5. Double-click the appropriate driver for the version of OS that
you're running, and follow the on-screen instructions to complete
the installation.
Verify that the driver was installed successfully on a
computer running a version of Windows
1. Depending on the version of Windows that you're running, do
one of the following:
• If you're running a version of Windows 7, in the Start menu,
right-click Computer. Click Manage. In the Computer
Management window, click Device Manager.
• If you're running Windows 8.1, press the Windows key + X.
Click Device Manager.
2. Expand the Network Adapters section. If the driver was installed
successfully, the list won't contain any exclamation or question
marks next to the device.
www.StarTech.com and
Manual Revision: 05/14/2015
