Summary of Contents for StarTech.com EOC110K

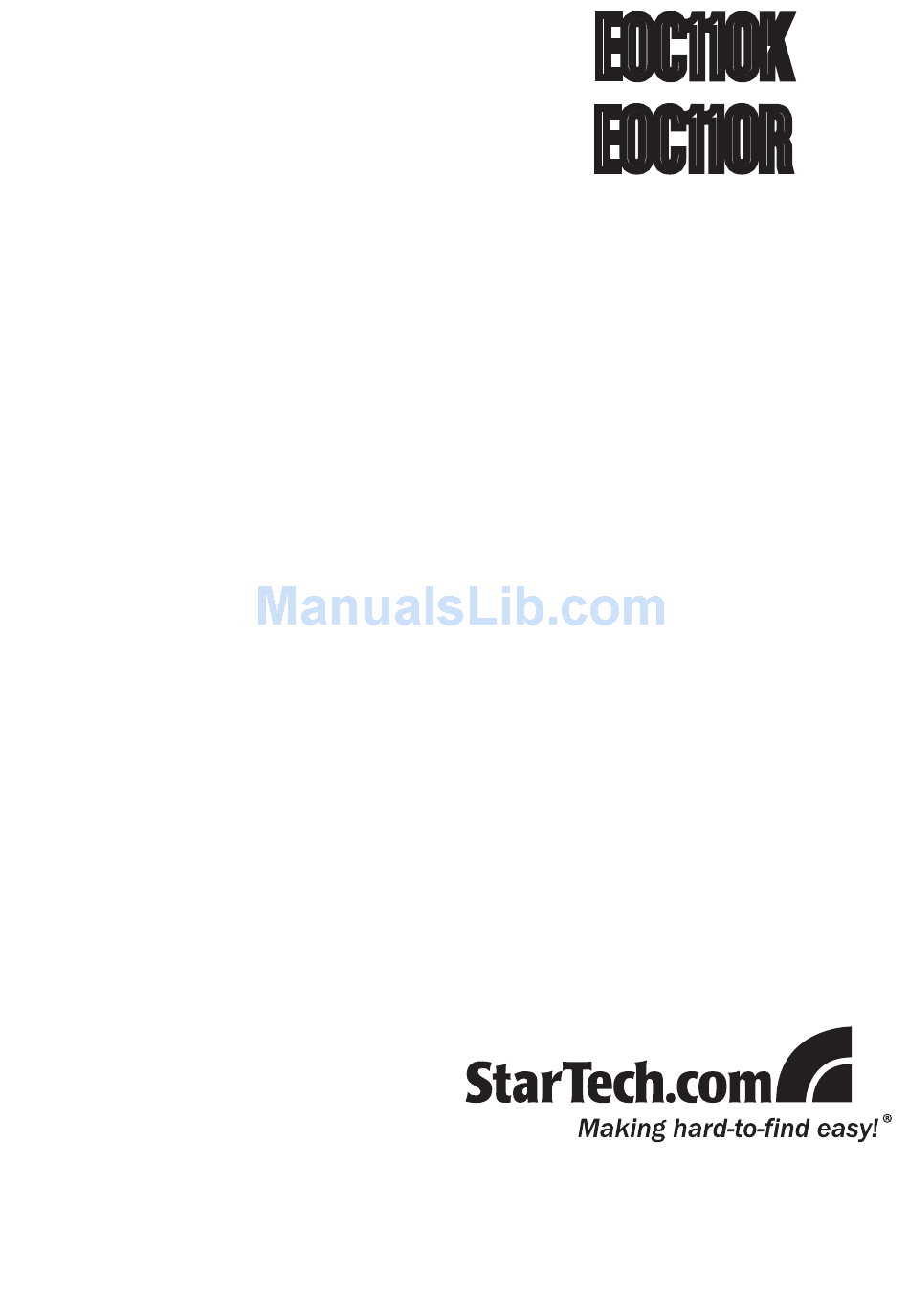

- Page 1 EOC110K EOC110R Instruction Manual Ethernet over Coax Ethernet over Coax Adapter Kit Ethernet over Coax Receiver Manual Revision:07/26/2010 For the most up-to-date information, please visit www.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech. com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ............... 1 Packaging Contents.............. 1 System Requirements ............1 Installation ..............2 Hardware Installation ............2 Driver Installation ..............2 Cable Length ............. 3 Specifications ............4 Technical Support ............. 5 Warranty Information ..........5... -
Page 4: Introduction

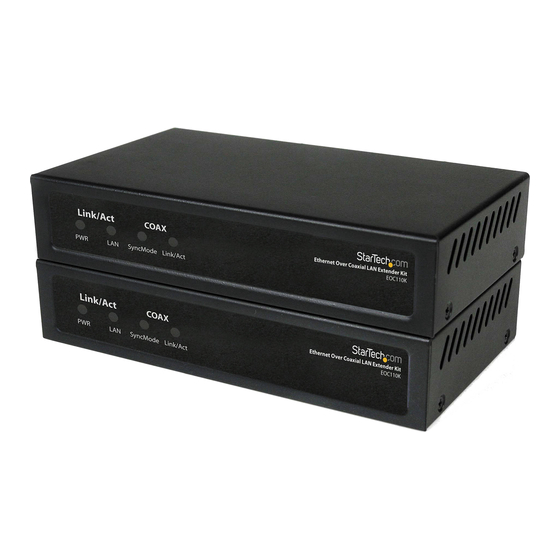

Introduction The StarTech.com EOC110K Ethernet over Coax extender kit allows you to span a 10/100 network over extremely long distances (up to 1.2km) while still maintaining high speed network connectivity. Allowing Ethernet connections over existing Coaxial cable with little to no modification,... - Page 5 Front View Rear View...
-
Page 6: Installation
Installation Hardware Installation NOTE: Both of the converter boxes in the EOC110K kit are identical, so they can be installed at either end, in any order. 1. At one of the locations for the converter box, connect an RJ45 Ethernet cable from the existing Ethernet network or computer network adapter to the “LAN”... -
Page 7: Cable Length
Cable Lengths Maximum bandwidth (Mbps) based on coaxial cable type and length. Distance RG-59 RG-6 RG-7 RG-11 Bandwidth 100m ~ 700m 800m 900m 1000m 1100m 1200m 1300m 1400m 1500m < 30MHz 1600m 1700m 1800m 1900m 2000m 2100m 2200m 2300m 2400m... -
Page 8: Specifications
Specifications ITU G.9954, IEEE802.3, Transmission Standards IEEE802.3u, IEEE802.3x 2 x F-Connector female Connectors 1 x RJ45 female (per unit) 1 x DC Power 1 x Power 1 x LAN Link/Activity LEDs (per unit) 1 x Coax Link/Activity 1 x Coax Sync Compatible Cabling RG-59, 6, 7, 11 Maximum Distance... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech. com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products,...
