StarTech.com ZIF2IDE35 Manual

ZIF2IDE35

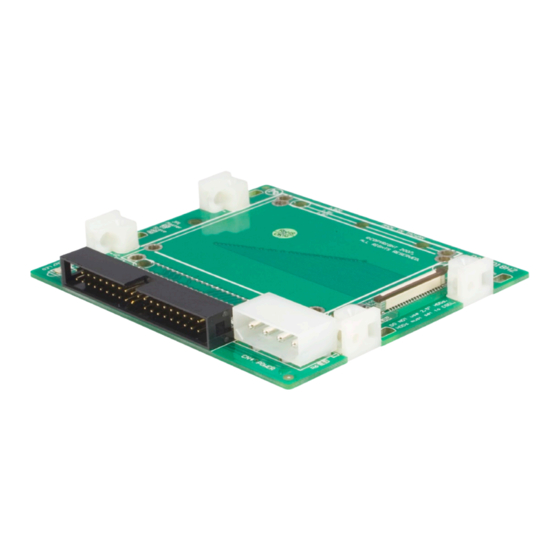

3.5 inch IDE to 1.8 inch ZIF HDD adapter

Features

• Supports Hitachi or Toshiba 1.8" ZIF hard drives
• Occupies a single 3.5" drive slot
Mounting Tabs

Installation

WARNING! Computer equipment can be severely damaged by static electricity. Be sure that you are properly
grounded before opening your computer case or touching your hard drive. StarTech.com recommends that
you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable,
discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the
computer case) for several seconds. Be sure to handle your hard drive carefully and consult your hard drive
and laptop manufacturer for details on how to remove the drive.

Single Drive Installation

1. Locate the black stripe on the Flat Flex (ZIF) cable for the type of hard drive being used (Toshiba/Hitachi).
2. Gently lift the ZIF Connector lever on the hard drive you wish to use, and insert the black striped end of
the Flat Flex Cable. Once the cable is seated properly, gently press down on the lever until the cable is
locked in place.
NOTE: The included ZIF cables are specially designed to work with either a Toshiba or Hitachi ZIF
connector. Make sure to use the properly matched Toshiba or Hitachi cable.

Packaging Contents

• 1 x ZIF2IDE35 adapter board
• 1 x 0.2mm to 0.3mm Toshiba Flat Flex cable
• 1 x 0.3mm to 0.3mm Hitachi Flat Flex cable
• 1 x Mounting Kit
• 1 x Installation Guide

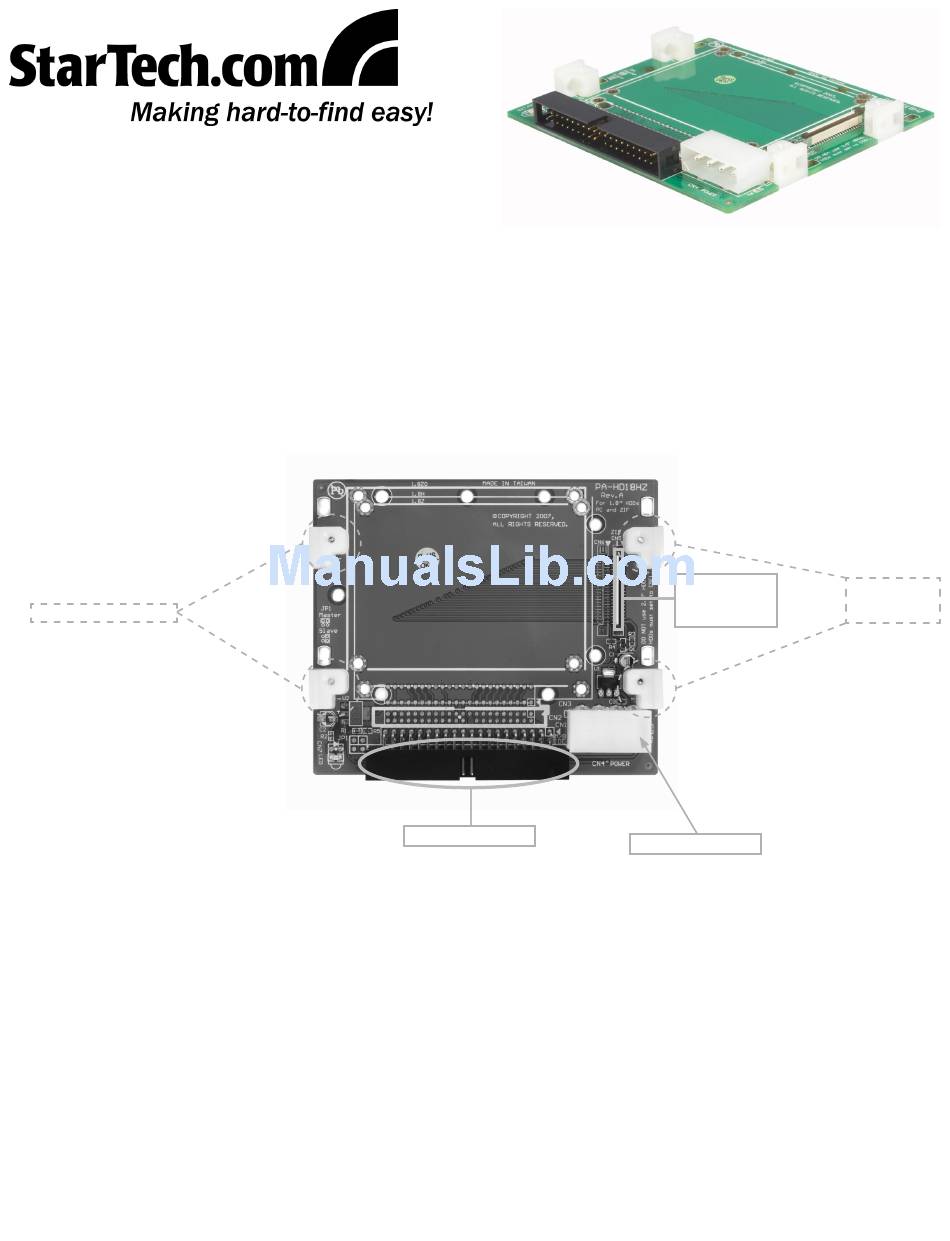

IDE Connector
ZIF
Connector
LP4 Power
Mounting
Tabs
