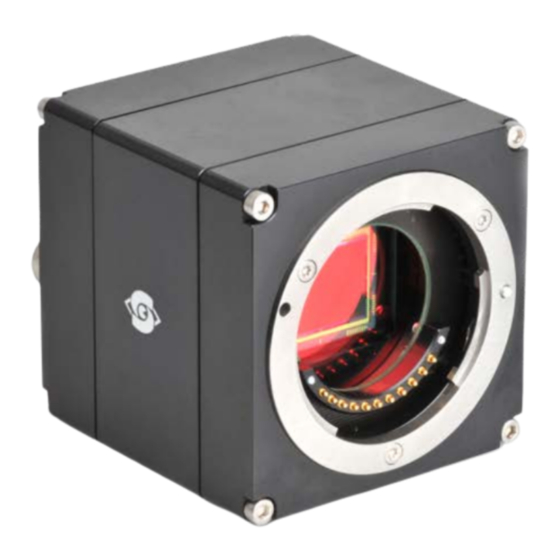

Manual EVO Tracer series
evo1050TR, evo2050TR, evo2150TR, eco4050TR,
evo4070TR, evo8051TR
3.23.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO Tracer Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SVS-Vistek EVO Tracer Series

Summary of Contents for SVS-Vistek EVO Tracer Series

  • Page 1 Manual EVO Tracer series evo1050TR, evo2050TR, evo2150TR, eco4050TR, evo4070TR, evo8051TR 3.23.2017...
  • Page 2 The camera in your possession has been produced with great care and has been thoroughly tested. Nonetheless, should you have reasons for complaint, then please contact your local SVS-VISTEK distributor. You will find a list of distributors in your area under: http://www.svs-...

  • Page 3: Table Of Contents

    Contents Contents Safety Messages ............6 Legal Information ............. 7 The EVO Series ............8 Compact Power ............8 GigE-Vision features ..........8 Tracer adds dynamic lens control ....... 9 3.3.1 Tracer with Micro Four Thirds mount ......9 4IO adds Light and Functionality ......10 Getting Started ............
  • Page 4 Contents Basic Understanding..........38 7.1.1 Basic Understanding of CCD Technology ..... 38 7.1.2 Interline Transfer ............39 7.1.3 Global Shutter / Progressive Scan ........ 40 7.1.4 Frames per Second ............. 41 7.1.5 Acquisition and Processing Time ........41 7.1.6 Exposure ..............42 7.1.7 Auto Luminance ............
  • Page 5 Contents 8.10 Evo4070*FLGEC ..........115 8.11 Evo8050*FLGEA ..........118 8.12 Evo8050*FLGEC ..........120 8.13 Evo8051*FLGEA ..........123 8.14 Evo8051*FLGEC ..........125 Terms of warranty ..........128 Troubleshooting ..........129 10.1 FAQ ............... 129 10.2 Support Request Form / Check List ...... 130 IP protection classes ..........

  • Page 6: Safety Messages

    A white graphical symbol inside a blue circle defines a safety sign that indicates that an action shall be taken to avoid a hazard. Cross-reference NOTICE Provides references and tips 1: T IGURE ABLE OF SAFETY MESSAGES SVS-VISTEK– Compact Power...

  • Page 7: Legal Information

    Customers, integrators and end users of SVS-Vistek products might sell these products and agree to do so at their own risk, as SVS-Vistek will not take any liability for any damage from improper use or sale.

  • Page 8: The Evo Series

    SDK for Windows XP/10 (32/64 bit) and Linux In case your camera features a Dual GigE connector, the bandwidth and data transfer rate are close to double this value. Not every operating system is supporting link aggregation, though. SVS-VISTEK–The EVO Series Compact Power...

  • Page 9: Tracer Adds Dynamic Lens Control

    Due to the size of MFT Bayonet, the Tracer camera size has to be a bit larger than normal SVS-Vistek cameras do, as the bayonet would not fit into the std camera housing dimensions. Inside the camera case you’ll find exactly the same electronics power pack with all of its features and latest high performance sensors.

  • Page 10: 4Io Adds Light And Functionality

    SVS-VISTEK 3.4 4IO adds Light and Functionality Your SVS-Vistek camera is equipped with the innovative 4IO-interface Figure 2: Illustration of 4IO concept of switching LEDs (depending on camera model up to 4 inputs/outputs, see specs) allowing full light control, replacing external strobe controllers. Each of the outputs can be individually configured and managed using pulse- width modulation.

  • Page 11: Getting Started

    Red slow ( 1 Hz ) Problem with initialization Red quickly ( 8 Hz) Camera overheating Blue permanent Waiting for trigger Cyan permanent Exposure active Violet permanent Readout/FVAL Table 1 table of flashing LED codes SVS-VISTEK–Getting Started Contents of Camera Set...

  • Page 12: Software

    (GenICam drivers and transport layer DDLs) SVCapture 2.x is a XML based software tool provided for free. It is created to show the capabilities of your SVS-Vistek camera and to show/modify values to your cam. Get control of exposure timing, trigger delay, image correction etc. or control up to 4 LED lights connected to the SVCam directly via the PC.
  • Page 13 SVS-VISTEK Software Setup Installation prosecco may differ from PC to PC. It is recommended to install the whole software package. Copy/expand the installation executable file to your hard drive. Run installation Read and accept the terms of license agreement Choose destination folder...
  • Page 14 SVS-VISTEK Install the USB 3.0 Driver Generic driver included in the windows system will not match all SVS-VISTEK USB3 Vision features. Start installation System, warning The installer will modify your system (USB 3.0 driver); there for windows systems will warn you with an interrupt.
  • Page 15 SVS-VISTEK Installation will proceed Installation completed Getting Started...
  • Page 16 SVS-VISTEK Initialization I R S T L A U N C H The software is XML based. So in case there is no Camera connected to the USB slot, no XML camera properties can be loaded, no values to control are available.
  • Page 17 SVS-VISTEK Conform to GenICam all control features will be listed in a flat tree diagram. Getting Started...
  • Page 18 SVS-VISTEK USB 3.0 driver The USB 3.0 driver You can find the USB 3.0 driver within your hardware manager: Firmware update From time to time make sure your camera is running up to date firmware. A firmware update tool is integrated in the software.

  • Page 19: Firmware

    (download it from website, login area) matching your camera model. 4.5.1 Firmware Update GigE A separate tool called “Firmware Update Tool.exe” is provided in the login area of the SVS-Vistek website. Execute firmware update > Download the firmware tool and the firmware file from the SVS-Vistek website.
  • Page 20 SVS-VISTEK Start SVCapture on your computer. As soon as the camera has booted, all SVS-Vistek GigE cameras are showing up in the main window. The cameras will show their IP addresses. In any case, the last number (1-254) has to be unique in your subnet.

  • Page 21: Driver Circuit Schematics

    SVS-VISTEK 4.7 Driver Circuit Schematics Figure 6: basic Illustration of driver circuit Getting Started...

  • Page 22: Connectors

    “169.254.xxx.xxx” of the network address range. A GigE camera will fall back to LLA when no DHCP server is available and no fixed network address was assigned to the camera. Figure 7: Illustration of RJ45 female connector SVS-VISTEK–Connectors GigE Vision...
  • Page 23 SVS-VISTEK Jumbo Frames The transport efficiency in the streaming channel can be improved by using “jumbo frames”. This will reduce overhead caused by maintaining header data upon each data packet sent. 8: I IGURE LLUSTRATION OF DATA REDUCTION WITH JUMBO FRAMES...
  • Page 24 SVS-VISTEK Connecting multiple Cameras Multiple GigE cameras can be connected to a PC either via a switch or using dual or quad port network interface connectors (NIC). 9: I IGURE LLUSTRATION OF CONNECTING MULTIPLE CAMERAS ON MULTI Multiple Cameras connected by a Switch To connect multiple cameras by a switch, the switch must be managed.

  • Page 25: Xml Files

    SVS-VISTEK Multicast When images from a single camera need to be delivered to multiple PCs, multicast (RFC 2236) is used. A switch receives an image data stream from a camera and distributes it to multiple destinations in this mode. Since a GigE camera always needs a single controlling application, there will be only one master application.

  • Page 26: Single Line Operation Of Dual Gige Cameras

    SVS-VISTEK back to LLA when no DHCP server is available and no fixed network address was assigned to the camera. Figure 12: physical layout of RJ45 female connector NOTICE Any dual GigE camera can be run as well with a single network connection.

  • Page 27: Teaming Dual Gige

    SVS-VISTEK 5.2.3 Teaming Dual GigE NOTICE Windows 10 does not support static link aggregation. You need to run win7, win8, macOS or linux if you want to use dual GigE For higher transfer rates on GigE, you might want to team 2 GigE ports together.
  • Page 28 SVS-VISTEK Figure 14: team wizard Choose Static Link Aggregation, next and finish. Figure 15: setting Static Link Aggregation (SLA) Jumbo Frames The transport efficiency in the streaming channel can be improved by using “jumbo frames”. This will reduce overhead caused by maintaining header data upon each data packet sent.

  • Page 29: Xml Files

    SVS-VISTEK NOTICE Resends result in higher consumption of bandwidths and will lead to drop frames. High quality cables prevent resends. 5.2.4 XML Files According to the GigE Vision standard a GigE camera provides an XML file that defines the camera’s capabilities and current settings.
  • Page 30 SVS-VISTEK Figure 18: Illustration of data reduction with jumbo frames NOTICE Higher packet sizes require network cards that support jumbo packets. Packet loss In accordance with the TCP protocol, lost or corrupted packages will be resent. NOTICE Resends result in higher consumption of bandwidths and will lead to drop frames.
  • Page 31 SVS-VISTEK Connecting multiple Cameras Multiple GigE cameras can be connected to a PC either via a switch or using dual or quad port network interface connectors (NIC). Figure 19: Illustration of connecting multiple cameras on multi NIPs Multiple Cameras connected by a Switch To connect multiple cameras by a switch, the switch must be managed.
  • Page 32 SVS-VISTEK Connectors...

  • Page 33: Xml Files

    SVS-VISTEK When images from a single camera need to be delivered to multiple PCs, multicast (RFC Multicast 2236) is used. A switch receives an image data stream from a camera and distributes it to multiple destinations in this mode. Since a GigE camera always needs a single controlling application, there will be only one master application.

  • Page 34: Input / Output Connectors

    SVS-VISTEK 5.4 Input / output connectors For further information using the breakout box and simplifying I/O connection refer to SVCam Sensor Actor manual (with Murr and Phoenix breakout boxes). To be found separate within the USP manuals. 5.4.1 M12 I/O connector...

  • Page 35: Dimensions

    6 Dimensions All length units in mm. CAD step files available on DVD or SVS- VISTEK.com 6.1 EVO Tracer MFT CAD step files available on DVD or SVS-VISTEK.com. Including: evo1050CFLGEA67TR, evo1050CFLGEC67TR, evo1050MFLGEA67TR, evo1050MFLGEC67TR, evo2050CFLGEA67TR, evo2050CFLGEC67TR, evo2050MFLGEA67TR, evo2050MFLGEC67TR, evo2150CFLGEA67TR, evo2150CFLGEC67TR, evo2150MFLGEA67TR, evo2150MFLGEC67TR,...
  • Page 36 SVS-VISTEK Dimensions...
  • Page 37 SVS-VISTEK Dimensions...

  • Page 38: Basic Understanding

    Charge is an integration of time and light intensity on the element. Like this the image gets brighter the longer the CCD cell is exposed to light. The sensor converts light into charge and transports it to an amplifier and subsequently to the analog to digital converter (ADC). SVS-VISTEK–Feature-Set Basic Understanding...

  • Page 39: Interline Transfer

    SVS-VISTEK 7.1.2 Interline Transfer Interline Transfer is only used in CCD sensors. With a single pixel clock the charge from each pixel is transferred to the vertical shift register. At this time, the light sensitive elements are again collecting light. The charge in the vertical registers is transferred line by line into the horizontal shift register.

  • Page 40: Global Shutter / Progressive Scan

    SVS-VISTEK 7.1.3 Global Shutter / Progressive Scan Unlike rolling shutter or interlaced scan modes all pixels are exposed at the same time. Fast moving objects will be captured without showing movement distortion. Figure 26: motion blur Figure 27 rolling shutter with...

  • Page 41: Frames Per Second

    SVS-VISTEK 7.1.4 Frames per Second Frames per second, or frame rate describes the number of frames output per second. The inverse (1/ frame rate) defines the frame time. frame per second frame time (Exposure) applicable standard 0,25 500ms 41,6 � ms...

  • Page 42: Exposure

    SVS-VISTEK 7.1.6 Exposure See various exposure and timing modes in chapter: Basic capture modes. Combine various exposure timings with PWM LED illumination, refer to sequencer. Setting Exposure time Exposure time can be set by width of the external or internal triggers or programmed by a given value.

  • Page 43: Bit-Depth

    SVS-VISTEK 7.1.8 Bit-Depth Values of brighness are internally represented by numbers. Numbers are represented by bytes, consisting out of single bits. The number of bits for brightness representation is limiting the number of brightness values or colour values that can be represented. Bit depth defines how many unique colors or grey levels are available in an image after digitization.
  • Page 44 SVS-VISTEK Figure 33: Figure of original picture - black & white Figure 34: Figure of quantification with 6 shades of gray (reduced colour depth) Feature-Set...

  • Page 45: Color

    SVS-VISTEK 7.1.9 Color Color cameras are identical to the monochrome versions. The color pixels are transferred in sequence from the camera, in the same manner as the monochrome, but considered as “raw”-format. The camera sensor has a color mosaic filter called “Bayer” filter pattern named after the person who invented it.

  • Page 46: Resolution - Active & Effective

    SVS-VISTEK 7.1.10 Resolution – active & effective As mentions in the specifications, there is a difference between the active and the effective resolution of almost every sensor. Some pixels towards the borders of the sensor will be used only to calibrate the sensor values.

  • Page 47: Offset

    SVS-VISTEK 7.1.11 Offset For physical reasons the output of a sensor will never be zero, even the camera is placed in total darkness or simply closed. Always there will be noise or randomly appearing electrons that will be detected as a signal.

  • Page 48: Gain

    SVS-VISTEK 7.1.12 Gain Setting gain above 0 dB (default) is another way to boost the signal coming from the sensor. Especially useful for low light conditions. Setting Gain amplifies the signal of individual or binned pixels before the ADC. Referring to Photography adding gain corresponds to increasing ISO.

  • Page 49: Image Flip

    SVS-VISTEK 7.1.13 Image Flip Images can be mirrored horizontally or vertically. Image flip is done inside the memory of the camera, therefore not increasing the CPU load of the Figure 41: Figure of original image Figure 42: Figure of image horizontally flipped...

  • Page 50: Binning

    SVS-VISTEK 7.1.14 Binning Binning provides a way to enhance dynamic range, but at the cost of lower resolution. Instead of reading out each individual pixel, binning combines charge from neighboring pixels directly on the chip, before readout. Binning is only used with monochrome CCD Sensors. For reducing resolution on color sensors refer to decimation.

  • Page 51: Decimation

    SVS-VISTEK When DVAL signal is enabled only every third pixel in horizontal direction is grabbed. Figure 46: Illustration of 2x2 binning 7.1.15 Decimation For reducing width or height of an image, decimation can be used. Columns or rows can be ignored.
  • Page 52 (as soon as there is enough time later on to deliver the images) (not applicable to USB cameras) Please note, as soon as the internal memory buffer is filled up, frames will be dropped. Due to this reason, SVS-Vistek camers provide up to 512MB image buffer memory. Feature-Set...

  • Page 53: Camera Features

    SVS-VISTEK 7.2 Camera Features 7.2.1 Standard Tap Geometries Similar to other sensor readout technologies Camera Link is sending many pixel values in parallel at the same time. The image can be split in “taps” or “channels” which can be sent in parallel. The tap geometry is describing how many taps are read and how they are transmitted through the Camera Link interface.
  • Page 54 SVS-VISTEK In a single-tap CCD sensor the readout of pixel charge is done sequentially. Pixel by pixel, line by line. The maximum frame rate is determined by the pixel clock frequency and the total number of pixels to be read out.

  • Page 55: Tap Balancing

    SVS-VISTEK 1.1.1.1 Tap Reconstruction on GigE Vision Tap reconstruction takes place within the Camera in order to display the image correctly. Further balancing still can be done after reconstruction. 7.2.3 Tap Balancing In sensors with multiple the tap structure, parts of the picture may appear differently.

  • Page 56: System Clock Frequency

    SVS-VISTEK 7.2.4 System Clock Frequency Default system clock frequency in almost every SVCam is set to 66.6 MHz. To validate your system frequency: refer to: specifications. Using the system clock as reference of time, time settings can only be made in multiples of 15 ns.

  • Page 57: Basic Capture Modes

    SVS-VISTEK 7.2.7 Basic Capture Modes Free Running Free running (fixed frequency) with programmable exposure time. Frames are readout continously and valid data is indicated by LVAL for each line and FVAL for the entire frame. There is no need to trigger the camera in order to get data. Exposure time is programmable via serial interface and calculated by the internal logic of the camera.
  • Page 58 At the rising edge of the trigger the camera will initiate the exposure. The software provided by SVS-Vistek allows the user to set exposure time e.g. from 60 μs 60 Sec (camera type dependent).
  • Page 59 SVS-VISTEK Software Trigger Trigger can also be initiated by software (serial interface). NOTICE Software trigger can be influenced by jitter. Avoid Software trigger at time sensitive applications Feature-Set...

  • Page 60: Lookup Table

    SVS-VISTEK 7.2.8 LookUp Table The LookUp Table Feature (LUT) lets the user define certain values to every bit value that comes from the ADC. To visualize a LUT a curve diagram can be used, similar to the diagrams used in photo editing software.
  • Page 61 SVS-VISTEK Gamma Correction Using the LookUp Table makes is also possible to implement a logarithmic correction. Commonly called Gamma Correction. Historically Gamma Correction was used to correct the illumination behavior of CRT displays, by compensating brightness-to-voltage with a Gamma value between 1,8 up to 2,55.

  • Page 62: Roi / Aoi

    SVS-VISTEK 7.2.9 In Partial Scan or Area-Of-Interest or Region-Of-Interest (ROI) -mode only a certain region will be read. Figure 62: Illustration of AOI limitation on a CCD sensor Selecting an AOI will reduce the number of horizontal lines being read.

  • Page 63: Defect Pixel Correction

    All image sensor have defect pixels in a lesser or greater extent. The number of defects determines the quality grade and the value of all sensors integrated by SVS-VISTEK. Defect Pixels either be dark pixels, i.e. that don’t collect any light, or bright pixels (hot pixel) that always are outputting a bright signal.

  • Page 64: Shading Correction

    SVS-VISTEK 7.2.11 Shading Correction The interactions between objects, illumination, and the camera lens might lead to a non-uniform flatfield in brightness. Shading describes the non- uniformity of brightness from one edge to the other or center towards edge(s). This shading can be caused by non-...

  • Page 65: I/O Features

    SVS-VISTEK 7.3 I/O Features 7.3.1 Assigning I/O Lines – IOMUX The IOMUX is best described as a switch matrix. It connects inputs, and outputs with the various functions of SVCam I/O. It also allows combining inputs with Boolean arguments. Figure 64: "IN0" connected to "debouncer"...
  • Page 66 EPROM. Default setting can be restored from within the Camera. Note: If you connect the camera with a non-SVS-Vistek GigEVision client, you might not see the clearnames of the lines, but only line numbers. In this case, use this list of line names...
  • Page 67 SVS-VISTEK Refer to pinout in input / output connectors when physically wiring. Also the IOMUX can be illustrated as a three dimensional dice. Long address spaces indicate which signals are routed to witch module within the camera. Figure 65: illustration of the backside view of the camera mudules.
  • Page 68 SVS-VISTEK Figure 66: illustration of frontside view to the camera modules. Lines with open end indicate physical in- and outputs Feature-Set...
  • Page 69 SVS-VISTEK input vector to switch matrix name description io_in(0) trigger input 0 – 24 Volt / RS-232 / opto * io_in(1) trigger input 0 – 24 Volt / RS-232 / opto * io_in(2) trigger input 0 – 24 Volt / RS-232 / opto * io_in(3) trigger input 0 –...
  • Page 70 SVS-VISTEK output vector from switch matrix name / register describtion io_out(0) output open drain io_out(1) output open drain io_out(2) output open drain * io_out(3) output open drain * io_txd output, when debug='0' rxd_to_uart1 output (uart_in) trigger output sequenzer_hw_trigger input to module iomux_sequenzer_0...
  • Page 71 SVS-VISTEK Example of an IOMUX configuration > The trigger signal comes in on line 0 > Debounce it. connect line 0 to 8: 1000000000000000000000000 signal appears again on line 15 – debouncer out > Use the prescaler to act only on every second pulse.

  • Page 72: Strobe Control

    SVS-VISTEK 7.3.2 Strobe Control Drive LED lights form within your camera. Control them via ethernet. Figure 67: use the breakout box to simplify your wiring > SVCam cameras have built-in MOSFETs that can drive up to 3 Amperes. > This allows using the cameras as a strobe controller – saving costs.
  • Page 73 SVS-VISTEK 2 IO’s high voltage drain Figure 68: Illustration of two LEDs switched internal by the camera For detailed connector pin out refer to Connectors. For further information using the breakout box and simplifying OIs refer SVCam Connectivity manual. To be found separate within the USP manuals.
  • Page 74 SVS-VISTEK Figure 70: Illustration of schematic wiring with 4IO model using the break out box (matrix) The pulseloop module A fully programmable timer/counter function with four individual pulse generators (pulseloop0 - 3) that can be combined with all SVCam I/O functions, as well as physical inputs and outputs.
  • Page 75 SVS-VISTEK Camera cascade Three cameras are triggered in cascade where the first camera is the master receiving the external trigger, and the master subsequently triggers the two slave cameras. Figure 72: pulseloop – activating three cameras O D U L E P U L S E L O O P...
  • Page 76 SVS-VISTEK LEDs in Continuous Mode Example Calculation “No Flash” (CW Mode) Voltage drop al 5 LEDs, 2,2 V per LED (see spec. of LED) 11 V Max. continuous current (see spec. of LED) 250 mA Voltage Supply 24 V Voltage drop at Resistor (24 V – 11 V) 13 V ����...
  • Page 77 SVS-VISTEK Strobe Timing 7 .3 .2 .1 .1 Exp osu re D e l a y A value, representing the time between the (logical) positive edge of trigger pulse and start of integration time. Unit is 1μs. Default is 0μs.
  • Page 78 SVS-VISTEK Strobe Control Example Setup Figure 73: Illustration of an application using the 4IO Feature-Set...

  • Page 79: Sequencer

    SVS-VISTEK 7.3.3 Sequencer The sequencer is used when different exposure settings and illuminations are needed in a row. E.g. the scenario to be captured may occur in three different versions and should therefore be recorded with three different light source settings.
  • Page 80 SVS-VISTEK Example: Values to set Interval 0 Interval 1 Interval 2 Sequencer 1.000.000 µs 1.000.000 µs 1.000.000 µs Interval (1s) (1s) (1s) Exposure Start 220.000 µs 875.000 µs 190.000 µs Exposure Stop 700.000 µs 125.000 µs 720.000 µs Strobe Start 110.000 µs...

  • Page 81: Pwm

    SVS-VISTEK 7.3.4 PWM Pulse width modulation Description of the function used within the sequencer or implemented by the pulseloop module During Pulse Width Modulation, a duty cycle is modulated by a fixed frequency square wave. This describes the ratio of ON to OFF as duty factor or duty ratio.
  • Page 82 SVS-VISTEK P W M : H E I N T E N S I T Y O F A That duty ratio is calculated as: Δ% = t / T. It is written about the value of "t" as PWMChange0-3[SeqSelector] per sequence into the Registry.

  • Page 83: Plc/Logical Operation On Inputs

    SVS-VISTEK 7.3.5 PLC/Logical Operation on Inputs The logic input combines trigger signals with Boolean algorithms. The camera provides AND, NAND, OR, NOR as below. You might connect 2 signals on the logic input. The result can be connected to a camera trigger signal or it may be source for the next logical operation with another input.

  • Page 84: Serial Data Interfaces

    SVS-VISTEK If neither input is high, a low pulse_out (0) results. Combine trigger input one and two. Y = A v B No trigger input – one nor two – results in a high or a low level pulse_out. Invert both trigger inputs. By inverting the resulting pulse_out you will get the NOR I pulse Y = A ⊽...
  • Page 85 SVS-VISTEK In the SVCam’s these signals are used to send low-power data signals to control light or lenses (MFT). Serial interface Parameter RS-232 RS-422 Maximum open-circuit voltage ±25 V ±6 V Max Differential Voltage 25 V 10 V Min. Signal Range ±3 V...
  • Page 86 SVS-VISTEK UART Packaging Data into containers (adding start and stop bits) is implemented by the UART (Universal Asynchronous Receiver Transmitter) Figure 78: UART encoding of a data stream RS-422 RS-422 is a differential low voltage communication standard. Figure 79: LVDS signal – no return to zero volt...

  • Page 87: Trigger-Edge Sensitivity

    SVS-VISTEK 7.3.7 Trigger-Edge Sensitivity Trigger-Edge Sensitivity is implemented by a “schmitt trigger”. Instead of triggering to a certain value Schmitt trigger provides a threshold. Figure 80:illlustration of schmitt trigger noise suspension - high to low I low to high 7.3.8 Debouncing Trigger Signals Bounces or glitches caused by a switch can be avoided by software within the SVCam.
  • Page 88 SVS-VISTEK Therefor the signal will not be accepted till it lasts at least a certain time. Use the IO Assignment tool to place and enable the debouncer module in between the “trigger” (schmitt trigger) and the input source (e.g.: line DebouncDuration register can be set in multiples of 15ns (implement of system clock).

  • Page 89: Prescale

    SVS-VISTEK 7.3.9 Prescale The Prescaler function can be used for masking off input pulses by applying a divisor with a 4-bit word, resulting in 16 unique settings. > Reducing count of interpreted trigger signal > Use the prescaler to ignore a certain count of trigger signals.

  • Page 90: Ir Cut Filter

    SVS-VISTEK 7.4 IR Cut Filter To avoid influences of infrared light to your image, cameras are equipped with an IR cut filter or an anti-refection coated glass (AR filter). In addition filters raise the protection class of the camera by protecting the sensor and camera internals from environmental influences.
  • Page 91 White balance gets much more difficult. Contrasts get lost because of IR light influencing also blue and green pixels. SVS-VISTEK recommends IR cut filter for high demands on color or sharpness whether monochrome or color sensors. Spectral Impact of IR Cut Filters IR cut filter do influence the spectral sensitivity of the sensor.

  • Page 92: Specifications

    Specifications All specifications can be viewed as well on our website, www.svs- vistek.com We are proud to have ongoing development on our cameras, so specs might change and new features being added. SVS-VISTEK–Specifications IR Cut Filter...

  • Page 93: Evo1050*Flgea

    SVS-VISTEK Evo1050*FLGEA Model evo1050MFLGEA evo1050CFLGEA familiy active pixel w x h 1024 x 1024 1024 x 1024 max. frame rate 147 fps 147 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-01050-A KAI-01050-C sensor manufacturer...
  • Page 94 160 g protection class IP40 IP40 power consumption 7,0 W 7,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...

  • Page 95: Evo1050*Flgec

    SVS-VISTEK Evo1050*FLGEC Model evo1050MFLGEC evo1050CFLGEC familiy active pixel w x h 1024 x 1024 1024 x 1024 max. frame rate 121 fps 121 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-01050-A KAI-01050-C sensor manufacturer...
  • Page 96 160 g protection class IP40 IP40 power consumption 6,0 W 6,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...
  • Page 97 SVS-VISTEK Spectral Sensitivity Characteristics KAI-01050-C Spectral Sensitivity Characteristics KAI-01050-A Specifications...

  • Page 98: Evo2050*Flgea

    SVS-VISTEK Evo2050*FLGEA Model evo2050MFLGEA evo2050CFLGEA familiy active pixel w x h 1600 x 1200 1600 x 1200 max. frame rate 81,8 fps 81,8 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-02050-A KAI-02050-C sensor manufacturer...
  • Page 99 160 g protection class IP40 IP40 power consumption 7,0 W 6,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...

  • Page 100: Evo2050*Flgec

    SVS-VISTEK Evo2050*FLGEC Model evo2050MFLGEC evo2050CFLGEC familiy active pixel w x h 1600 x 1200 1600 x 1200 max. frame rate 65,4 fps 65,4 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-02050-A KAI-02050-C sensor manufacturer...
  • Page 101 160 g protection class IP40 IP40 power consumption 6,0 W 7,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...
  • Page 102 SVS-VISTEK Spectral Sensitivity Characteristics KAI-02050-C Spectral Sensitivity Characteristics KAI-02050-A Specifications...

  • Page 103: Evo2150*Flgea

    SVS-VISTEK Evo2150*FLGEA Model evo2150MFLGEA evo2150CFLGEA familiy active pixel w x h 1920 x 1080 1920 x 1080 max. frame rate 78 fps 78 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-02150-A KAI-02150-C sensor manufacturer...
  • Page 104 160 g protection class IP40 IP40 power consumption 7,0 W 7,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...

  • Page 105: Evo2150*Flgec

    SVS-VISTEK Evo2150*FLGEC Model evo2150MFLGEC evo2150CFLGEC familiy active pixel w x h 1920 x 1080 1920 x 1080 max. frame rate 62,4 fps 62,4 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-02150-A KAI-02150-C sensor manufacturer...
  • Page 106 160 g protection class IP40 IP40 power consumption 6,0 W 6,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...
  • Page 107 SVS-VISTEK Spectral Sensitivity Characteristics KAI-02150-C Spectral Sensitivity Characteristics KAI-02150-A Specifications...

  • Page 108: Evo4050*Flgea

    SVS-VISTEK Evo4050*FLGEA Model evo4050CFLGEA evo4050MFLGEA familiy active pixel w x h 2336 x 1752 2336 x 1752 max. frame rate 41,6 fps 41,6 fps chroma color mono interface Dual GigE Vision Dual GigE Vision sensor name KAI-04050-C KAI-04050-A sensor manufacturer...
  • Page 109 160 g protection class IP40 IP40 power consumption 7,0 W 7,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...

  • Page 110: Evo4050*Flgec

    SVS-VISTEK Evo4050*FLGEC Model evo4050MFLGEC evo4050CFLGEC familiy active pixel w x h 2336 x 1752 2336 x 1752 max. frame rate 33,2 fps 33,2 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-04050-A KAI-04050-C sensor manufacturer...
  • Page 111 160 g protection class IP40 IP40 power consumption 6,0 W 6,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...
  • Page 112 SVS-VISTEK Spectral Sensitivity Characteristics KAI-04050-C Spectral Sensitivity Characteristics KAI-04050-A Specifications...

  • Page 113: Evo4070*Flgea

    SVS-VISTEK 8.9 Evo4070*FLGEA Model evo4050CFLGEA evo4050MFLGEA familiy active pixel w x h 2336 x 1752 2336 x 1752 max. frame rate 41,6 fps 41,6 fps chroma color mono interface Dual GigE Vision Dual GigE Vision sensor name KAI-04050-C KAI-04050-A sensor manufacturer...
  • Page 114 160 g protection class IP40 IP40 power consumption 7,0 W 7,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...

  • Page 115: Evo4070*Flgec

    SVS-VISTEK 8.10 Evo4070*FLGEC Model evo4070CFLGEC evo4070MFLGEC familiy active pixel w x h 2048 x 2048 2048 x 2048 max. frame rate 31,4 fps 31,4 fps chroma color mono interface Dual GigE Vision Dual GigE Vision sensor name KAI-4070-C KAI-4070-A sensor manufacturer...
  • Page 116 SVS-VISTEK trigger intern / extern / soft x / x / x x / x / x trigger edge high / low x / x x / x sequencer PWM power out trigger IN TTL-24 V outputs open drain optical in / out...
  • Page 117 SVS-VISTEK Spectral Sensitivity Characteristics KAI-04070-C Spectral Sensitivity Characteristics KAI-04070-A Specifications...

  • Page 118: Evo8050*Flgea

    SVS-VISTEK 8.11 Evo8050*FLGEA Model evo8050MFLGEA evo8050CFLGEA familiy active pixel w x h 3296 x 2472 3296 x 2472 max. frame rate 21,8 fps 21,8 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-08050-A KAI-08050-C sensor manufacturer...
  • Page 119 160 g protection class IP40 IP40 power consumption 7,0 W 7,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status replaced replaced (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...

  • Page 120: Evo8050*Flgec

    SVS-VISTEK 8.12 Evo8050*FLGEC Model evo8050MFLGEC evo8050CFLGEC familiy active pixel w x h 3296 x 2472 3296 x 2472 max. frame rate 17,5 fps 17,5 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-08050-A KAI-08050-C sensor manufacturer...
  • Page 121 160 g protection class IP40 IP40 power consumption 6,0 W 6,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status replaced replaced (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...
  • Page 122 SVS-VISTEK Spectral Sensitivity Characteristics KAI-08050-C Spectral Sensitivity Characteristics KAI-08050-A Figure 88: Spectral Sensitivity Characteristics KAI-08050-A-A Specifications...

  • Page 123: Evo8051*Flgea

    SVS-VISTEK 8.13 Evo8051*FLGEA Model evo8051CFLGEA evo8051MFLGEA familiy active pixel w x h 3296 x 2472 3296 x 2472 max. frame rate 21,8 fps 21,8 fps chroma color mono interface Dual GigE Vision Dual GigE Vision sensor name KAI-08051-FXA KAI-08051-AXA sensor manufacturer...
  • Page 124 160 g protection class IP40 IP40 power consumption 7,0 W 7,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status production production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...

  • Page 125: Evo8051*Flgec

    SVS-VISTEK 8.14 Evo8051*FLGEC Model evo8051MFLGEC evo8051CFLGEC familiy active pixel w x h 3296 x 2472 3296 x 2472 max. frame rate 17,5 fps 17,5 fps chroma mono color interface Dual GigE Vision Dual GigE Vision sensor name KAI-08051-AXA KAI-08051-FXA sensor manufacturer...
  • Page 126 160 g protection class IP40 IP40 power consumption 6,0 W 6,0 W ambient temperature -10...45°C -10...45°C rel. humidity non-condensing 0…0 % 0…0 % status replaced production (1) please refer to model drawings © SVS-VISTEK March 23, 2017 March 23, 2017 Specifications...
  • Page 127 SVS-VISTEK Spectral Sensitivity Characteristics KAI-08051-C Spectral Sensitivity Characteristics KAI-08051-A Specifications...

  • Page 128: Terms Of Warranty

    Seller makes no other warranties express or implied, and specifically, seller makes no warranty of merchantability of fitness for particular purpose. Please contact your local distributor first. What to do in case of Malfunction SVS-VISTEK–Terms of warranty IR Cut Filter...

  • Page 129: Troubleshooting

    SVS-VISTEK 10 Troubleshooting 10.1 FAQ Problem Solution Camera does not respond to light. Check if camera is set to “Mode 0“. I.e. free running with programmed exposure ctrl. When done, check with the program “Convenient Cam“ if you can read back any data from the camera, such as “Mode“, “type“ of CCD, exposure time settings, etc..

  • Page 130: Support Request Form / Check List

    SVS-VISTEK Please fax this form to your 10.2 Support Request Form / Check List local distributor. The right Fax number you can find on our Dear valued customer, homepage: http://www.svs- In order to help you with your camera and any interfacing problems we vistek.com...
  • Page 131 SVS-VISTEK Space for further descriptions, screenshots and log-files Troubleshooting...

  • Page 132: Ip Protection Classes

    The conditions must, however, be more severe than code 7 Protected against water from high- pressure Water directed at the enclosure from any angle under high and steam jet cleaning pressure must not have any harmful effect SVS-VISTEK–IP protection classes Support Request Form / Check List...

  • Page 133: Glossary Of Terms

    SVS-VISTEK 12 Glossary of Terms Spherical aberration occurs when light rays enter near the edge of the lens; Aberration Chromatic aberration is caused by different refractive indexes of different wavelengths of the light. (Blue is more refractive than red) Analogue-to-Digital Converter, also known as A/D converter In optics, Aperture defines a hole or an opening through which light travels.
  • Page 134 A camera RAW image file contains minimally processed data from the image sensor. It is referred as raw in its meaning. SVS-VISTEK plays out RAW only. Read-Out control defines a delay between exposure and image readout. It...
  • Page 135 SVS-VISTEK A bright light source with a very short light pulse. Ideal for use with Strobe light industrial cameras, e.g. for “freezing” the image capture of fast moving objects. Can often be a substitute for the electronic shutter of the image sensor.

  • Page 136: Index Of Figures

    Figure 1: illustration of rising amount of values/gray scales by increasing the bit format .................. 43 Figure 3: Simplified illustration of a quantification graph ..... 43 Figure 31: illustration of shade difference in 8 bit format ..... 43 SVS-VISTEK–Index of figures Support Request Form / Check List...
  • Page 137 SVS-VISTEK As shown in figure 32 differences in shades of gray are hardly visable on screen or in print................43 Figure 33: Figure of original picture - black & white ......44 Figure 34: Figure of quantification with 6 shades of gray (reduced colour depth) .....................
  • Page 138 SVS-VISTEK Figure 69: Illustration of conventional schematic electric circuit ... 73 Figure 70: Illustration of schematic wiring with 4IO model using the break out box (matrix) ................74 Figure 71: pulseloop for strobe and exposure ........74 Figure 72: pulseloop – activating three cameras ........ 75 Figure 9: Illustration of an application using the 4IO ......

  • Page 139: Index

    CCD 38, 47, 50, 55, 62 Example: 80 Clock 56 Execute firmware update 19 Color 45, 51 Exposure 42, 57, 79 Compact Power 8 Exposure Delay 77 Connecting multiple Cameras External Trigger (Exposure Time) 24, 31 SVS-VISTEK– Support Request Form / Check List...
  • Page 140 SVS-VISTEK FAQ 129 IO Assignment 87 Features 8 IP protection classes 132 Feature-Set 38 IR cut filter 45, 90 Filter 90 ISO 48 Firmware 19 Jumbo Frames 23, 28, 29 Kelvin 45 Firmware update 18 LED 56 Firmware Update GigE 19...
  • Page 141 SVS-VISTEK Packet loss 30 Software Trigger 59 Packet lost 23, 28 Space for further descriptions, screenshots and log-files Performing builtin shading correction 64 Specifications 92 Pixel Correction 63 Spectral Impact of IR Cut Filters PLC/Logical Operation on Inputs 83 Spectral Sensitivity...
  • Page 142 SVS-VISTEK Spectral Sensitivity Temperature Sensor 56 Characteristics KAI-08051- temperatures 45 C 127 Terms of warranty 128 Standard Tap Geometries 53 The Debouncer module 88 Strobe 65, 72 The EVO Series 8 Strobe Control 72 The prescale module 89 Strobe Control Example Setup...

This manual is also suitable for:

Evo1050trEvo2050trEvo2150trEco4050tr

Table of Contents
