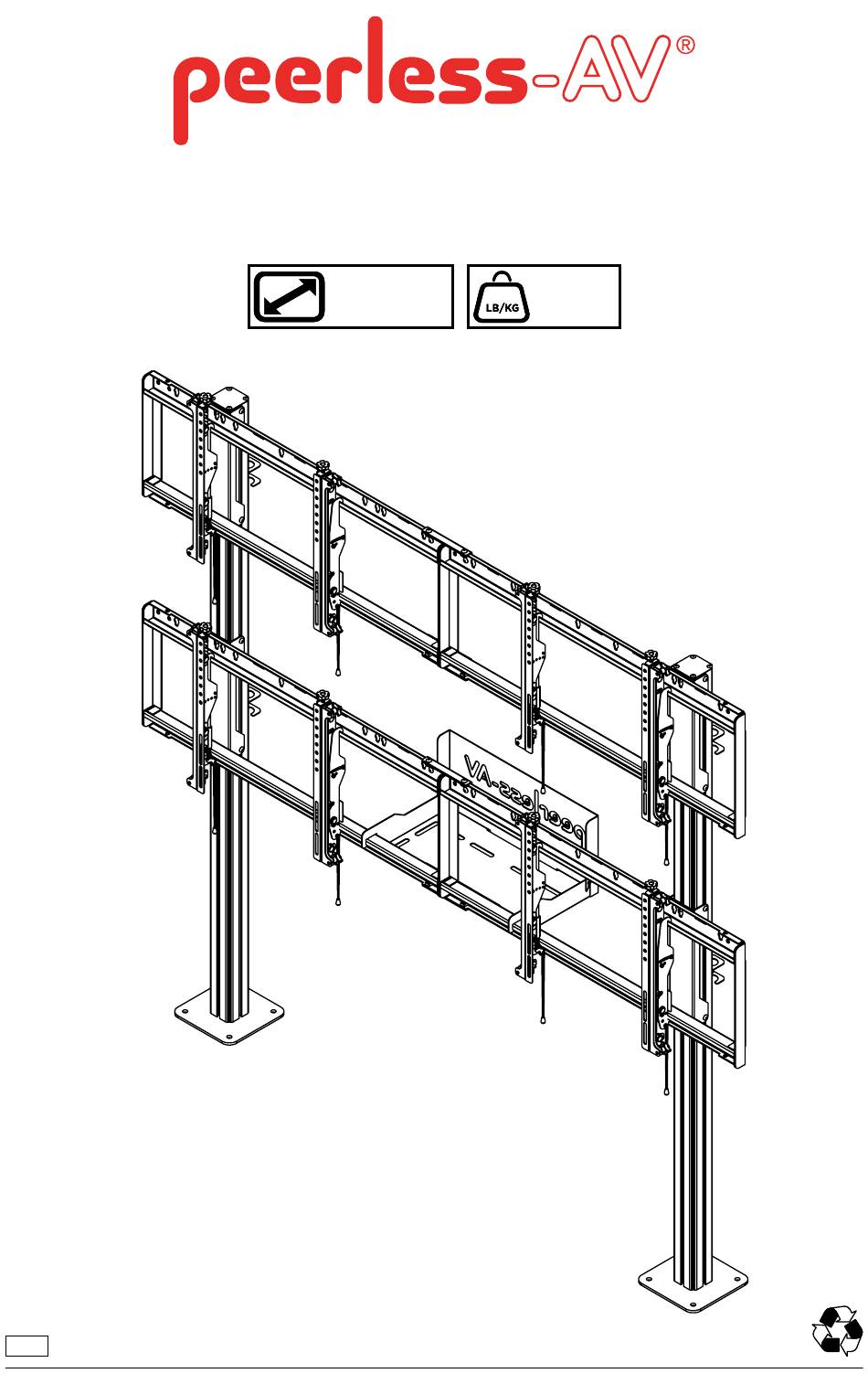

DS-S560-2X2
46" - 55"
500 lb
MAX
(117 -140 cm)
(227 kg)
ENG
1
2014-07-29 #:009-9087-4 (2018-03-06)

Advertisement

Table of Contents
loading

Related Manuals for peerless-AV DS-S560-2X2

Summary of Contents for peerless-AV DS-S560-2X2

  • Page 1 DS-S560-2X2 46" - 55" 500 lb (117 -140 cm) (227 kg) 2014-07-29 #:009-9087-4 (2018-03-06)
  • Page 2 WARNING ENG - Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product must be installed onto flat, hard, level surface to prevent tipping. Use with heavier displays may result in instability causing tip over resulting in death or serious injury.
  • Page 3 Tools Needed for Assembly. To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. 3/8" (10mm) +1/2 3/8" (10mm) 2014-07-29 #:009-9087-4 (2018-03-06)
  • Page 4 Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # pedestal 146-T1132 column 146-T1131 cover 145-T1809 vertical support bracket 145-T1806 left adaptor bracket 146-1609 right adaptor bracket 146-1608 computer cover 145-T1930 computer shelf 145-T1931 dual cross support 146-T1905 cord bracket...

  • Page 5: Table Of Contents

    G ( 1 ) H ( 1 ) I ( 2 ) computer cover computer shelf dual cross support J ( 4 ) K ( 4 ) cord knob bracket L ( 40 ) M ( 16 ) N ( 8 ) O ( 10 ) P ( 1 ) M8 x 16mm...
  • Page 6 U (4) 2014-07-29 #:009-9087-4 (2018-03-06)

  • Page 7: I ( 2 )

    WARNING ENG - When installing Peerless mounts on a concrete floor, the floor must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other finishing material. ADVERTENCIA ESP - Cuando vaya a instalar soportes de techo de Peerless en techos de concreto, los techos tienen que tener, por lo menos, 8"...
  • Page 8 Drill mounting holes into supporting surface (3" (76mm) minimum depth required). Align base. Mark mounting holes. 3/8" (10mm) 3/8" 3" (10mm) (76mm) 55.00" (1397mm) 3/8" (10mm) Align base. Install using concrete anchors provided. V (8) Tighten. ENG Maximum 35 ft • lb (47 N.M.). 55.00"...

  • Page 9: L ( 40 )

    M (4) 1/8" 1/8" (3mm) (3mm) L (6) TIGHTEN CONNECTING HARDWARE D (4) DISPLAY HEIGHT 2014-07-29 #:009-9087-4 (2018-03-06)
  • Page 10 N (4) J (2) K (2) TIGHTEN CONNECTING HARDWARE TOP VIEW 2014-07-29 #:009-9087-4 (2018-03-06)
  • Page 11 Tighten. Tighten. Cross supports must center on columns. 2014-07-29 #:009-9087-4 (2018-03-06)
  • Page 12 TIGHTEN CONNECTING HARDWARE Tighten. Tighten. Cross supports must center on columns. 2014-07-29 #:009-9087-4 (2018-03-06)
  • Page 13 Center adapter brackets vertically on back of screen. 2014-07-29 #:009-9087-4 (2018-03-06)

  • Page 14: T ( 1 )

    Hook on displays and secure pin in "locked" position. Must hang displays on top row second; Secure pin in "locked" position. OPTIONAL: Insert M5 x 10mm type-F socket pin screws (O) to lock latches. "LOCKED" POSITION 2014-07-29 #:009-9087-4 (2018-03-06)
  • Page 15 Display Adjustment TILT FORWARD SIDE SIDE SIDE TILT BACKWARD TILT RIGHT TILT LEFT SIDE DOWN ROTATE LEFT ROTATE RIGHT 2014-07-29 #:009-9087-4 (2018-03-06)
  • Page 16 2014-07-29 #:009-9087-4 (2018-03-06)

  • Page 17: H ( 1 )

    1/8" (3mm) O (2) TIGHTEN CONNECTING HARDWARE 2014-07-29 #:009-9087-4 (2018-03-06)

  • Page 18: J ( 4 )

    Route cables through cord brackets. 2014-07-29 #:009-9087-4 (2018-03-06)
  • Page 19 LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless products will be free from defects in material and ® workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture).
  • Page 20 Peerless-AV Peerless-AV Europe Peerless-AV de Mexico 2300 White Oak Circle Unit 3 Watford Interchange, Ave de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom Escobedo N.L Mexico 66062 Ph: (800) 865-2112...
