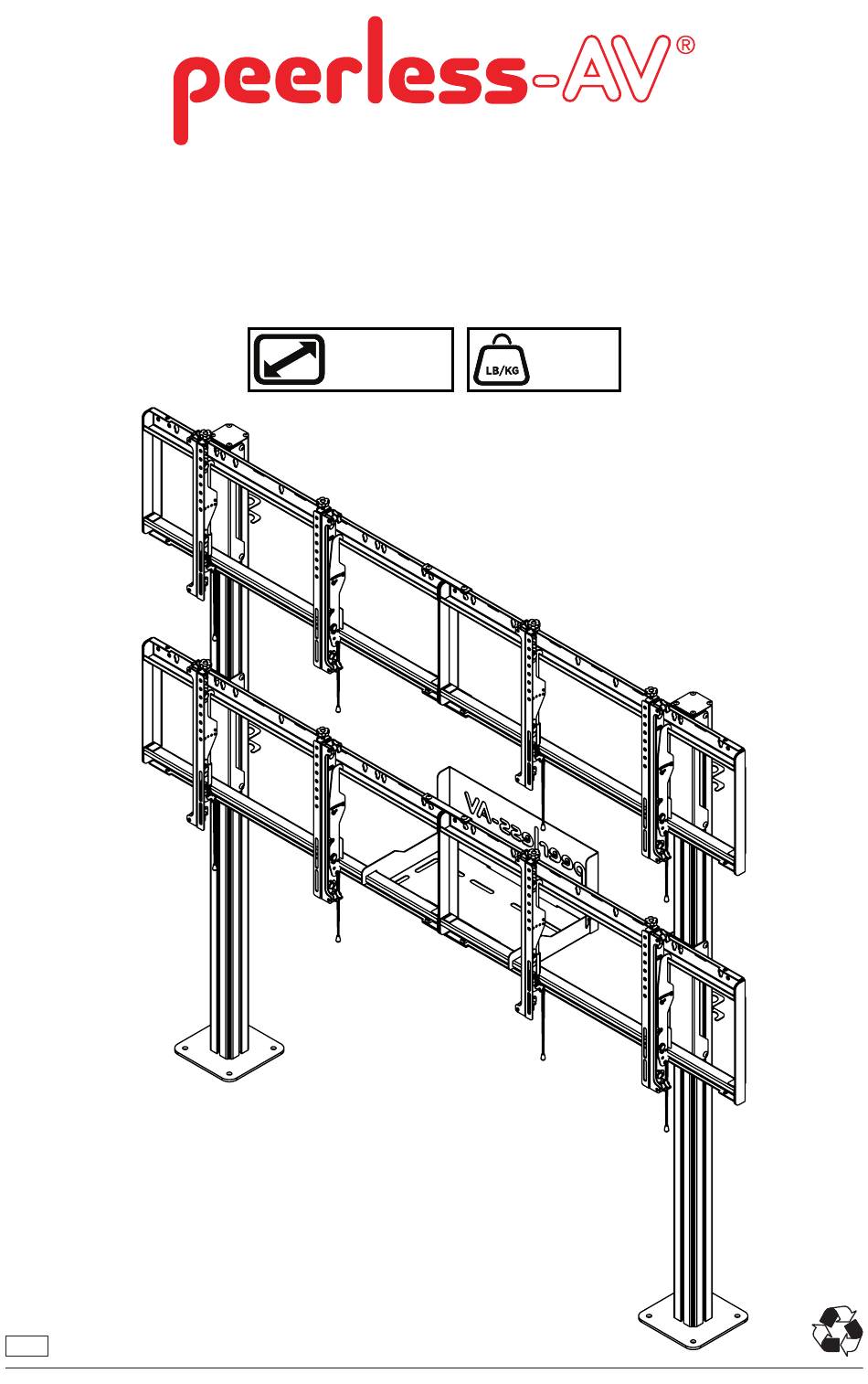

Page 2
WARNING ENG - This product is designed to be installed on solid concrete. Hardware is included for solid concrete installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
Page 3
This page intentionally left blank. 2014-07-29 #:009-9087-6 (2020-01-14)
Page 4
Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # pedestal 147-T1426 column 146-T1131 cover 145-T1809 vertical support bracket 145-T1806 left adaptor bracket 146-1609 right adaptor bracket 146-1608 computer cover 145-T1930 computer shelf 145-T1931 dual cross support 146-T1905 cord bracket...
G ( 1 ) H ( 1 ) I ( 2 ) computer cover computer shelf dual cross support J ( 4 ) K ( 4 ) cord knob bracket L ( 40 ) M ( 16 ) N ( 8 ) O ( 10 ) P ( 1 ) M8 x 16mm...
M (4) 1/8" 1/8" (3mm) (3mm) L (6) TIGHTEN CONNECTING HARDWARE D (4) DISPLAY HEIGHT 2014-07-29 #:009-9087-6 (2020-01-14)
Page 8
N (4) J (2) K (2) TIGHTEN CONNECTING HARDWARE TOP VIEW 2014-07-29 #:009-9087-6 (2020-01-14)
Page 9
WARNING ENG - When installing Peerless mounts on a concrete floor, the floor must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other finishing material. 2014-07-29 #:009-9087-6 (2020-01-14)
Page 10
Drill mounting holes into supporting surface (3" (76mm) minimum depth required). Align base. Mark mounting holes. 3/8" (10mm) 3" 3/8" (76mm) (10mm) 55.00" (1397mm) 3/8" (10mm) Align base. Install using concrete anchors provided. V (8) ENG Maximum 35 ft • lb (47 N.M.). 55.00"...
Page 11
Tighten. Tighten. Cross supports must center on columns. 2014-07-29 #:009-9087-6 (2020-01-14)
Page 12
TIGHTEN CONNECTING HARDWARE Tighten. Tighten. Cross supports must center on columns. 2014-07-29 #:009-9087-6 (2020-01-14)
Page 13
Center adaptor brackets vertically on back of screen. 2014-07-29 #:009-9087-6 (2020-01-14)
Page 14
"LOCKED" POSITION Must hang displays on bottom row first; Secure pin in "locked" position. Optional: Insert M5 x 10mm type-F socket pin screws (O) to lock latches. "LOCKED" POSITION 2014-07-29 #:009-9087-6 (2020-01-14)
Page 15
Display adjustment TILT FORWARD SIDE SIDE SIDE TILT BACKWARD TILT RIGHT TILT LEFT SIDE DOWN ROTATE LEFT ROTATE RIGHT 2014-07-29 #:009-9087-6 (2020-01-14)
Route cables through cord brackets. 2014-07-29 #:009-9087-6 (2020-01-14)
Page 19
