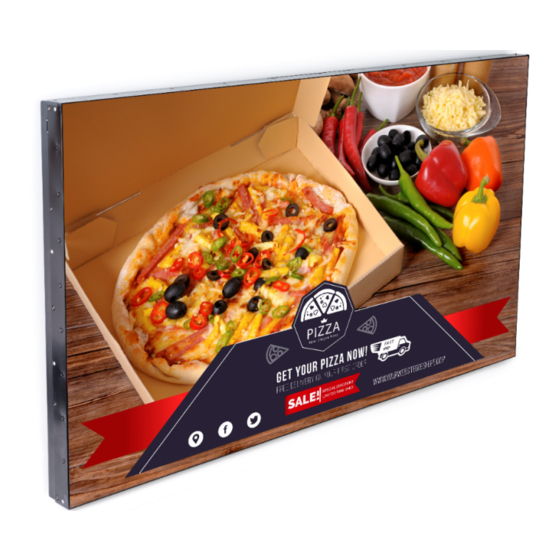

49" Video Wall
Installation Manual
Displays2Go Part Numbers:
VWTV49PL (Single Screen)
Scan QR code to visit the product page:
If you have any questions regarding our products, please visit us at
www.displays2go.com or contact D2G customer service at 844-221-3393
Video Wall Installation Manual
VW22WL49 (2x2 Bundle)
1
Ver.08/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go VWTV49PL
Summary of Contents for Displays2go VWTV49PL
- Page 1 Installation Manual Ver.08/18 Displays2Go Part Numbers: VWTV49PL (Single Screen) VW22WL49 (2x2 Bundle) Scan QR code to visit the product page: If you have any questions regarding our products, please visit us at www.displays2go.com or contact D2G customer service at 844-221-3393...
-
Page 2: Table Of Contents
Video Wall Installation Manual Table of Contents 1. Preface ......................... 3 2. Open-package Inspection .................... 3 2.1 Open-package inspection according to the after-sale standard ......3 2.2 Warnings ......................4 2.3 Electrified inspection ..................9 3. Installation ........................10 3.1 Attentions ......................10 3.2 Video Wall Unit Installation ................11 4. -
Page 3: Preface
Video Wall User Manual 1. Preface This manual is used to guide the user through the features and settings of this video wall system. Please read this manual carefully before operating your set and retain it for future use. Note: Please handle the video wall displays with extreme care as they are fragile. Two or three people needed to handle the LCD panels. -
Page 4: Warnings
2.2 Warnings Important Precautions Please read these safety precautions carefully before using the product. Failure to follow those warnings may result in death, serious injury or damage to the product or other property. Note: This product is for indoor use only Electrical Power Related Precautions ... - Page 5 Insert the power plug firmly so it cannot come loose. • A loose connection can cause fire. Hold the plug when pulling out the power cable. Do not pull the plug out by the wire. Do not bend the power cord with excessive force or put heavy objects on the power cord.
- Page 6 Do not drop an object on or apply impact to the product. Do not throw any toys or objects at the product. • It can cause injury to humans, problems to the product and damage the display. Keep out of reach of children and do not place toys near the product. ...
- Page 7 On Disposal (Only, Hg Lamp used LCD Monitor) The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority.
- Page 8 Item LCD Screen Power cord 1 piece for each screen HDMI cable 1 piece for each screen Internet Cable 1 piece for each screen Remote Controller Infrared Receiver...
-
Page 9: Electrified Inspection
Video Wall Installation Manual 2.3 Electrified inspection Once opening the package, please check the integrity of the screen first, then you can carry on the electrified inspection. Note: Put the screen on a protected flat surface with the screen facing upwards The inspection steps are as follows: Step 1: Press the “Menu”... -
Page 10: Installation
Video Wall Installation Manual 3. Installation 3.1 Attention Handle with care Careful installation Keep smooth Note: (1) Confirm that the wall strength is sufficient to support the weight of the LCD screen (30kg for each screen, plus the weight of the mounts of your choice). (2) Make sure that the wall is a smooth surface. -
Page 11: Video Wall Unit Installation
Video Wall Installation Manual 3.2 Video Wall Unit Installation - Installation of the video wall mounts should be done first. - Please refer to the instruction sheet of the video wall mount of your choice to install 3.2.1 Video Wall Unit Installation It needs two or three people to lift the screen up to the bracket and one person to install the screen. - Page 12 Video Wall Installation Manual (3) The installation must be operated from bottom to the top and from left to the right to ensure the screen in accurate position. (4) Tear off its protective film and glue after installing a single screen (5) Please clean the screen after installation...
-
Page 13: Display System
Video Wall Installation Manual 4. Display System 4.1 Screen Splicing Setting There are two ways to finish the screen splicing, please refer to the 4.1.1 and 4.1.2 for the details. 4.1.1 Control cable connection Connect the control cable as following diagram. -
Page 14: Remote Control Setting
Video Wall Installation Manual Note: Use your hand to push the screen into the wall after the cables connected. (Please note that the hand should be touched on the metal frame but not push the glass surface directly). 4.1.2 Remote Control Setting... - Page 15 Video Wall Installation Manual Note: connect the control cable as above diagram, then you can control the whole video by remote control. Click the “Random Number” on the remote control, as shown in the figure 4.1.2.1. 4.1.2.1 1) “ID Check In”: Input the address of screens from start to end. E.g.: Input: “03 01 03 01”, then press “ok”, you can control the screen unit only of address 03 01.
- Page 16 Video Wall Installation Manual “Wall H Units” & “Wall V Units”: The total amounts of the video wall.. ID Set H：Setting the horizontal position of the current screen ID Set V：Setting the vertical position of the current screen Wall H Units：Setting the total number of rows of LCD Wall Wall V Units: Setting the total number of columns of LCD Wall...
-
Page 17: Cleaning Instruction
Video Wall Installation Manual 5. Cleaning Instruction 5.1 Cleaning screen Clean the screen with a non-shrinking dry cloth to avoid damaging the screen surface coating. Do not use chemical fiber cloth or detergent. Its composition may cause the screen surface fade or damage. -
Page 18: Maintenance And Troubleshooting
Video Wall Installation Manual 6. Maintenance and troubleshooting ※ Power Failure Solution: 1) Check the power cable to ensure that both ends are properly inserted into the socket. 2) Ensure the supply power is correct. ※ No input signal appears Solution: 1) Check the signal line to ensure that the connection is reasonable;... - Page 19 Video Wall Installation Manual ※ Spots or stripes on the screen Solution: 1) Equipment power is not connected to the ground. 2) Make sure there are no emissions (cars, high voltage cables or neon lights) or other sources of potential interference ※...
- Page 20 Video Wall Installation Manual get the correct image. ※ Show warning message Solution: 1) Check input signal cable connection. 2) Select the correct input signal. ※ Cannot display the entire screen Solution: 1) Address code error. 2) Check RS232 control cable connection. 3) Check digital DVI video cable connection.
- Page 21 Video Wall Installation Manual 1) Check if the signal cable is well connected. 2) LCD screen failure. ※ LCD unit has no power, black screen Solution: 1) Check if the power plug, socket and cable are well connected. 2) Check if the switch (OSD button or remote control) is in the state of power on. 3) Check if the drive board is in good condition.
-
Page 22: Technical Specifications
Model Parameters Panel LCD size LCD supplier Panel model LD490DUN-THC1 Light source LED backlight Resolution 1920*1080 (pixels) (typ.)/(min) 0cd/m2 (typ.) Contrast (typ.) 1 00:1 (typ.) Response (ms) ms (typ.) Pixel pitch (H) mm * 0. (V) mm rate 60Hz Viewing angle 178°... - Page 23 In*1, OUT*2 (RJ45) HDMI Structure Net weight Gross weight Unit dimensions (W*D*H) 1077.6 115.5 607.8 Package dimensions (W*D*H) 1270 250 900 SPCC Shell material Shell color Black Language English...
