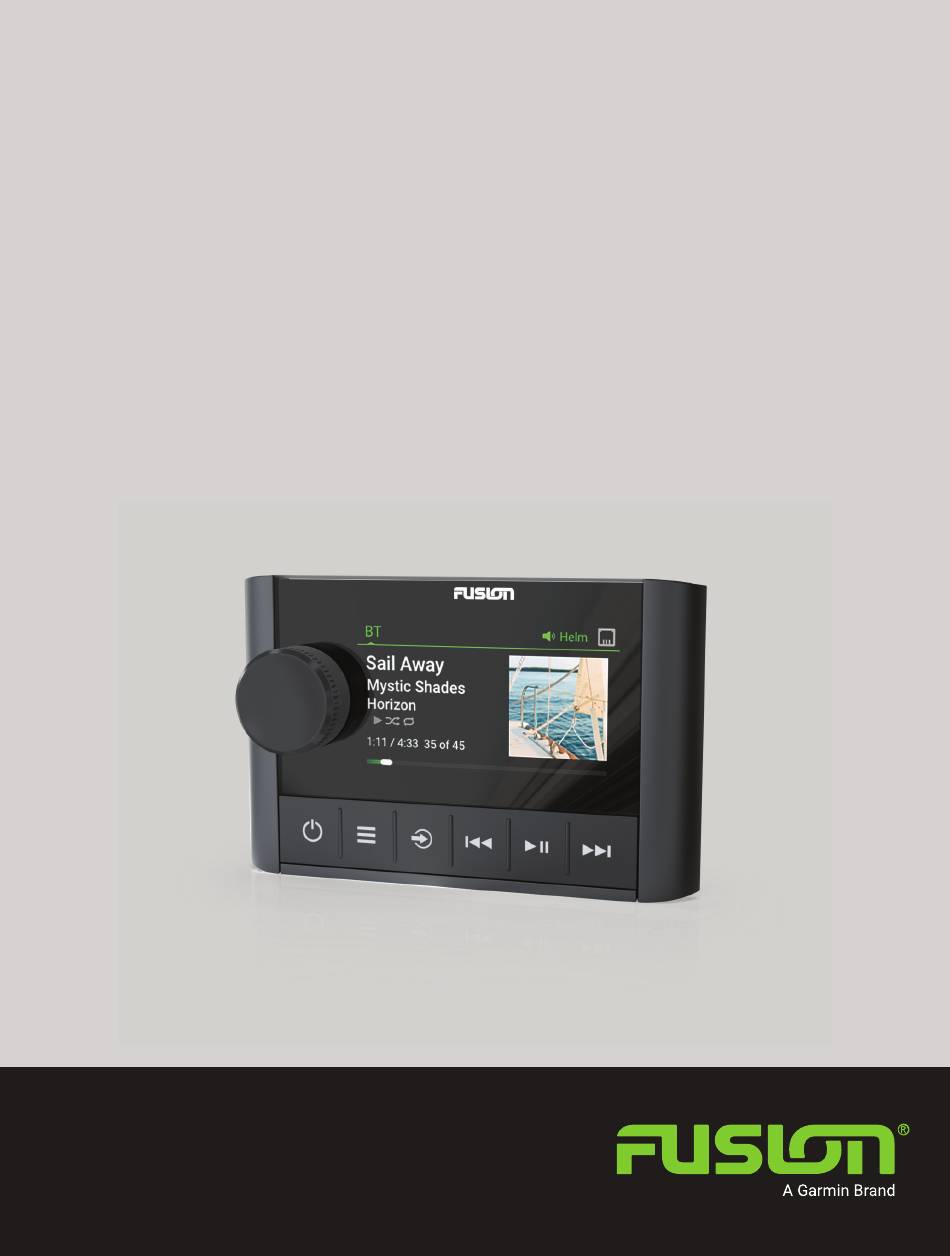

- Page 1 FUSION ® Apollo MS-ERX400 ™ O W N E R ’ S M A N U A L ENGLISH...
- Page 2 © 2020 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to support.garmin.com...
-
Page 3: Table Of Contents
Table of Contents Network Troubleshooting Specifications Dimensions Getting Started Controls Index Using the Dial to Select Items Entering Text Remote Control Screen Naming the Device Setting the Home Zone Selecting a Source Adjusting the Backlight Brightness Adjusting the Volume Muting all Connected Stereos Adjusting the Subwoofer Level Maintaining Individual Zone Volume Levels... - Page 5 ® stereos. For a list of compatible stereos, go to garmin.com/account/register/ or consult your Fusion dealer. To help you understand how the remote control works, this manual contains general operational instructions and information about settings for the remote control. The available features and functions of the remote control vary based on the stereo you are controlling and the types of sources connected to the stereo.
-
Page 6: Controls
Controls • Turn to adjust the volume. • When adjusting the volume, press to switch between zones. • Turn to move through the menus or adjust a setting. Dial • When in a menu, press to select the highlighted option. •... -
Page 7: Using The Dial To Select Items
◦ Press to return to the previous DAB station in the ensemble. When you reach the beginning of the current ensemble, the stereo automatically changes to the last available station in the previous ensemble. ◦ Press and hold to return to the previous DAB ensemble. •... -
Page 8: Remote Control Screen
Remote Control Screen The information displayed on the screen varies depending on the source selected. This example shows a track playing on a device connected using Bluetooth ® wireless technology. Source name Active zone and status icons (Network Status Icons, page Track details (if available) Album art (if available from a compatible source) Elapsed time, track duration, and the current track number out of the total number of tracks in the playlist... -
Page 9: Selecting A Source
Selecting a Source 1 Select 2 Turn the dial to highlight a source. NOTE: If the device is part of a group, continue turning the dial to access the sources on other devices in the group (Fusion PartyBus Networking, page If a source cannot be shared with the group, it will appear gray and you cannot select it. -
Page 10: Maintaining Individual Zone Volume Levels
Maintaining Individual Zone Volume Levels If you adjust the volume levels of individual zones so that some zones are louder than others, the individual zone volume settings are all affected when you adjust the volume for ALL zones. By default, if you adjust the volume for ALL to 00, this sets of the volume levels for all zones to 00 and resets all individual zone volume adjustments. -
Page 11: Editing A Group
Editing a Group 1 Select > GROUPS. 2 Select the name of an existing group. 3 Select the stereos you want to add to or remove from the group. 4 Select DONE. Leaving a Group You can leave the Fusion PartyBus group to play local sources on the stereo. 1 Select >... -
Page 12: Group Synchronization
Group Synchronization By default, groups you create are not maintained when you turn off stereos in the group. If you turn off a single stereo added to the group, it leaves the group. If you turn off the primary stereo in the group, the group is dissolved. -
Page 13: Update Options
DHCP server. STATIC IP: Allows you to set a static IP address for the device (Setting a Static IP Address, page GARMIN MARINE NETWORK: Allows the device to be used on a Garmin ® Marine Network so it can be viewed and controlled by connected Garmin chartplotters. -
Page 14: More Information
• You can program only newer versions of software on the device. 1 Go to the software page for your device on support.garmin.com, and download the update file. 2 Extract contents of the .zip file to the root of your USB storage device. -
Page 15: Network Troubleshooting
Updating the Remote Control Software Using the Fusion Link App You must connect the Fusion-Link app to the network using a wireless router or wireless access point to update the software. You cannot update the software using a Bluetooth connection. If the Fusion PartyBus network has a wireless router or wireless access point, you can update the remote control software using the Fusion-Link app, available for compatible Apple ®... - Page 16 Water rating IEC 60529 IPX6 and IPX7 The device withstands incidental exposure to water of up to 1 m for up to 30 min, and is protected against powerful jets of water. For more information, go to www.garmin.com/waterrating. More Information...
- Page 17 Dimensions Item Measurement 12.3 mm (0.48 in.) 10 mm (0.39 in.) 10.9 mm (0.43 in.) 49.1 mm (1.93 in.) 70 mm (2.76 in.) 110 mm (4.32 in.) More Information...
-
Page 18: Index
Index backlight 5 brightness 5 device cleaning 10 registration 10 factory settings 9 Fusion PartyBus network 9 groups 7, 8 creating 6 editing 7 home zone 4 icons 12 keys 3, 8 language 8 mute 5 name 4 network 6–9, 11, 12 power 6 product registration 10 registering the device 10 settings 6, 9 software, updates 10, 11 source 5, 7 speaker zones 5 home 4 subwoofer 5... - Page 20 FUSION SUPPORT New Zealand 09 369 2900 Australia 1300 736 012 Europe +44 (0) 370 850 1244 623 580 9000 Pacific +64 9 369 2900 S U P P O R T . G A R M I N . C O M January 2022 Printed in Not applicable GUID-BA6558B2-CE05-4971-B868-B34458D147CF v4...
