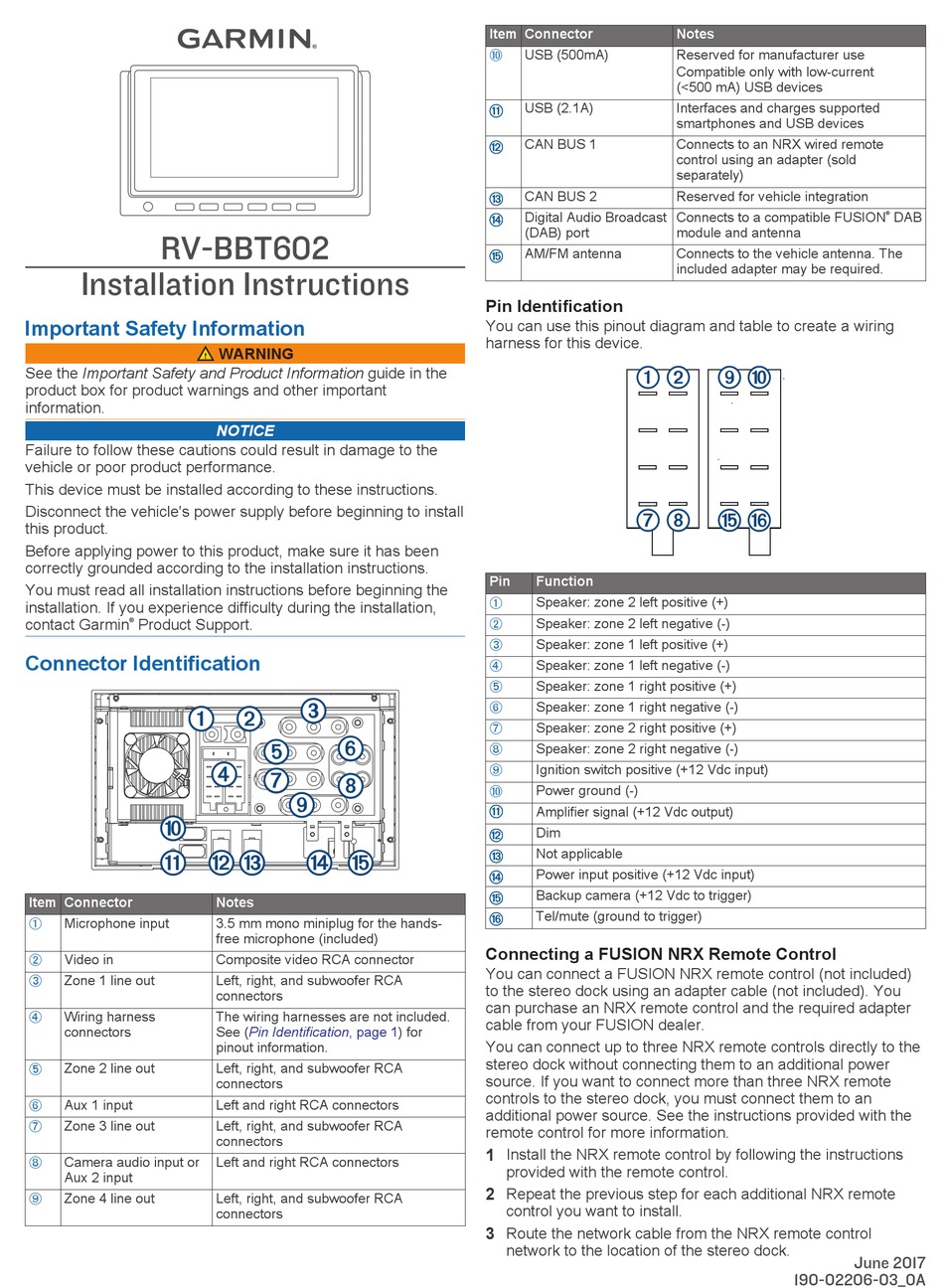

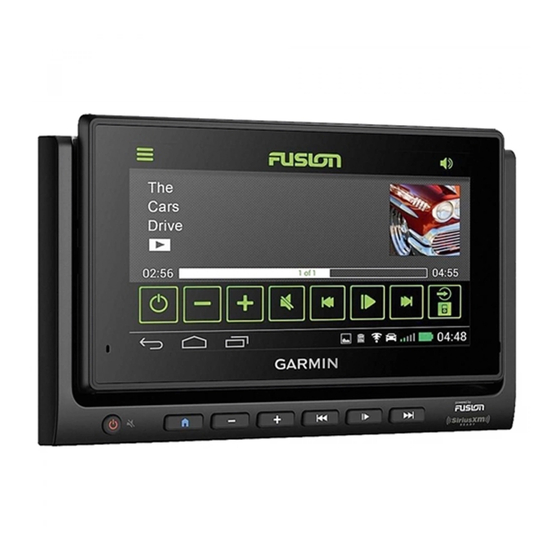

Garmin RV-BBT602 Installation Instructions

RV-BBT602
Installation Instructions
Important Safety Information
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
Failure to follow these cautions could result in damage to the
vehicle or poor product performance.
This device must be installed according to these instructions.
Disconnect the vehicle's power supply before beginning to install
this product.
Before applying power to this product, make sure it has been
correctly grounded according to the installation instructions.
You must read all installation instructions before beginning the
installation. If you experience difficulty during the installation,
contact Garmin Product Support.
®
Connector Identification
Item Connector
Microphone input
À
Á Video in
Zone 1 line out
Â
Wiring harness
Ã
connectors
Ä Zone 2 line out
Å Aux 1 input
Æ Zone 3 line out
Ç Camera audio input or
Aux 2 input
È Zone 4 line out
WARNING
NOTICE
Notes
3.5 mm mono miniplug for the hands-
free microphone (included)
Composite video RCA connector
Left, right, and subwoofer RCA
connectors
The wiring harnesses are not included.
See (Pin Identification, page 1) for
pinout information.
Left, right, and subwoofer RCA
connectors
Left and right RCA connectors
Left, right, and subwoofer RCA
connectors
Left and right RCA connectors
Left, right, and subwoofer RCA
connectors
Item Connector
É USB (500mA)
USB (2.1A)
CAN BUS 1
CAN BUS 2
Digital Audio Broadcast
(DAB) port
AM/FM antenna
Pin Identification
You can use this pinout diagram and table to create a wiring
harness for this device.
Pin Function
Speaker: zone 2 left positive (+)
À
Á Speaker: zone 2 left negative (-)
 Speaker: zone 1 left positive (+)
à Speaker: zone 1 left negative (-)
Ä Speaker: zone 1 right positive (+)
Speaker: zone 1 right negative (-)
Å
Æ Speaker: zone 2 right positive (+)
Ç Speaker: zone 2 right negative (-)
È Ignition switch positive (+12 Vdc input)
É Power ground (-)
Amplifier signal (+12 Vdc output)
Dim
Not applicable
Power input positive (+12 Vdc input)
Backup camera (+12 Vdc to trigger)
Tel/mute (ground to trigger)
Connecting a FUSION NRX Remote Control
You can connect a FUSION NRX remote control (not included)
to the stereo dock using an adapter cable (not included). You
can purchase an NRX remote control and the required adapter
cable from your FUSION dealer.
You can connect up to three NRX remote controls directly to the
stereo dock without connecting them to an additional power
source. If you want to connect more than three NRX remote
controls to the stereo dock, you must connect them to an
additional power source. See the instructions provided with the
remote control for more information.
1 Install the NRX remote control by following the instructions
provided with the remote control.
2
Repeat the previous step for each additional NRX remote
control you want to install.
3
Route the network cable from the NRX remote control
network to the location of the stereo dock.
Notes
Reserved for manufacturer use
Compatible only with low-current
(<500 mA) USB devices
Interfaces and charges supported
smartphones and USB devices
Connects to an NRX wired remote
control using an adapter (sold
separately)
Reserved for vehicle integration
Connects to a compatible FUSION
module and antenna
Connects to the vehicle antenna. The
included adapter may be required.
June 2017
190-02206-03_0A
