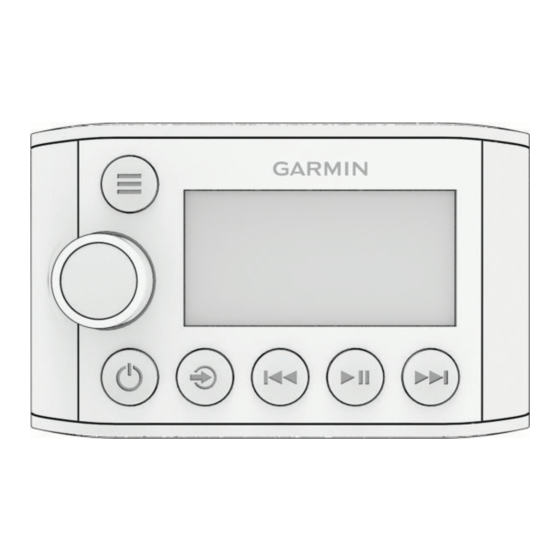

MS-NRX300
INSTALLATION INSTRUCTIONS
Important Safety Information
WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
Failure to install this device according to these instructions could result in personal injury, damage to the vessel
or device, or poor product performance.
CAUTION
To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.
Getting the Owner's Manuals
To fully understand the features and operations of your stereo, you can get the latest stereo owner's manual
and translations of manuals from the web. You can also download the full remote owner's manual for more
information about using this remote.
1 Go to garmin.com/marine.
2 Select a manual.
What's In the Box
• Mounting gasket
• Four 8-gauge, self-tapping screws
• Two screw covers
• 6 m (20 ft.) NMEA 2000
®
backbone cable
• NMEA 2000 T-connector
• Dust cover
February 2024
GUID-56FDBE7F-D572-4ADD-87A0-7729C3FC4E84 v5

Advertisement

Table of Contents
loading

Related Manuals for Garmin MS-NRX300

Summary of Contents for Garmin MS-NRX300

  • Page 1 To fully understand the features and operations of your stereo, you can get the latest stereo owner's manual and translations of manuals from the web. You can also download the full remote owner's manual for more information about using this remote. 1 Go to garmin.com/marine. 2 Select a manual. What's In the Box •...

  • Page 2: Tools Needed

    The Fusion remote control network can support up to three remote controls. If the stereo cannot supply power to the Fusion remote control network, you must connect the MS-NRX300 remote control using the NMEA 2000 network.
  • Page 3 NMEA 2000 power cable, 2 m (6 ft.) NMEA 2000 terminator or backbone cable NMEA 2000 T-connector* *Components included with the MS-NRX300 remote control. NOTE: The NMEA 2000 network may include other NMEA 2000 devices. NMEA 2000 Cables and Software Settings The cables required to connect to the NMEA 2000 network vary depending on the stereo. See the table below to determine which cables and possible software settings are required for your stereo model.
  • Page 4 Stereo Cables and software settings required • Included NMEA 2000 drop cable required. NRX POWER option in • Included NMEA 2000 T-connector required. software. NOTICE Examples: To avoid damaging other devices on the NMEA 2000 network, the NRX POWER • Apollo MS-RA770 ™...
  • Page 5 • You do not have a full NMEA 2000 network on your boat. • You are connecting three or fewer MS-NRX300 remote controls to one Fusion stereo. • You are connecting to a Fusion stereo that can provide power to the remote. The stereo can supply power to the remote control if it has an NRX POWER option in the SETTINGS menu or if a red drop cable is included.

  • Page 6: Mounting Considerations

    Fusion Remote Control Network Cables and Software Settings The cables required to connect to the Fusion remote control network vary depending on the stereo. See the table below to determine which cables and possible software settings are required for your stereo model. The stereo can supply power to the remote control if it has an NRX POWER option in the SETTINGS menu or if a red drop cable is included.
  • Page 7 More Information Specifications Specification Measurement Operating voltage From 10.8 to 16 Vdc negative ground Electrical input current 110 mA at 12 Vdc NMEA 2000 Load Equivalency Number (LEN) 3 (150 mA) Operating temperature From 0 to 50°C (from 32 to 122°F) Storage temperature From -20 to 70°C (from -4 to 158°F) Water rating IEC 60529 IPX7 Top Dimensions...

  • Page 8: Supported Nmea 2000 Pgn Information

    Front Dimensions 110 mm (4.33 in.) 70 mm (2.76 in.) Supported NMEA 2000 PGN Information NOTE: You must connect the device to a NMEA 2000 network for NMEA 2000 support.
  • Page 9 Direction data and COG reference: 130577 • 0: True • 1: Magnetic Registering Your MS-NRX300 Help us better support you by registering the product online. • Go to garmin.com. • Keep the sales receipt, or a copy, in a safe place.

  • Page 10: Software Updates

    *該產品說明書應提供在環保使用期限和特殊標記的部分詳細講解產品的擔保使用條件。 © 2016 Garmin Ltd. or its subsidiaries Garmin , the Garmin logo, Fusion , and the Fusion logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. FUSION-Link is a ® ® ™...
