- Page 1 BT-120 Breaker Tracer Users Manual • Mode d’emploi • Bedienungshandbuch • Manual d’Uso • Manual de uso...
- Page 2 BT-120 Breaker Tracer Users Manual October 2009, Rev.1 ©2009 Amprobe Test Tools. All rights reserved. Printed in China...
- Page 3 Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Amprobe’s behalf.

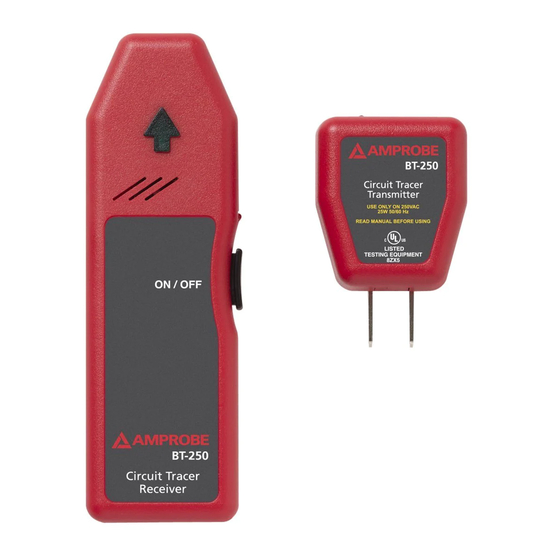

- Page 4 BT-120 Breaker Tracer Sensor Location Identification Arrow LED indicator Battery Compartment ON/OFF Switch Adaptor Prongs Transmitter power LED indicator Receiver power LED indicator...
-
Page 5: Table Of Contents
BT-120 Breaker Tracer CONTENTS SYMBOLS AND WARNINGS ..................2 Safety Information ...................2 Warnings and Precautions ................3 UNPACKING AND INSPECTION ................3 INTRODUCTION .....................4 OPERATION ......................4 SPECIFICATION ......................5 BATTERY REPLACEMENT ..................7 MAINTENANCE AND REPAIR ................7... -
Page 6: Safety Information
Audible tone [Note: Canadian and US.] Safety Information • The BT-120 Breakers Tester is conformed to EN61010-1:2001; CAT II 120 V, class II and pollution degree 1 or 2. • Do not exceed the maximum overload limits (see specifications) nor the limits marked on the instrument itself. -
Page 7: Unpacking And Inspection
The Amprobe BT-120 breaker tracer works on powered systems from 90 to 120 VAC and is designed for use in residential and light commercial environments. It comes complete as a kit with transmitter and receiver. The BT-120 is a preferred solution for the latest in code requirements. Identify circuit breakers fast and efficiently. -
Page 8: Operation
OPERATION Breaker and Fuse Identification 1. Plug the transmitter into an energized 120V wall outlet. Refer to Fig.1. Fig. 1 2. Make sure the red LED is ON to indicate that the outlet is energized. 3. Push the Power switch on the receiver to turn it ON. The receiver will beep and the Power LED will be lit. -
Page 9: Specification
SPECIFICATIONS Operating & Detection Voltage for Transmitter: Model BT-120, 90-120 VAC, Not to exceed ±10% (inclusive in rating) Operating Frequency: 50 - 60 Hertz Storage Temperature: 0-40 Degrees C. OperatingTemperature: 0-40 Degrees C. Sensitivity Adjustment: Automatic PowerSupply: 9-Volt Alkaline Battery.(Receiver Only) - Page 10 Luftfeuchtigkeit: 50% relative Luftfeuchtigkeit (unkondensbar) Umweltbedingungen: Für Innenbenutzung Für Höhen bis auf 2000 Meter über dem Meeresspiegel Verschmutzungsgrad 1 or 2 Installierungskategorie II Warnung / Achtung: Das "BT-VLA" Kabel ist nur nach Anleitung zum "BT-120" herzunehmen. ESPECICACIONES Operación y Detección Voltaje del Trasmisor Modelos: BT-120 90-120 voltios corriente alterna alterna Sin excederse más o menos el 10% (incluyendo el promedio de aumento)
-
Page 11: Battery Replacement
BATTERY REPLACEMENT Power is supplied by 9V Alkaline Battery x1 The Identification Arrow LED on the receiver will not turn ON when replacement is needed. To replace the battery, remove the screw from the back of the meter and slide the battery door outward. Remove the battery from case bottom and replace it with a fresh 9V Alkaline battery.
