4. Set DMX Port

In this menu you can configure the 2 DMX ports.
01) Press the UP/DOWN buttons to choose between Port 1 and Port 2.

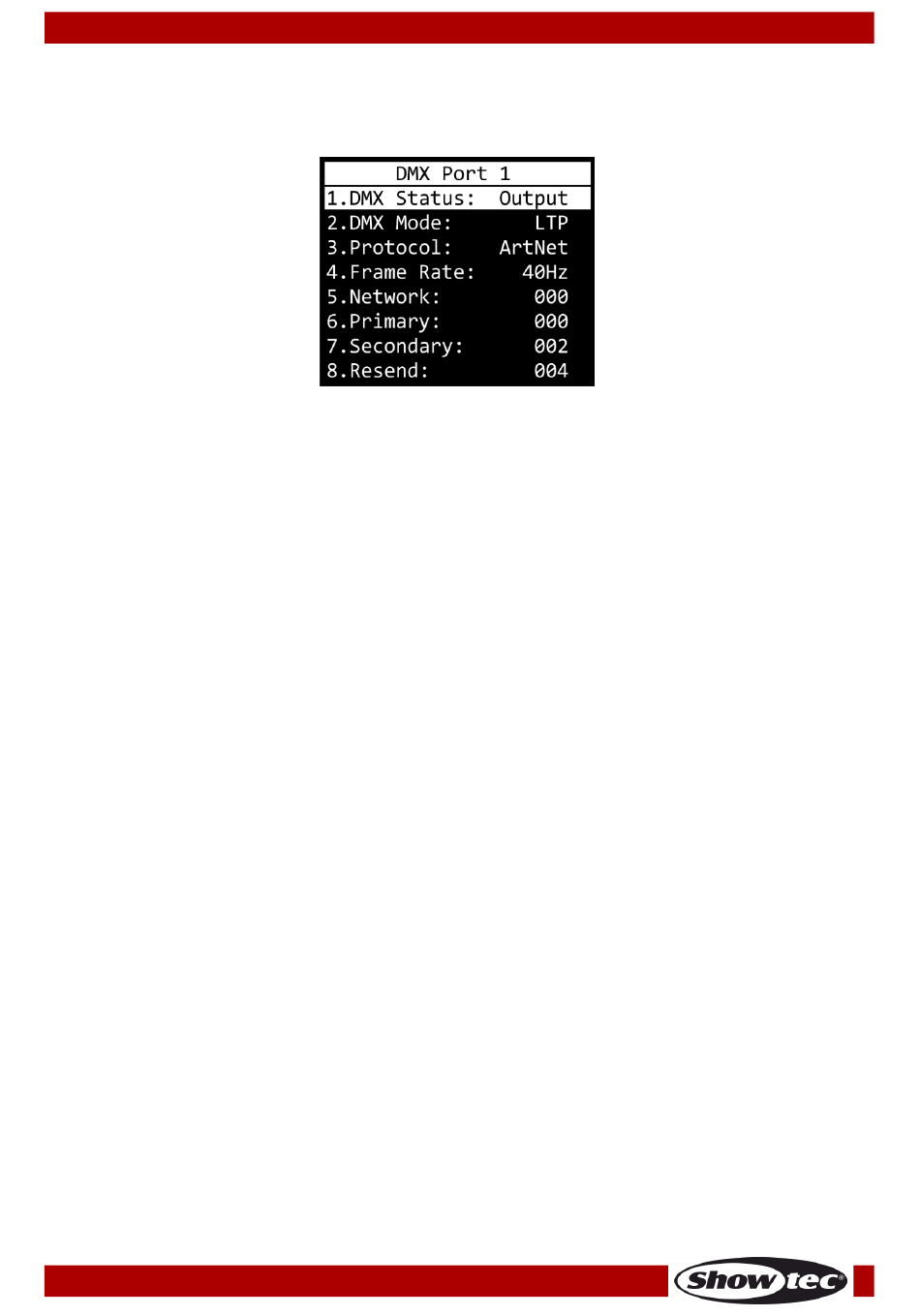

02) Press the ENTER button to confirm your choice. The display shows:
03) Press the UP/DOWN buttons to scroll between the following settings:
1. DMX STATUS: Define the port direction.
● INPUT: The port will be used as an input.
● OUTPUT: The port will be used as an output.
● DISABLE: The port will be disabled.
2. DMX MODE (Depends on whether the port is set as an input or output.)
If the port is set as input:
● NORMAL: Input port acts as a primary controller. The DMX port receives the DMX signal and
sends it to the primary Art-Net/sACN universe.
● BACKUP: Input port acts as a backup controller.
If the port is set as output:
● SINGLE: Merging is disabled.
● HTP: Highest Takes Precedence function is enabled.
● LTP: Latest Takes Precedence function is enabled.
3. PROTOCOL: Choose between Art-Net and sACN.
4. FRAME RATE: Set the DMX data refresh rate. The frame rate can be set within the range 10–40 Hz,
in increments of 5 Hz. This setting is available only when the port is set as output.
5. NETWORK: Set the Art-Net/sACN network of the Net-2 Panel (0–255).
6. PRIMARY: Set the primary Art-Net/sACN universe dedicated to this port (0–255).
7. SECONDARY: Set the secondary Art-Net/sACN universe dedicated to this port (0–255). This option
is available only when the port is set as output and the DMX mode is set to HTP or LTP.
8. RESEND: The Net-2 Panel can send the merged signal back onto the network as a new universe.
This setting determines which universe to rebroadcast onto the network. This function is available
when the network of the port is set between 0–127. For the 128–255 network range this function is
disabled. This option is available only when the port is set as output and the DMX mode is set to
HTP or LTP.
04) Press the ENTER button to select the desired setting. The selection will be highlighted.
05) Press the UP/DOWN buttons to change the values.
06) Press the ENTER button to set the value.
