Net-2 Panel, 3-pin

2.1. DHCP IP

If you choose DHCP IP, the IP address of the device will be generated automatically by the network
server.

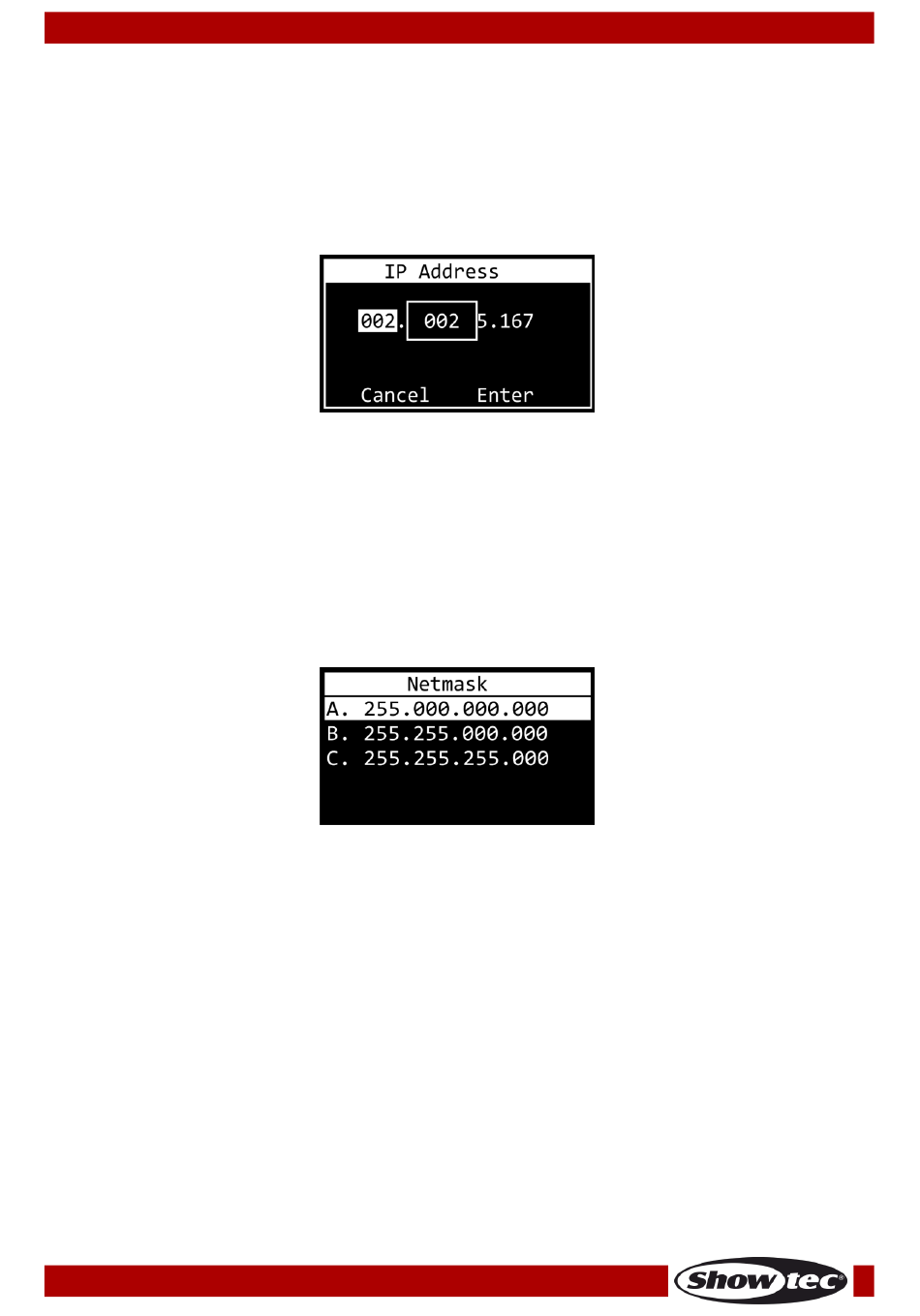

2.2. Manual IP

To configure the IP address of the device manually:
01) Press the UP/DOWN buttons to move the cursor respectively to the left or to the right on the display.
When the cursor reaches the last available position on the line, it will move to the second line.
02) Press the ENTER button to confirm the selection. The selected number will be highlighted.
03) Press the UP/DOWN buttons to change the number. The selection range is between 0 and 255.
Alternatively, press and hold down the UP/DOWN buttons for quick search.
04) Press the ENTER button to confirm.
05) Press the MENU button if you want to cancel and return to step 1.
06) Repeat steps 1 – 4 for each of the 4 sections.
07) Press the UP/DOWN buttons to select CANCEL (to discard changes) or ENTER (to confirm the IP
address).
08) Press the ENTER button to save the IP address.

3. Set Netmask

In this menu you can set the Netmask of the IP address.
01) Press the UP/DOWN buttons to scroll through the 3 options:
02) Press the ENTER button to confirm the selection.
Order code: 50812/50814
16
