Net-2 Panel, 3-pin

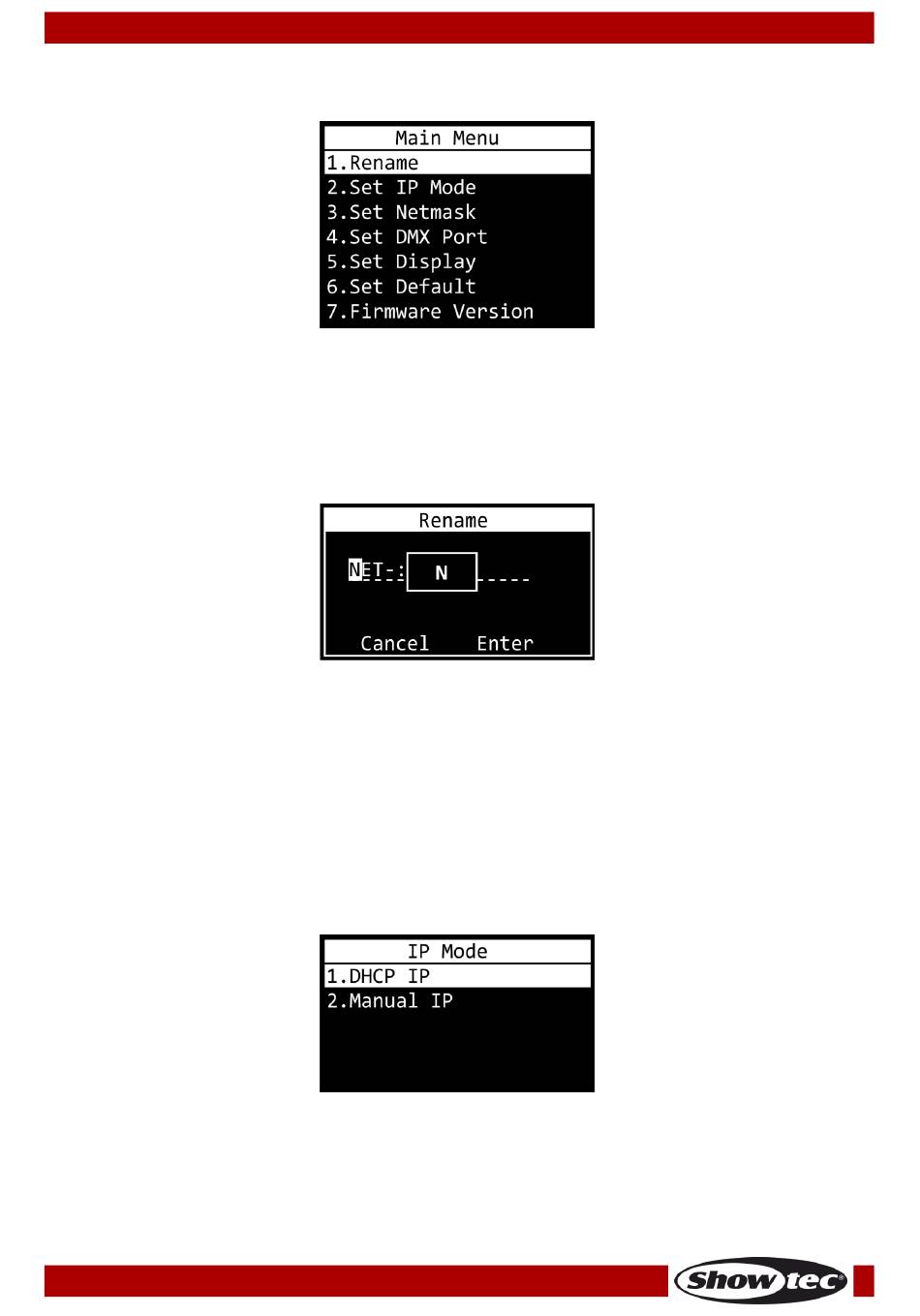

Main Menu Options
The Main Menu has the following options:
Press the UP/DOWN buttons to navigate through the Main Menu. Press the ENTER button to open the
submenu. Press the MENU button to return to the Main Menu.
1. Rename
In this menu you can change the name of the device.
01) Press the UP/DOWN buttons to move the cursor respectively to the left or to the right on the display.
When the cursor reaches the last available position on the line, it will move to the second line.
02) Press the ENTER button to confirm the selection. The selected character will be highlighted.
03) Press the UP/DOWN buttons to change the character. The available characters are lowercase and
uppercase letters, digits, punctuation marks, and some symbols.
04) Press the ENTER button to confirm.
05) Press the MENU button if you want to cancel and return to step 1.
06) Repeat steps 1–4 for each character of the name. The maximum length of the name is 16
characters.
07) Press the UP/DOWN buttons to select CANCEL (to discard changes) or ENTER (to confirm the new
name).
08) Press the ENTER button to confirm.
2. IP Mode
In this menu you can configure the IP address of the device.
01) Press the UP/DOWN buttons to toggle between the 2 options:
02) Press the ENTER button to confirm your choice.
Order code: 50812/50814
15
