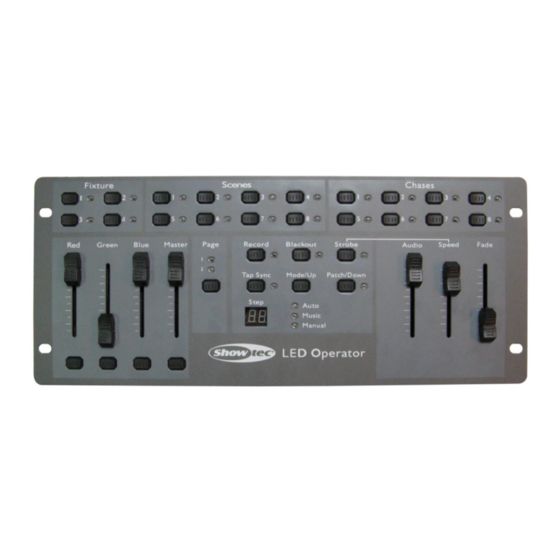

LED Operator 4
V2
ORDERCODE 50716

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Operator 4 and is the answer not in the manual?

Questions and answers

Related Manuals for SHOWTEC LED Operator 4

Summary of Contents for SHOWTEC LED Operator 4

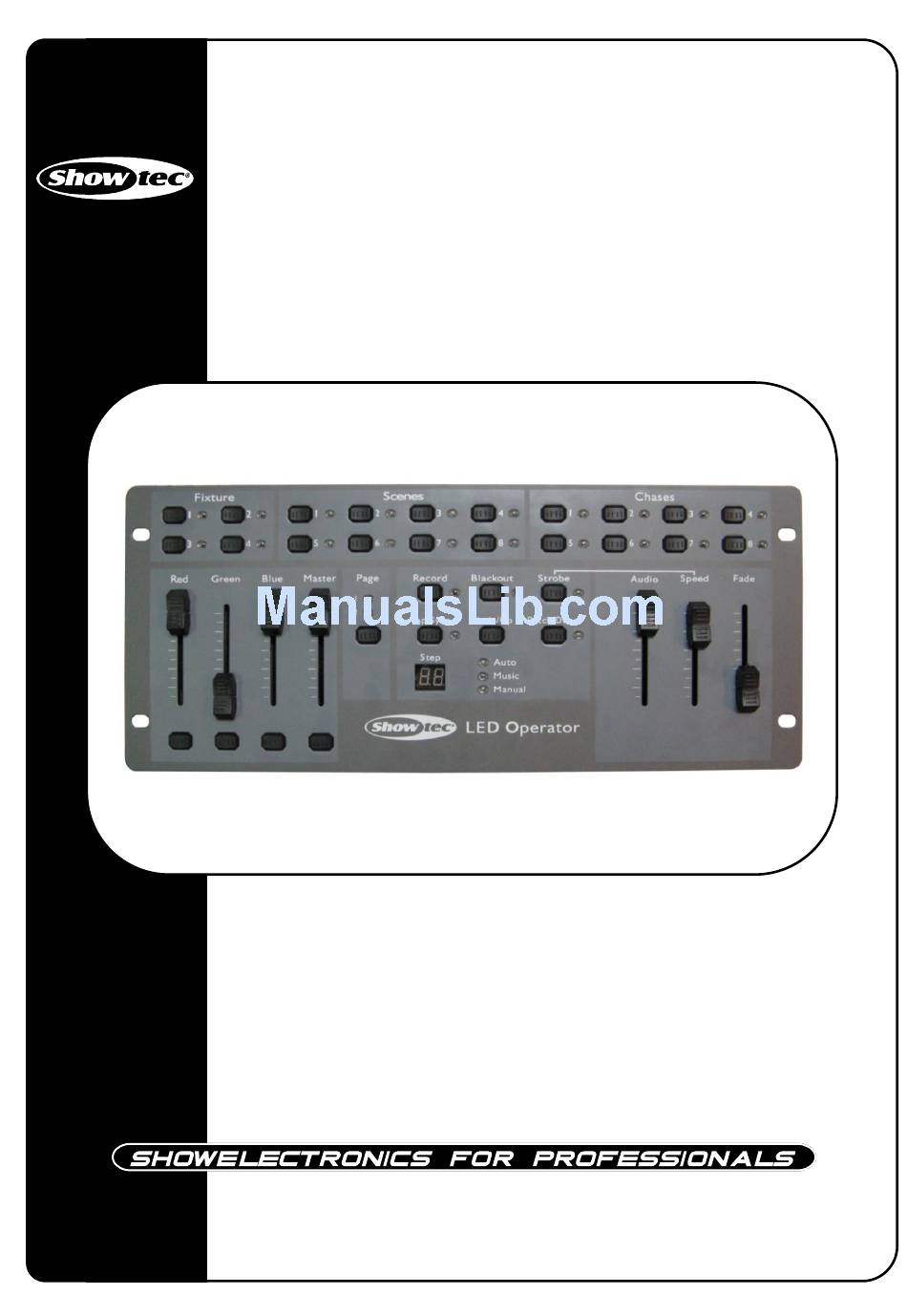

  • Page 1 LED Operator 4 ORDERCODE 50716...
  • Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!

  • Page 3: Table Of Contents

    Showtec Showtec LED Operator 4 Product Guide ™ Warning.................…...……………..…………………………….………..… Safety-instructions……………………………………………………………………………………………………….. Operating Determinations.……………………………………………………………………………………………. Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description..…................……….……………………………….…....Features…….……………………………………………………………………………………….……..…....Overview………………………………………………………………………………………………………....Controller front..............................Controller backside............................Installation................…...……………………………………..…....Set Up and Operation..............……..…………………………….…....Operation ……………...............……….…………………………....Channel Assignment............……………………..........Factory Reset….................…....………....... Unpatch Channels.....................………......Enter Program Mode..........................Exit Program Mode...................…....………....

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • LED Operator 4 • Incl. 2x 19” flaps and Power adapter • User manual...

  • Page 5: Operating Determinations

     If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 6: Return Procedure

    Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

  • Page 7: Description

    Description of the device Features LED Operator is a light controller from Showtec and features: • Easy to use • Control 4 RGB fixtures • Adjustable Speed control • Adjustable fade time • Free patchable RGB and dimmer channels • Power supply: AC 12V- 500mA •...

  • Page 8: Controller Front

    Controller Front Fig. 2 1) Fixture buttons and LED indicators 1-4: Use Fixture button 1-4 to select a fixture. 2) Scenes buttons and LED indicators 1-8: Push a scene button to activate a scene. 3) Chase buttons and LED indicators 1-8: Push a chase button to activate a chase. 4) Red Fader: Use the fader to manually set the intensity of the color red.

  • Page 9: Controller Backside

    Controller Backside Fig. 3 20) DMX Polarity Switch 21) DMX OUT 22) DC power 23) ON/OFF Installation Remove all packing materials from the LED Operator 4. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.

  • Page 10: Operation

    Operation For more information about working with the LED Operator 4, you can also view: Link: http://www.youtube.com/user/highliteholland Channel Assignment 1) Scene buttons 1-8 are DMX channels 1-8. 2) Press and hold the Patch/Down button for 3 seconds. The Patch LED will light up red.

  • Page 11: Record A Scene

    Record a Scene 1) Press and hold the Record button for 3 seconds to enter Program Mode. 2) Select the fixture you want to program by pressing the desired Fixture button. 3) Set the faders to the desired values. 4) Set the proper page by pressing the Page button. You can choose Page 1 or Page 2. 5) Press the Record button and then press the desired Scene button you want to record.

  • Page 12: Record A Chase

    Record a Chase 1) Enter Record Mode by pressing the Record button. 2) Select the proper Page by pressing the Page button. 3) Select the desired chase by pressing Chase button 1-8. 4) Select the desired fixture by pressing Fixture 1-4. 5) Set the faders to the desired values.

  • Page 13: Auto / Music /Manual Mode

    4. Check power from the wall, all cables, the settings, etc. 5. If all of the above appears to be O.K., plug the unit in again. 6. If nothing happens after 30 seconds, unplug the device. 7. Return the device to your Showtec dealer.

  • Page 14: Product Specifications

    Product Specification Model: Showtec LED Operator 4 Power supply: AC 12V- 500mA Power consumption: 20 Watt Power connector: Adapter (included) Easy to use Control 4 RGB fixtures Adjustable Speed control Adjustable fade time Free patchable RGB and dimmer channels 16 chases Chase can contain a max.
