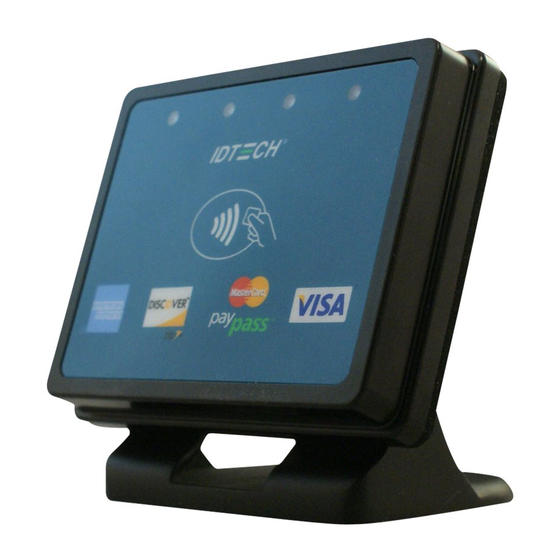

- Page 1 FCC ID:WQJ-IDCA-12X1 Operation Guidelines Xpress CM100 Reader...
- Page 2 Scope This document describes the operation guidelines of xpress reader for EMC test. This document answered four questions as below shows. How to install Xpress Reder. How to use Xpress Reader for EMC test How to install Xpress Reader please install the reader as these steps: 1.
- Page 3 Plug Power connector (C) to RS232 Cable power connector(e),...
- Page 4 4. Plug the AC-Adapter nto AC100~240V ,then Xpress reader can work.
- Page 5 How to use Xpress Reader After power on Xpress Reader and reader was connect with PC, then user could read any Paypass Magstripe card or Visa MSD Card. The operate steps: Now the Card in box is demo card which can be used for test. 1.
- Page 6 2.click the “Carrier ON ”,then the demo card can be tested.Put the card on Xpress reader. Change the “loop” number to 1000,then click the “WUPA” ,Data windows will show “04 00” If want to stop running ,you can click the “stop ”,if want to run continue ,then click The “start”buttom...
- Page 7 FCC I D: WQJ-IDCA-12X1 FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
