Scilogex SCI100-Pro User Manual page 13

Rotary Evaporator

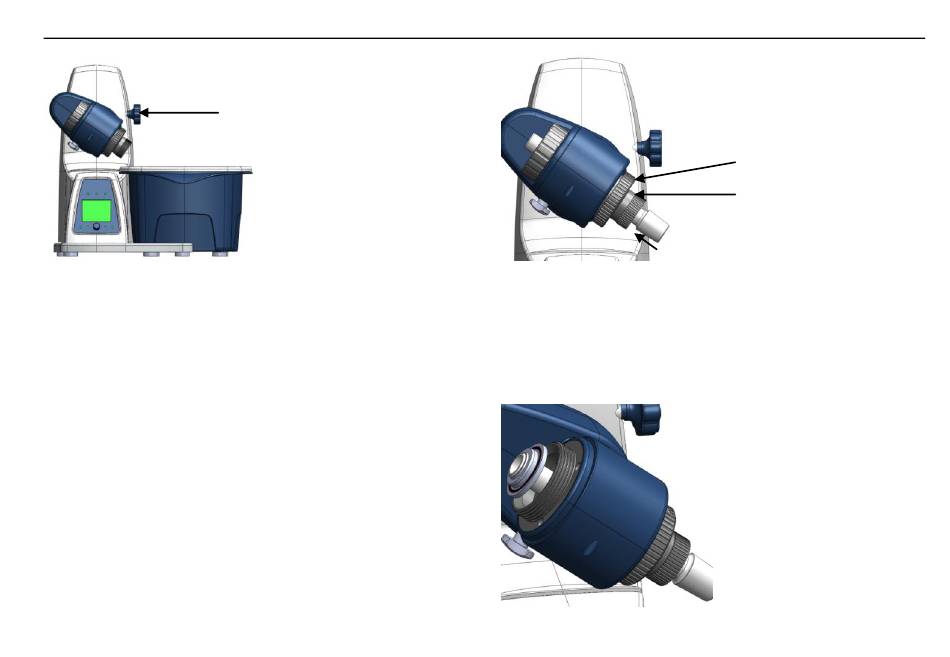

Figure 8
•
Open the locking device on the drive head by turning
it 60° counter clockwise (e), (Figure 9).
•
Feed the steam pipe in until it stops.
•
Then lock the locking device by turning it clockwise
by 60° .
•
The plastic screw nut (f) helps loosen tight-fitting
piston ground-in connections (Figure 9).
-
Hold the tight-fitting evaporator piston and
counter clockwise (e), and then turn the plastic
screw nut (f) until the evaporator piston neck.
d
Figure 9
Note: Prior to commissioning, hand-tighten the plastic
screw nut (f) left-aligned.
•
Installing condenser seal (Figure 10 and Figure 11).
Figure 10
11
e
f
