F. OPERATING CONTROLS:
The "basic" PAR-3-HE gas fryer is equipped with an Electronic Thermostat and Default-to-Manual-Restart (DTMR) control;

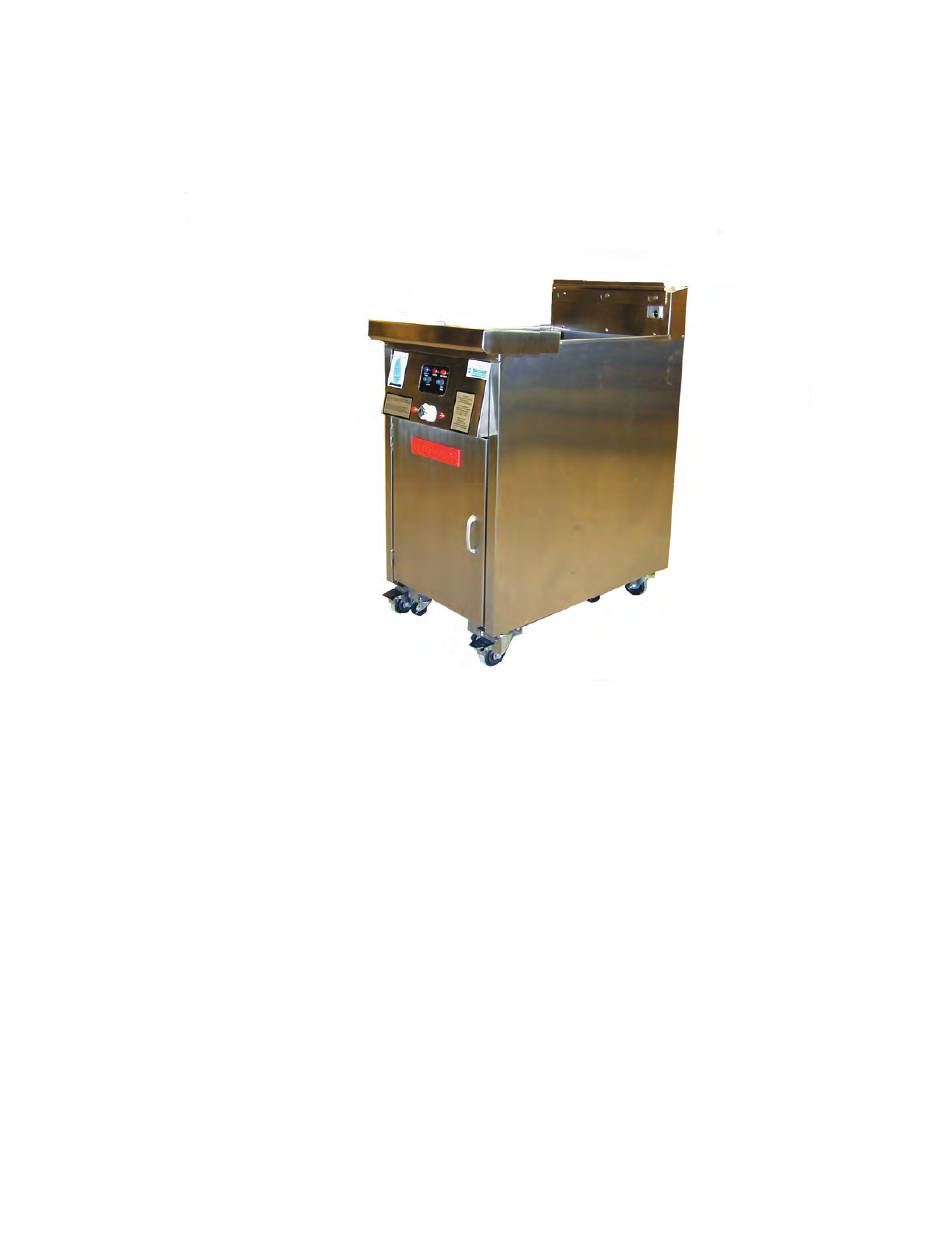

However customers may request the fryer be equipped with an "optional" Ultrastat Cooking Computer, such as an Ultrastat 11,21
or 25 Cooking Computer shown below. When applicable, operating instructions for the Ultrastat Cooking Computer will be
provided with the fryer. Operating controls on the Model PAR-3-HE gas fryer include the Toggle ON/OFF Switch, AMBER Power
Indicator Lamp, RED Burner Indicator Lamp, and the applicable Temperature Controller. These controls are mounted on the
Temperature Control Access Panel; and the Electronic Thermostat and other fryer controls are located behind the access door. The Control Access Panel; and the Electronic Thermostat and other fryer controls are located behind the access door. The
main drain valve and shortening return levers are located behind the Service Access Panel. These controls were identified in the main drain valve and shortening return levers are located behind the Service Access Panel. These controls were identified in the
illustrations shown on the previous page. illustrations shown on the previous page.
G. AUTOMATIC SAFETY FEATURES:
1. High limit thermostat to shut off gas to the main burners by opening a solenoid-actuated safety valve in the combination gas
control valve.
2. Combination gas control valve which includes a built-in pressure regulator and manual valve.
3. Sensing circuit within the spark ignitor module to turn gas to the fryer OFF if a burner FLAME OUT occurs.
A Drain Valve Safety Switch and a Default-to-Off circuit in the Default-to-Manual-Restart (DTMR) Control that will DIS-
4.
ABLE the fryer each time the drain valve is OPENED.
5. An AIR PRESSURE switch to open the electrical circuit to the spark ignitor and gas valve which will turn the gas to the fryer
OFF in the event the blower motor fails.
H. RATING PLATE:
Information on this plate includes the model and serial number; BTU/HR input rating of the burners; gas manifold pressure in
inches W.C. ; minimum inlet gas required, orifice size; and type of gas. This data is essential for proper identification when comm-
nicating with ULTRAFRYER SYSTEMS or requesting special parts or information. The rating plate is located on the inside of the
Service Access door.
THE FRYER MUST BE CONNECTED ONLY TO THE TYPE OF GAS IDENTIFIED ON THIS RATING PLATE!
