F. DEFAULT-TO-MANUAL-RESTART (DTMR) CONTROL: The "basic" Model PAR-3-HE gas fryer is equipped with a Default-to-
Manual-Restart (DTMR) Control. This control contains a Default-to-Off electrical circuit that DISABLES a fryer any time the
drain valve is OPENED, and a Default-to-Melt electrical circuit which automatically places a fryer in a shortening MELT MODE
to gradually and SAFELY melt shortening each time a fryer is truned ON and the START BUTTON is drepressed on the DTMR
control. The Default-to-Manual-Restart Control is intended to avoid "operator errors" that can result is DRY FIRING a fryer caus-
ing shortening to be scorched, heat exchanger damage and/or a vat fire.

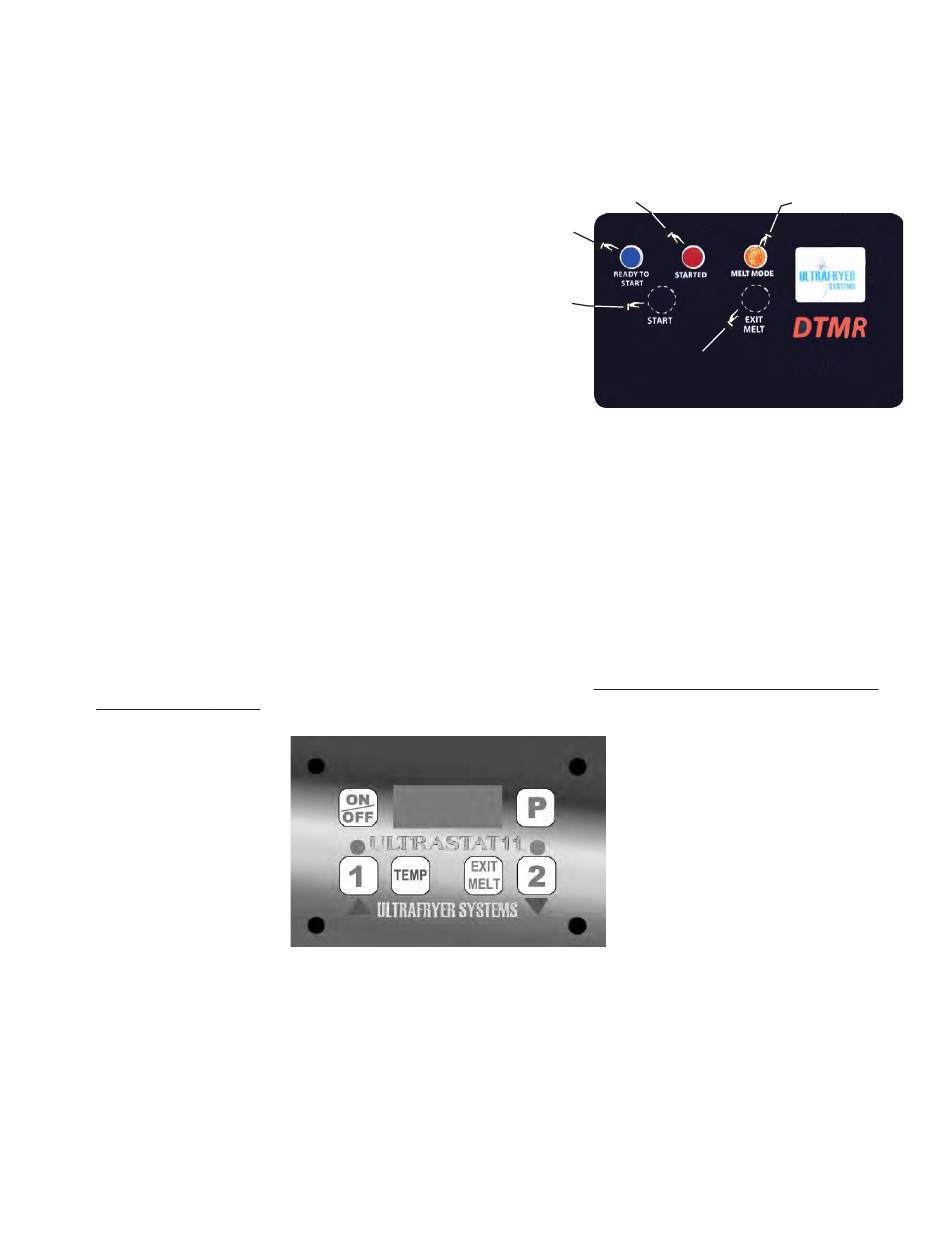

DTMR CONTROL PANEL
BLUE READY TO START LAMP - When lit indicates the power on/off
switch is in the ON position, the drain valve is CLOSED, and the fryer is
ready to operate.
START BUTTON - When this button is momentarily depressed, it places
the fryer in operation.
RED STARTED LAMP - When lit indicates the START BUTTON has been
momentarily depressed and the fryer is operating.
AMBER MELT MODE LAMP - When lit indicates the MELT CYCLE TIMING MODULE in the Default-To-Melt circuit is cycling
the fryer Heat System ON for twelve (12) seconds and OFF for 28 seconds to safely heat shortening.
EXIT MELT BUTTON - When this button is momentarily depressed the MELT CYCLE TIMING MODULE in the Default-To Melt
circuit will switch to the FULL ON position allowing the electronic thermostat to heat shortening to its pre-set temperature.
G. OPTIONAL CONTROLS : The Model PAR-3-HE gas fryers may be equipped with an Ultrastat Model 11, 21, or 25 Cooking Com-
puter as described below:
1. ULTRASTAT 11 COOKING COMPUTER: Some Model PAR-3-HE-3 gas fryers are equipped with an Ultrastat 11 Cooking
Computer which is connected to the fryer's electrical system to serve as its thermostat as well as providing heat control, status
information and product cook timer. When the computer is in operation it will DISABLE the fryer if the drain valve is
OPENED. Operation of the Ultrastat 11Cooking Computer is covered in the Ultrastat 11 Ultrafryer Computer Operating
Instrutctions PN 30A053 provided with Fryers equipped with that Cooking Computer.
��� ������� ����
���� �����
�� �����
����
�����
������
