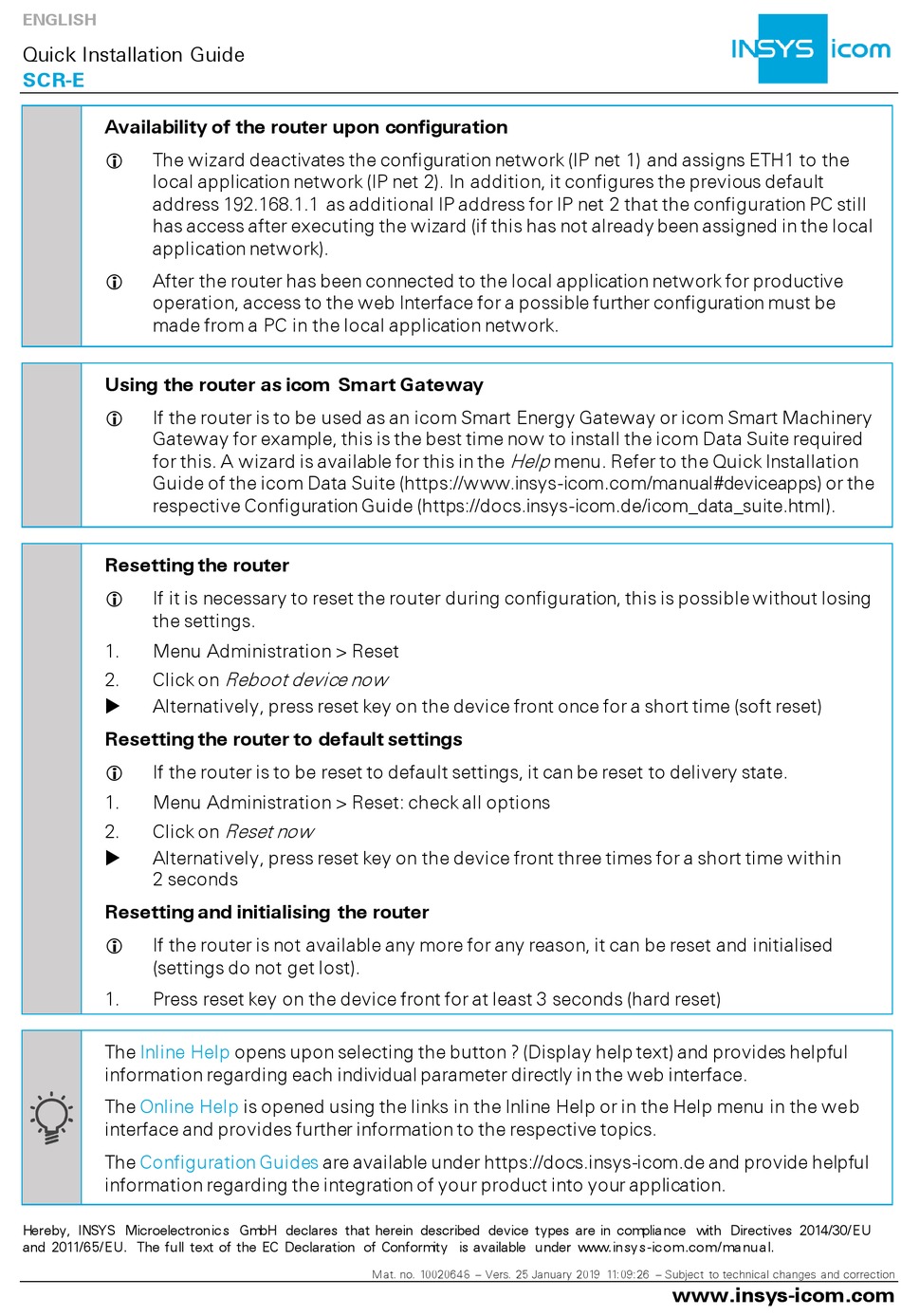

Quick Installation Guide
SCR-E
Availability of the router upon configuration

The wizard deactivates the configuration network (IP net 1) and assigns ETH1 to the
local application network (IP net 2). In addition, it configures the previous default
address 192.168.1.1 as additional IP address for IP net 2 that the configuration PC still
has access after executing the wizard (if this has not already been assigned in the local
application network).

After the router has been connected to the local application network for productive
operation, access to the web Interface for a possible further configuration must be
made from a PC in the local application network.
Using the router as icom Smart Gateway

If the router is to be used as an icom Smart Energy Gateway or icom Smart Machinery
Gateway for example, this is the best time now to install the icom Data Suite required
for this. A wizard is available for this in the
Guide of the icom Data Suite (https://www.insys-icom.com/manual#deviceapps) or the
respective Configuration Guide (https://docs.insys-icom.de/icom_data_suite.html).
Resetting the router

If it is necessary to reset the router during configuration, this is possible without losing
the settings.
1. Menu Administration > Reset
2. Click on

Alternatively, press reset key on the device front once for a short time (soft reset)
Resetting the router to default settings

If the router is to be reset to default settings, it can be reset to delivery state.
1. Menu Administration > Reset: check all options
2. Click on

Alternatively, press reset key on the device front three times for a short time within
2 seconds
Resetting and initialising the router

If the router is not available any more for any reason, it can be reset and initialised
(settings do not get lost).
1. Press reset key on the device front for at least 3 seconds (hard reset)
The Inline Help
information regarding each individual parameter directly in the web interface.
The Online Help
interface and provides further information to the respective topics.
The Configuration Guides
information regarding the integration of your product into your application.
Hereby, INSYS Microelectronic s GmbH declares that herein described device types are in complia nce with Directives 2014/30/EU
and 2011/65/EU. The full text of the EC Declaration of Conformity is available under www.insy s-ic om.com/ma nua l.
Reboot device now
Reset now
opens upon selecting the button ? (Display help text) and provides helpful
is opened using the links in the Inline Help or in the Help menu in the web
are available under https://docs.insys-icom.de and provide helpful
