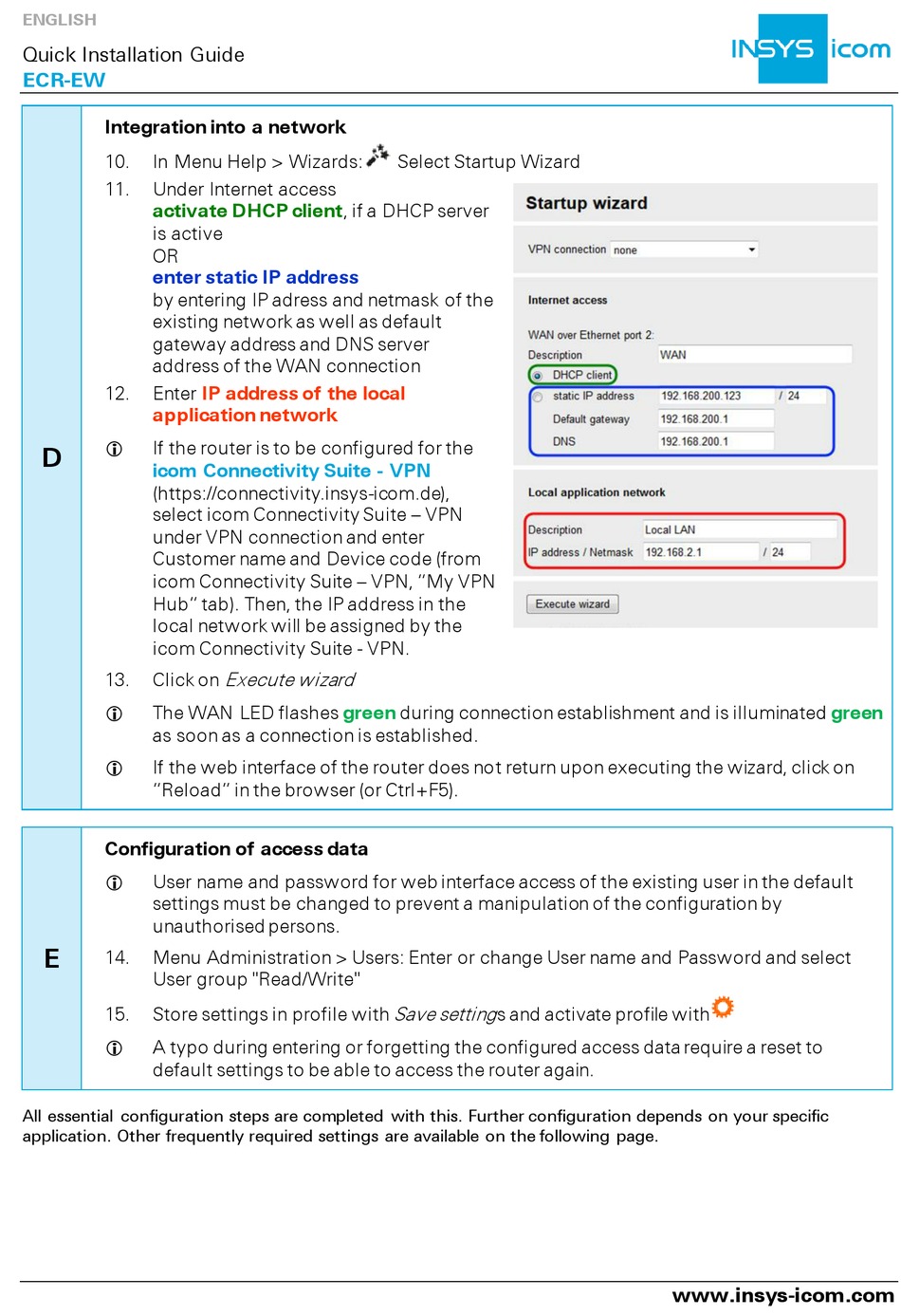

insys icom ECR-EW300 Quick Installation Manual page 3

ENGLISH
Quick Installation Guide
ECR-EW
Integration into a network
10. In Menu Help > Wizards:
11. Under Internet access
activate DHCP
is active
OR
enter static IP address
by entering IP adress and netmask of the
existing network as well as default
gateway address and DNS server
address of the WAN connection
12. Enter
application network

If the router is to be configured for the
D
icom Connectivity Suite - VPN
(https://connectivity.insys-icom.de),
select icom Connectivity Suite – VPN
under VPN connection and enter
Customer name and Device code (from
icom Connectivity Suite – VPN, "My VPN
Hub" tab). Then, the IP address in the
local network will be assigned by the
icom Connectivity Suite - VPN.
13. Click on

The WAN LED flashes
as soon as a connection is established.

If the web interface of the router does not return upon executing the wizard, click on
"Reload" in the browser (or Ctrl+F5).
Configuration of access data

User name and password for web interface access of the existing user in the default
settings must be changed to prevent a manipulation of the configuration by
unauthorised persons.
E
14. Menu Administration > Users: Enter or change User name and Password and select
User group "Read/Write"
15. Store settings in profile with

A typo during entering or forgetting the configured access data require a reset to
default settings to be able to access the router again.
All essential configuration steps are completed with this. Further configuration depends on your specific
application. Other frequently required settings are available on the following page.
client, if a DHCP server
IP address of the local
Execute wizard
green
Select Startup Wizard
during connection establishment and is illuminated
Save setting
s and activate profile with
green
