3) DIDO and Audio Connection
Please refer to the definition of the terminal blocks below. It is also
printed on the motherboard.

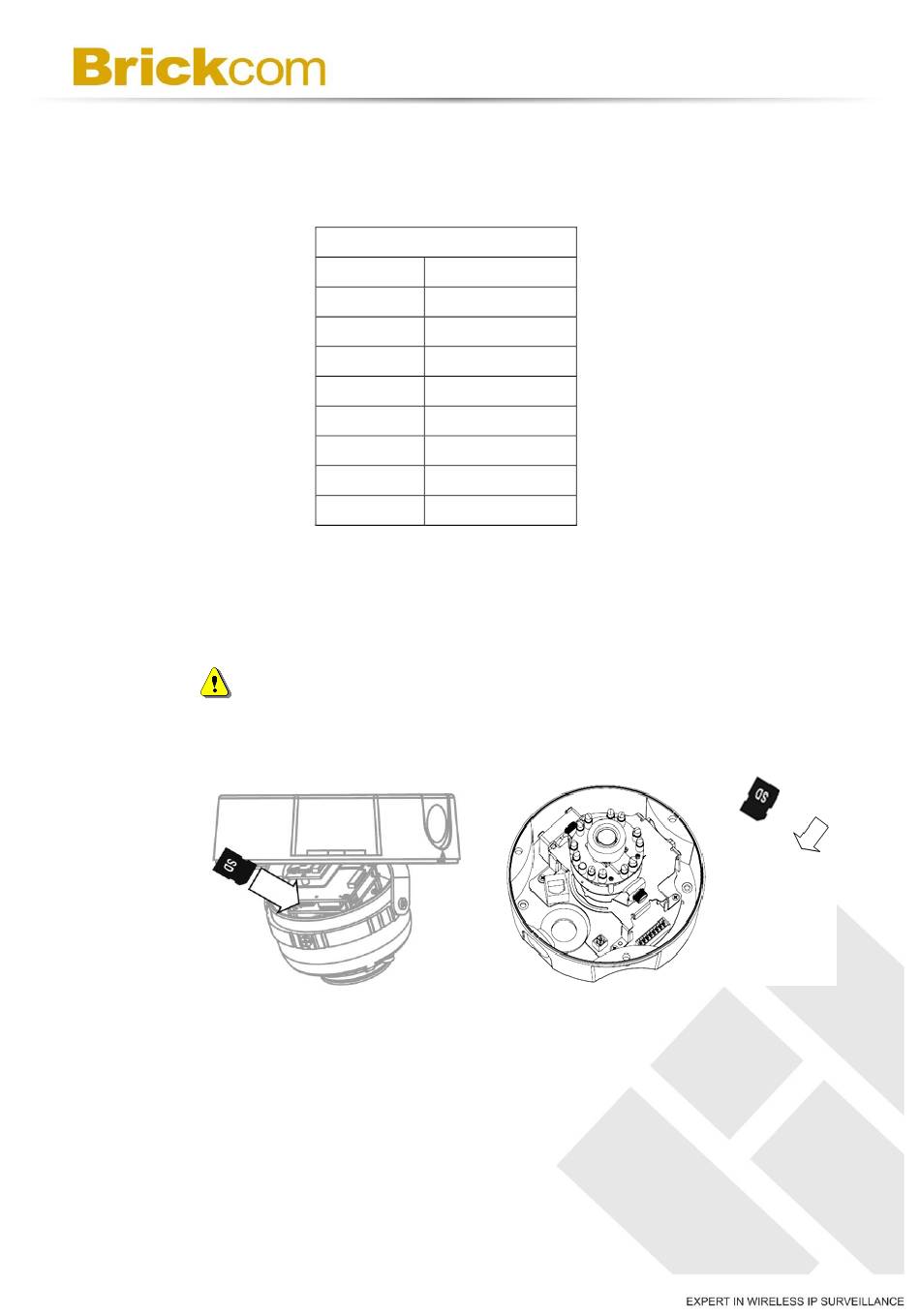

ll. For SD/SDHC/SDXC card (*) installation:
NOTE – The SD/SDHC/SDXC card is not included in the product
package and needs to be purchased separately.
B. For wall installation:
1) Chose the location on the wall to place the camera. Attach the
location sticker to the desired spot.
2) Drill fours holes through the center of the four location holes on the
sticker.
Terminal Block
Pin No.
Function
Pin 1
5V
Pin 2
D_0
Pin 3
D_I
Pin 4
DIDO GND
Pin 5
Audio OUT
Pin 6
DGND
Pin 7
Mic/Line in
Pin 8
DGND
