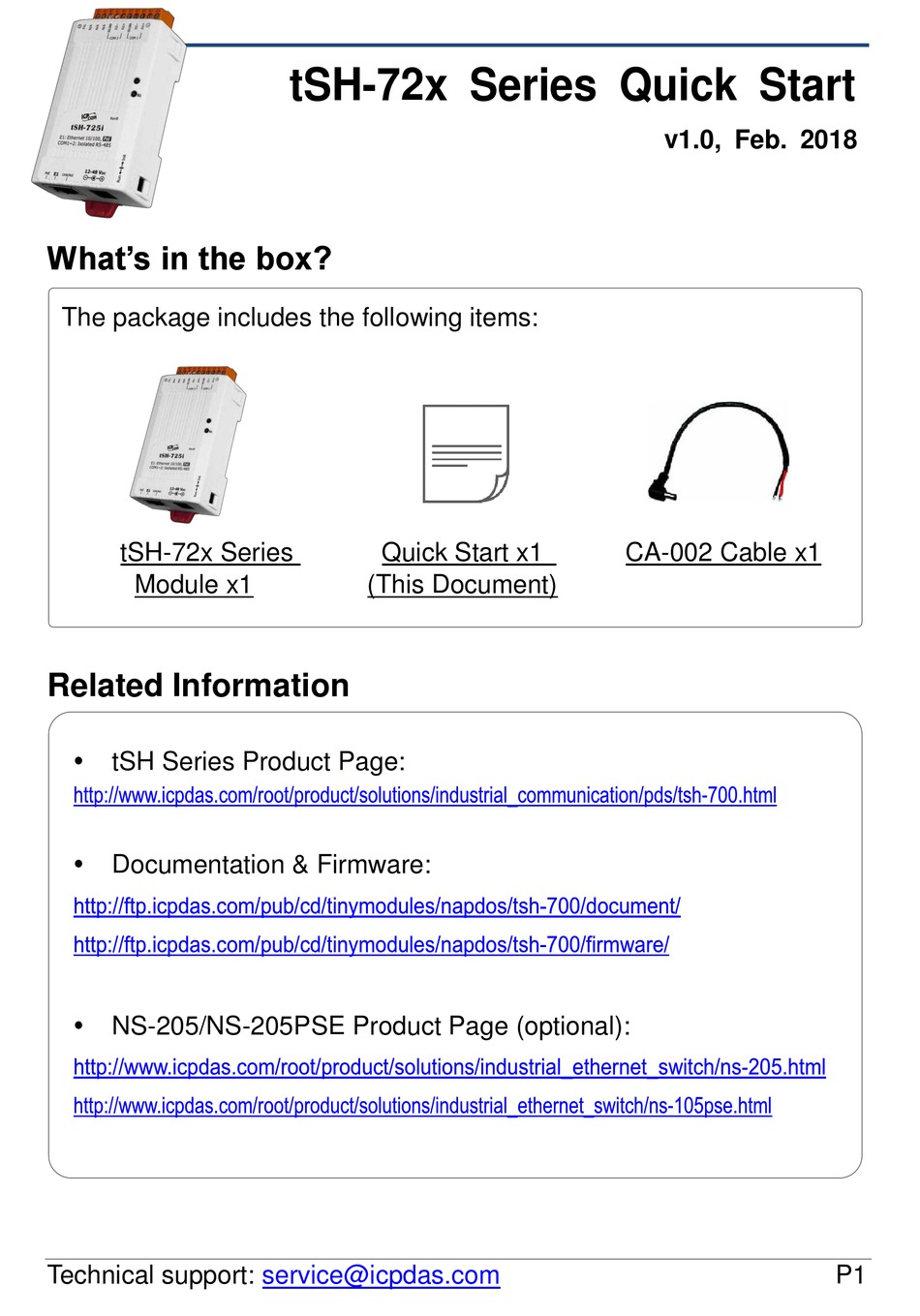

What's in the box?
The package includes the following items:

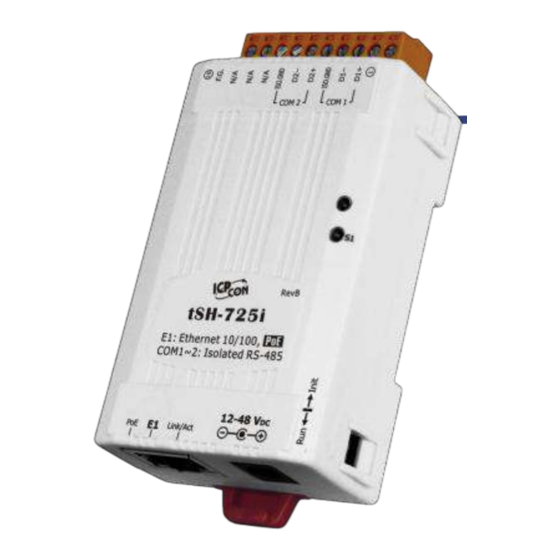

tSH-72x Series
Module x1
Related Information
tSH Series Product Page:
Documentation & Firmware:
NS-205/NS-205PSE Product Page (optional):
Technical support:
tSH-72x Series Quick Start
Quick Start x1
(This Document)
service@icpdas.com
v1.0, Feb. 2018
CA-002 Cable x1
P1
Advertisement
Table of Contents
Related Manuals for ICP DAS USA tSH-72 Series
Summary of Contents for ICP DAS USA tSH-72 Series
- Page 1 tSH-72x Series Quick Start v1.0, Feb. 2018 What’s in the box? The package includes the following items: tSH-72x Series Quick Start x1 CA-002 Cable x1 Module x1 (This Document) Related Information tSH Series Product Page: Documentation & Firmware: ...
- Page 2 Connecting the Power and Host PC Make sure your PC has workable network settings. Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on Chapter 4 may not work. (Please contact with your system Administrator) Connect both the tSH-72x and your PC to the same sub network or the same Ethernet switch.
- Page 3 Installing Software on Your PC Install eSearch Utility, which can be obtained from the web site: http://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/esearch/ Connecting the Master and Slave Devices 1) Connect the serial port of PC (Master) to COM2 on the tSH-72x (e.g., tSH-724). 2) Connect the Modbus device (Slave, e.g., M-7022, optional) to COM1 on the tSH-72x (e.g., tSH-724).
- Page 4 Configuring Network Settings 1) Double click the eSearch Utility shortcut on the desktop. 2) Click the “Search Servers” button to search your tSH-72x. 3) Double click the name of tSH-72x to open the “Configure Server (UDP)” dialog box. ...
- Page 5 5) Wait 2 seconds and click “Search Servers” button again to ensure the tSH-72x is working well with new configuration. 6) Click the name of tSH-72x to select it. 7) Click the “Web” button to log in to the web configuration pages. (Or enter the URL address of the tSH-72x in the address bar of the browser.) ...
- Page 6 1) Enter the password (use the default password “admin”) in the Login Use the default password field and click password: admin the “Submit” button. 2) Click the “Application Mode” tab to display the Application Mode Settings page. 3) Check the “Mode 2: Modbus Converter” option. 4) Select the M-7022 (slave device) connected to COM port of the tSH-72x (e.g.
- Page 7 Configuring the Serial Port 1) Click the “Port1” tab to display the Port1 Settings page. 2) Select the appropriate Baud Rate and Data Format settings depending on the M-7022 (Slave) from the relevant drop down options. (e.g. Baud Rate: 115200 and Data Format: 8, None, 1) 3) Click the “Submit”...
- Page 8 Self-Test 1) In the eSearch Utility, select the “Modbus RTU Master” item from the “Tools” menu to open the Modbus RTU Master Utility. 2) In the Modbus RTU Modbus Utility, select your COM port, Baud Rate and Data Format (e.g. COM1/9600/N,8,1) on the PC (Master) and then click the “Open” button in the “COM status”...
