ICP DAS USA tSH-700 Series Firmware Update

Hide thumbs Also See for tSH-700 Series:

Advertisement

Quick Links

Download this manual
S
UPPORT

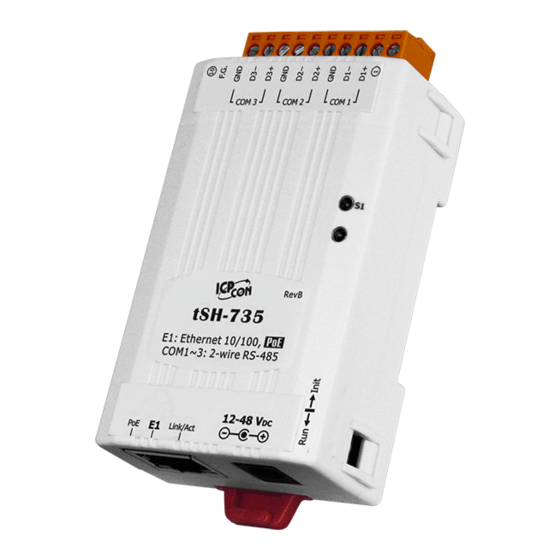

Models supported include tSH-722, tSH-732, tSH-725,
tSH-735, tSH-724, tSH-734, tSH-722i, tSH-732i, tSH-725i,
tSH-735i, tSH-724i and tSH-734i.
W
ARRANTY
All products manufactured by ICP DAS are warranted
against defective materials for a period of one year from
the date of delivery to the original purchaser.
W
ARNING
ICP DAS assumes no liability for damages consequent to
the use of this product. ICP DAS reserves the right to
change this manual at any time without notice. The
information furnished by ICP DAS is believed to be
accurate and reliable. However, no responsibility is
assumed by ICP DAS for its use, nor for any
infringements of patents or other rights of third parties
resulting from its use.
C
OPYRIGHT
Copyright © 2017 by ICP DAS. All rights are reserved.
T
RADEMARKS
Names are used for identification purposes only and
may be registered trademarks of their respective
companies.
C
U
ONTACT
S
If you have any questions, please feel free to contact us
via email at:
service@icpdas.com
or
service.icpdas@gmail.com
tSH-700 Series
Firmware Update via Ethernet
Version: 1.2/Updated: Jun. 2017
Ch. 0. How to identify your tSH-700 type
Ch. 1. Setting up the tSH-700
Ch. 2. Firmware Update Procedure
Ch. 3. Troubleshooting
Ch. 4. Additional Information
ICP DAS CO., LTD.
Website: http://www.icpdas.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the tSH-700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA tSH-700 Series

Summary of Contents for ICP DAS USA tSH-700 Series

  • Page 1 UPPORT tSH-700 Series Models supported include tSH-722, tSH-732, tSH-725, tSH-735, tSH-724, tSH-734, tSH-722i, tSH-732i, tSH-725i, Firmware Update via Ethernet tSH-735i, tSH-724i and tSH-734i. ARRANTY Version: 1.2/Updated: Jun. 2017 All products manufactured by ICP DAS are warranted against defective materials for a period of one year from Ch.
  • Page 2 (the module name is not “RevB”), please download “tSH700fw_vxxx_xxxxxx.zip” firmware file to update, as following figures illustrate: RevB Module Name: tSH-700 Firmware file: tSH700_RevBxxx_xxxxxx.zip Module Name: tSH-700 Firmware file: tSH700fw_vxxx_xxxxxx.zip tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 1...
  • Page 3 Refer to “Chapter 5-Configuring the Correct Network Settings” in the tSH-700 Quick Start Guide. If the IP address settings do not work correctly, refer to note1 (Page 19) below. Download the Quick Start Guide. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 2...

  • Page 4: Firmware Update Procedure

    Right click the name of the tSH-700 module to be updated. Step 3: Select the “Firmware Update” item from the popup menu and the “Open” dialog box will be displayed. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 3...
  • Page 5 MAC address is assigned, refer to note 2 (Page 19) and note 3 (Page 20) below for more details. Step 6: Click the “OK” button. Valid IP Address Factory-default MAC Address tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 4...
  • Page 6 If these addresses do not match, the update cannot proceed. Refer to note4 (Page 19) below for more details. Waiting for a request from this MAC Address Request received from this MAC Address Firmware update begins tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 5...
  • Page 7 Step 14: Click the name of the tSH-700 module to highlight it. Step 15: Click the “Web” button and the default web browser will be opened. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 6...
  • Page 8 Step 16: Log in to the web configuration pages for the tSH-700 (use the default password “admin”). Step 17: Verify that the version and date details for the firmware are correct. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 7...

  • Page 9: Remote Firmware Update

    Right click the name of the tSH-700 module to be updated. Step 3: Select the “Firmware Update” item from the popup menu and the “Open” dialog box will be displayed. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 8...
  • Page 10 MAC address is assigned, refer to note 2 (Page 19) and note 3 (Page 20) above for more details. Step 6: Click the “OK” button. Valid IP Address Factory-default MAC Address tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 9...
  • Page 11 Step 8: Open a web browser such as Internet Explorer or Firefox and enter the URL for the tSH-700 in the address bar of the browser and log in to the web configuration pages (use the default password “admin”). tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 10...
  • Page 12 Request received from this MAC Address Firmware update begins Note: If the Remote Firmware Update method fails, please refer to Section 3.1 Firmware update in BOOT mode (local operation) to restore the module. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 11...
  • Page 13 Step 16: Log in to the web configuration pages for the tSH-700 (use the default password and “admin”). Step 17: Verify that the version and date details for the firmware are correct. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 12...

  • Page 14: Troubleshooting

    Note, the module sends BOOTP messages about 5 seconds when booting in Init Mode. If this step is not successful, reboot the module and execute the search again. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 13...
  • Page 15 User has to assign a valid IP manually in step 5 of page Step 6: After updating the firmware, disable BOOTP mode in the eSearch utility by unchecking the “BOOTP” item from the “Server” menu. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 14...
  • Page 16 Step 2: Double click the name of tSH-700 to open the “Configure Server (UDP)” dialog box. Step 3: Select the “1: ON” option from the “DHCP:” drop-down menu and click the “OK” button. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 15...
  • Page 17 Step 5: Refer to “Chapter 2-Firmware Update Procedure” for details of how to complete the update process. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 16...
  • Page 18 “DHCP:” drop-down menu. Step 4: Contact your Network Administrator to obtain a correct network configuration (such as IP Address/Sub-net Mask/Gateway). Enter the network settings and click the “OK” button. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 17...
  • Page 19 Step 6: Refer to “Chapter 2-Firmware Update Procedure” for details of how to complete the update process. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 18...

  • Page 20: Additional Information

    If the firmware update fails, simply execute the update procedure again in BOOTP mode, as described in Chapter 3, and the update should be successful. The tSH-700 series obtains the IP address assigned by the user and retrieves the firmware image through the utility program.
  • Page 21 Note 5: The Bootstrap Protocol (BOOTP) is defined in RFC-951 and uses UDP ports 67 and 68. Note6: The Trivial File Transfer Protocol (TFTP) is defined in RFC-1350 and uses UDP port 69. tSH-700 Series Firmware Update via Ethernet (Ver. 1.2/Jun. 2017) Page: 20...
