For tM-752N Series
English/ Dec. 2011/ Version 1.0

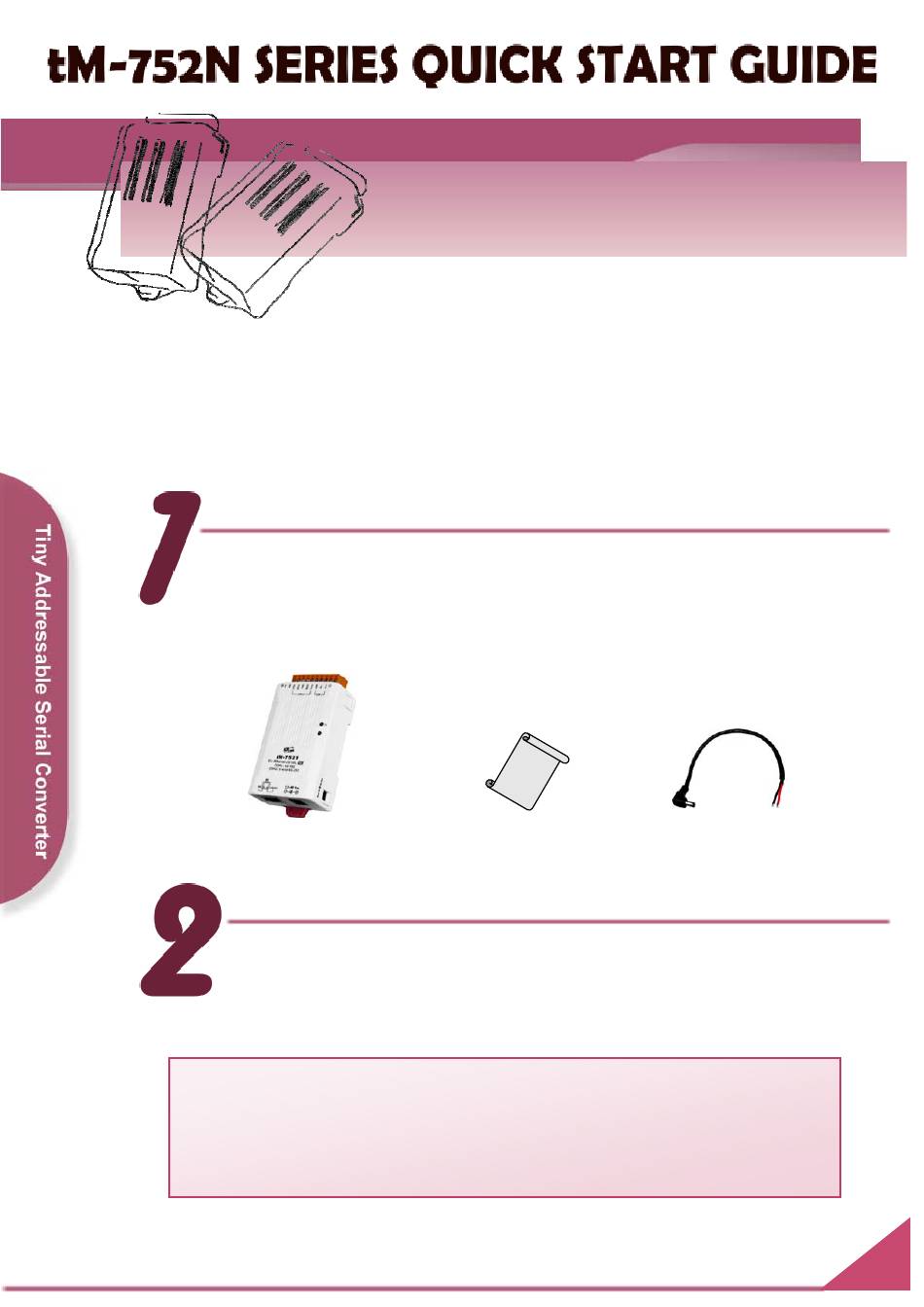

What's in the shipping package?
The package includes the following items:
tM-752N series
Quick Start Guide
DC Connector
(This Document)
Power cable
Connecting the Power and Host PC
Prepare for device:
• NS-205PSE or NS-205 (optional): Ethernet Switch/Hub.
•
tM-7561 (optional): USB to RS-485 Converter.
1
tM-752N Series Quick Start Guide
Advertisement
Related Manuals for ICP DAS USA tM-752N Series
Summary of Contents for ICP DAS USA tM-752N Series
- Page 1 The package includes the following items: tM-752N series Quick Start Guide DC Connector (This Document) Power cable Connecting the Power and Host PC Prepare for device: • NS-205PSE or NS-205 (optional): Ethernet Switch/Hub. • tM-7561 (optional): USB to RS-485 Converter. tM-752N Series Quick Start Guide...
- Page 2 1. Check Init/Run switch is on Run position. 2. Connect both the tM- 752N and your computer to the same sub network or the same Ethernet Switch, and power the tM- 752N on. tM-752N Series Quick Start Guide...
- Page 3 Test your tM-752N: 1. Execute the “Terminal.exe”. The Terminal.exe is located at: http://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/ 2. Check that the configuration of the COM Port is correct and then click the “Open COM” button. (Default Settings: 115200,8,N,1) Double-Click Click tM-752N Series Quick Start Guide...
- Page 4 Step 3: Retrieve the Module Name of the tM-752N module Type the command $02M Check that the module returns !027522 Step 4: Retrieve the Module Name of the tM-752N module Type the command $00M Check that the module returns (No response) tM-752N Series Quick Start Guide...
-
Page 5: Configuring Ethernet Settings
6. Contact your Network Administrator to obtain a correct network configuration (such as IP/Mask/Gateway). Enter the network settings and then click “OK”. The tM-752N will use the new setting 2 seconds later. Assign a new IP address tM-752N Series Quick Start Guide... - Page 6 8. Click the “Web” button to link the tM-752N web server. 2. Click your tM-752N on the list 1. Click 3. Click 9. Enter the password and click the “Submit” button to enter the configuration web page. (The factory default password: admin) tM-752N Series Quick Start Guide...
-
Page 7: Related Information
10. Besides the DCON command, you can configure all settings via web browser. Related Information tM-752N Series Product page: http://www.icpdas.com/products/Industrial/pds/tM-752N.htm tM-752N Documentations: CD:\Napdos\tM-752N\document\ http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tM-752N/document/ tM-752N firmware: CD:\Napdos\tM-752N\Firmware\ http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tM-752N/firmware/ NS-205PSE, NS-205 and tM-7561 page (optional): http://www.icpdas.com/products/Switch/industrial/ns-205.htm http://www.icpdas.com/products/Switch/industrial/ns-205pse.htm http://www.icpdas.com.tw/product/solutions/industrial_communication/converter/tm- 7561.html ICP DAS Web Site: http://www.icpdas.com Contact Us (E-Mail): service@icpdas.com , service.icpdas@gmail.com...
